STEP FOUR
———————
ROUGH IN WIRING
• 18 AWG or similar wire is recommended for all 24 V (ac) wiring.
• All wires are to be stripped to ¼” (6mm) to ensure proper connection to the timer.
• Run wires from the 24 V (ac) power to the timer. Use a clean power source to ensure proper operation.
• Run wires from the device to be controlled back to the timer.
STEP FIVE
———————
WIRING THE TIMER
24 V (ac) Power
Connect the 24 V (ac) power to the R and C terminals (1 and 2) of
the timer. This connection provides power to the microprocessor and
display of the timer.
Relay
The Relay terminals (3 and 4) are an isolated output. There is no power
available on these terminals from the timer. This circuit can operate a
low current 24 V (ac) device directly or an external relay to enable a
line voltage or high current device.

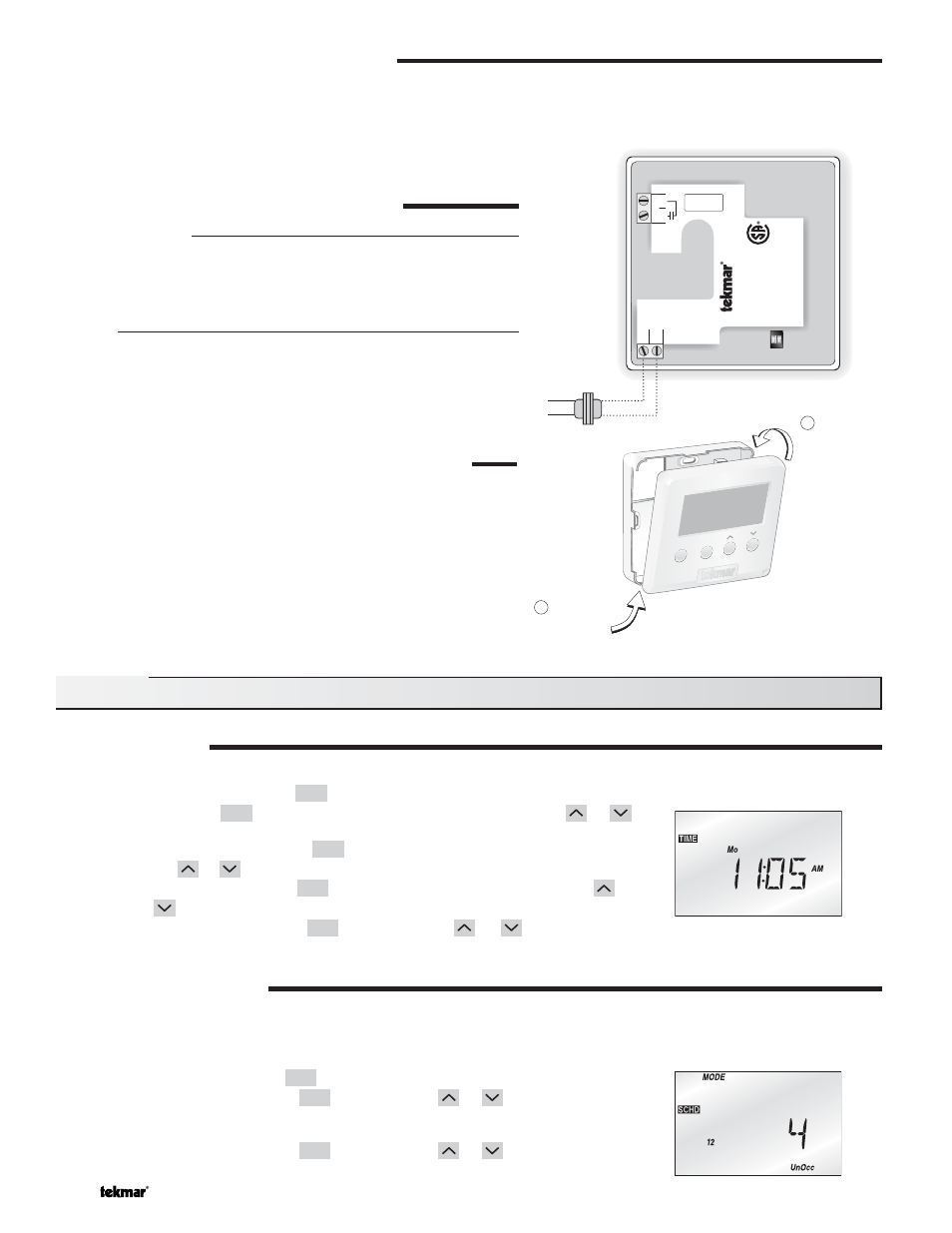

STEP SIX
——————
INSTALLING THE FRONT COVER
Align the hinges on the bottom of the front cover with the bottom of the
timer mounting base. Pivot the front cover around the bottom hinges and
push the top against the mounting base until it snaps firmly in place.
Pivot front
cover around
bottom hinges
Align hinges
on bottom
of front cover
1
2
Menu
Item
SETTING THE TIME
To set the time of day and the day of week, use the following procedure.
Step One: Press and release the Menu button until the Time Menu is reached.
Step Two: Press the Item button. While the minutes are flashing, use the or
button to set the proper minutes.
Step Three: Press and release the Item button. While the hours are flashing, use
the or button to set the proper hour.
Step Four: Press and release the Item button. While the day is flashing, use the or
button to set the proper day.
Step Five: Press and release the Item button. Use the or button to select
between 12 and 24 hour time.
SETTING THE SCHEDULES
A schedule allows the timer to automatically change between several preset events based on the time of day. The schedule divides
the day into either two or four events. For each event, a different time can be set. To set the time of day at which each event is
to begin, use the following procedure.
Step One: Press and release the Menu button until the Schedule (SCHD) Menu is displayed.
Step Two: Press and release the Item button. Use the or button to select the
desired schedule mode. 2 = two events per day (Occ, UnOcc). 4 = four
events per day (Occ 1, UnOcc 1, Occ 2, UnOcc 2).
Step Three: Press and release the Item button. Use the or button to select the
schedule, either 7 day or 24 hour.
Settings
Timer 032
1
R
2
C
34 Re
la
y
CU
S
24 V (ac)
Class 2
Transformer
032 938-08
Mee
ts Class B:
Canadian ICES FCC P
a rt 1 5
R e la
y NC / R
e la
y NO
158033
Po
w
e
r: 2
4 V ± 1
0 % 60 Hz 3 V
A
Re
la
y:
24
V (ac) 2 A
