PIX 250i User Guide
v. 2.10 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
72

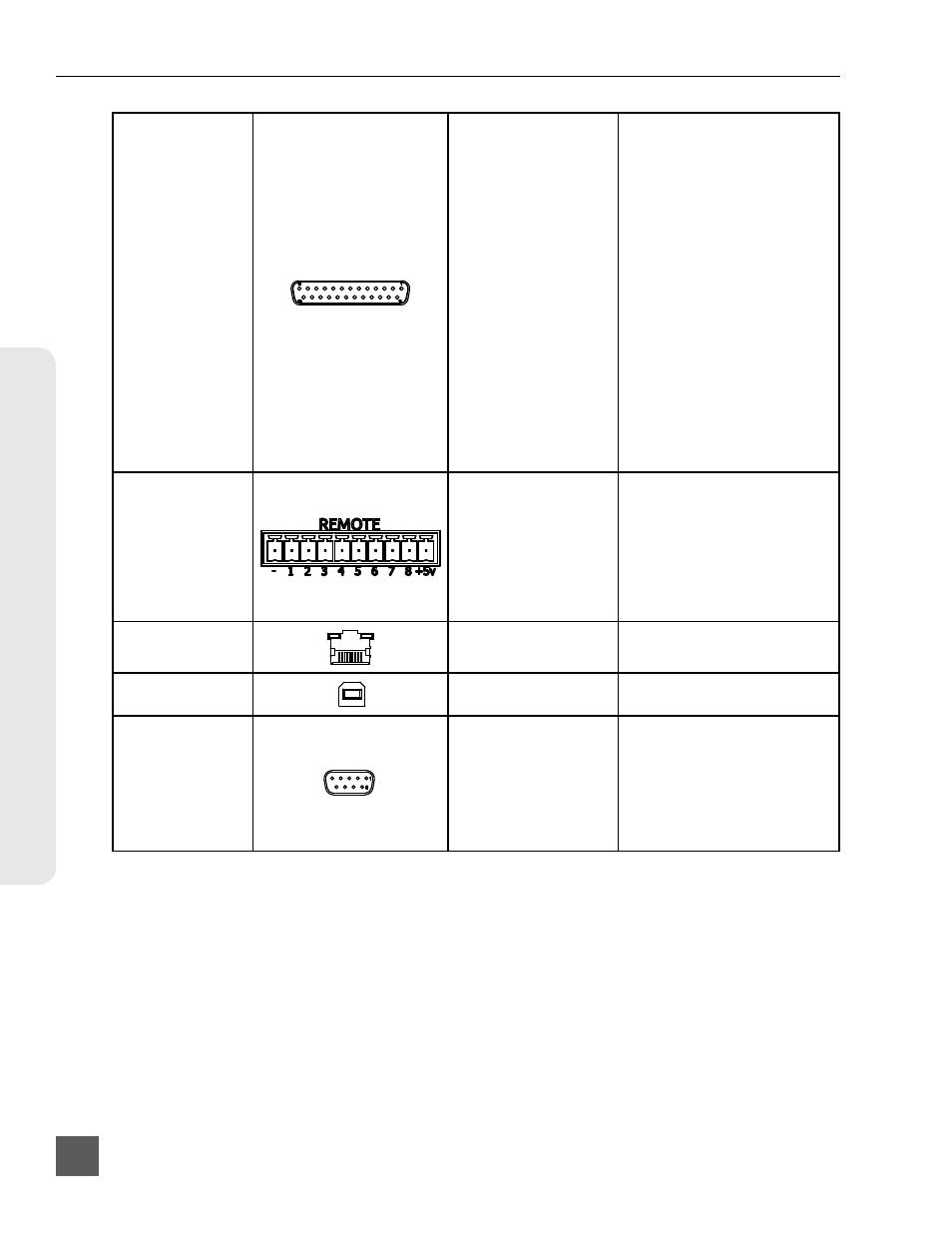

Connect
or Pin Assignments
DB-25 (1)
(CH 1-8 AES IN/OUT)
1–Digital Out 4 signal (+)
2–Digital Out 4 Ground
3–Digital Out 3 signal (-)
4–Digital Out 2 signal (+)
5–Digital Out 2 Ground
6–Digital Out 1 signal (-)
7–Digital In 4 signal (+)
8–Digital In 4 Ground
9–Digital In 3 signal (-)
10–Digital In 2 signal (+)
11–Digital In 2 Ground
12–Digital In 1 signal (-)
13–unused
14–Digital Out 4 signal (-)
15–Digital Out 3 signal (+)
16–Digital Out 3 Ground
17–Digital Out 2 signal (-)
18–Digital Out 1 signal (+)
19–Digital Out 1 Ground
20–Digital In 4 signal (-)
21–Digital In 3 signal (+)
22–Digital In 3 Ground
23–Digital In 2 signal (-)
24–Digital In 1 signal (+)
25–Digital In 1 Ground
Mates with DB-25 Male Connectors
wired in Tascam fashion
Phoenix 10-pin (1)
(GPIO)
1–Ground
2–Record Input
3–Playback Input
4–Stop Input
5–unused
6–unused
7–Record Output
8–Playback Output
9–Stop Output
10–+5V DC Output
Logic points can be set to high or low.
8P6C-F (2)
(Ethernet)
Standard 8P8C
For Ethernet Network connection,
Ethernet file transfer, and Network
Grouping. Mates with Cat-5
USB-B (1)
(Factory)
Standard USB-B receptacle
For Factory use only. Mates with USB
Standard-B plug.
DB-9 (1)
(RS-422)
1–Ground
2–Transmit A
3–Receive B
4–Receive Common
5–Spare
6–Transmit Common
7–Transmit B
8–Receive A
9–Ground
Sony P2 (9-pin) machine control
standard
