Sync
hr
onization & T
imecode

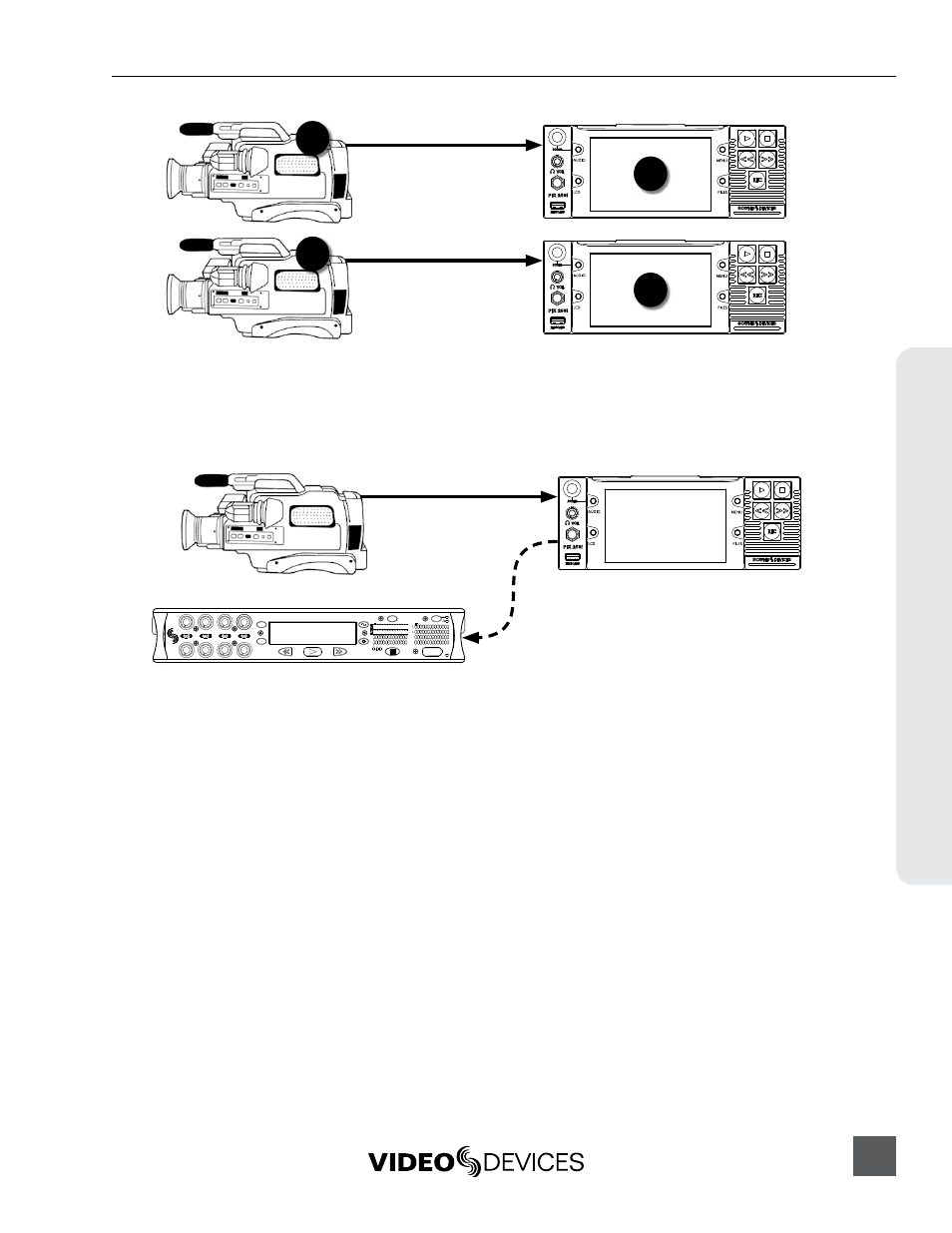

Camera #1 to PIX #1, Camera #2 to PIX #2, No Genlock
SDI/HDMI
SDI/HDMI
A
A
B
B
In this scenario, each camera is its own master video sync source , but the PIX 250i is the source of
the timecode. The PIX 250i records its files based on the camera’s clock. The heads will match per-
fectly, but the tails may drift depending on the cameras’ clocks.
Camera to PIX with Wordclock Connection to Audio Recorder
SDI/HDMI
Wordclock
1
2
3
4
5
6
7
8
788T
A
B
C
D
E
F
BFS d 0
IN CF EX
ARM ARM
BFS d 0
INPUT PWR
MENU
HDD
REC
R
L
The wordclock output on the PIX 250i is synchronous with incoming video signal. The wordclock
output can be used to sync external audio recorders to any camera. To enable wordclock output, set
Setup Menu item [Timecode/Sync - Sync Out] to Wordclock, Follows Video In.
