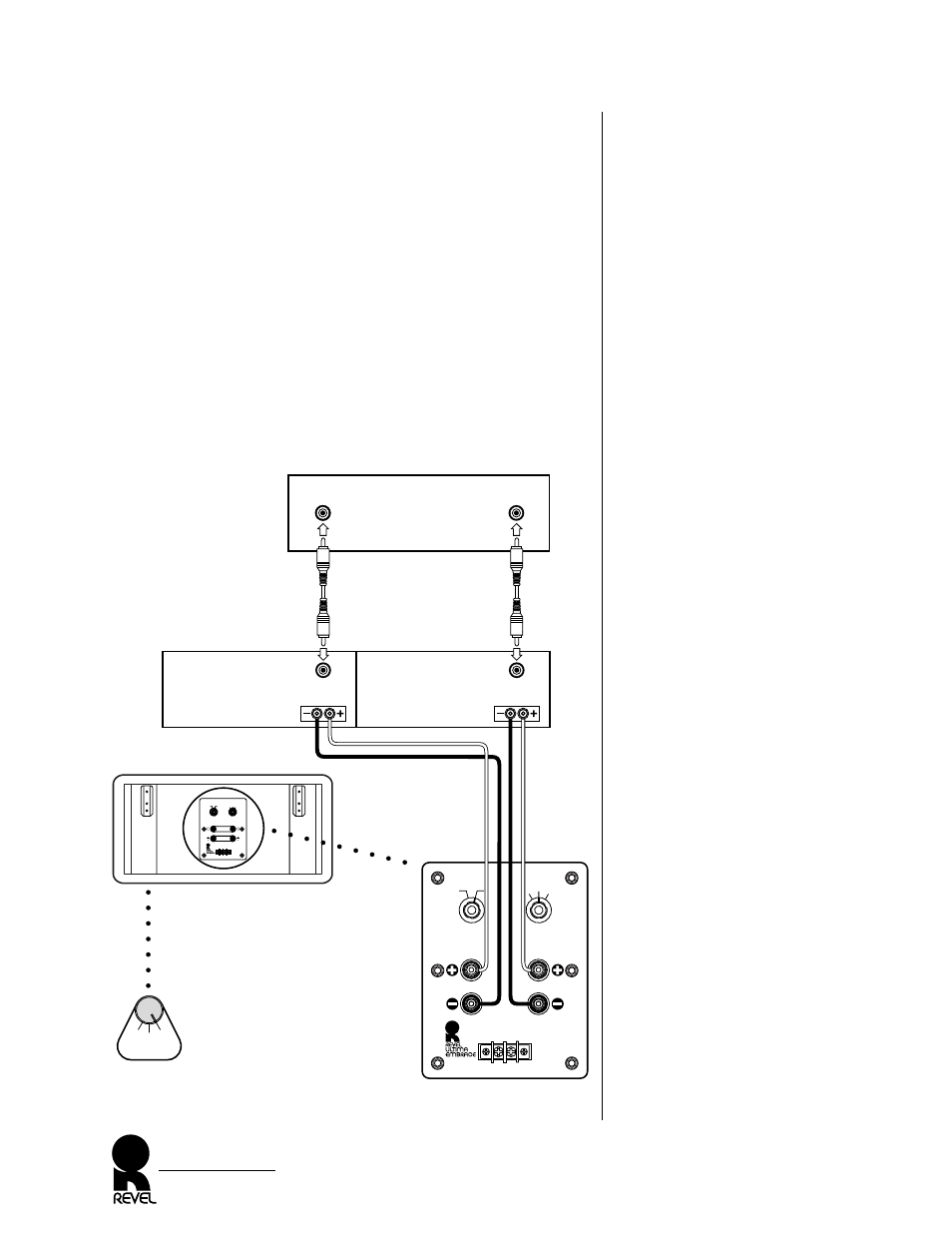

Figure 18. How to connect the
EMBRACE surround in a
Dual Drive™ system.
SPEAKER CONNECTIONS
(CONTINUED)
DUAL DRIVE™ SYSTEM CONNECTIONS
A multi-channel Dual Drive™ controller provides two sets of sur-
round (or rear) outputs and requires connecting two separate audio
signals to each EMBRACE, as shown in Figure 18. Also, two chan-
nels of amplification will be needed for each surround loudspeaker.
NOTE: Remove the shorting straps from the EMBRACE connector ter-
minals before attempting connection in the Dual Drive™ mode. Serious
damage may result to the amplifiers if this precaution is not followed.
Also, be sure to set each EMBRACE mode switch (on the front) to
“BIPOLE” when using the Dual Drive™ mode.
EMBRACE
Owner’s Manual
18
EMBRACE Rear
High Frequency
Level (dB) Rear Wall
Proximity
Connect for
Normal Operation
Connect for
Normal Operation
Remove Straps
for Dual Drive
Remote
Dipole /Bipole Chatsworth
California
Made in U.S.A.
Front Rear
0 -1 +1 Normal Near
Rear
Wall
High Frequency
Level (dB) Rear Wall
Proximity
Remote
Dipole /Bipole
Serial No. xxxx
Chatsworth
California
Made in U.S.A.
Front Rear
0 -1 +1 Near
Rear
Wall
Set MODE Control To
“Bipole”
Remove
Shorting Straps
Mode
Control
(on front)
Remote Dipole
Bipole
Connector Panel
Amplifier
Channel
(rear view)
INPUT
Amplifier
Channel
(rear view)
INPUT
Sides/Surround
OUTPUT
Rear
OUTPUT
(one channel shown)
Multi-Channel
Controller
(rear view)
