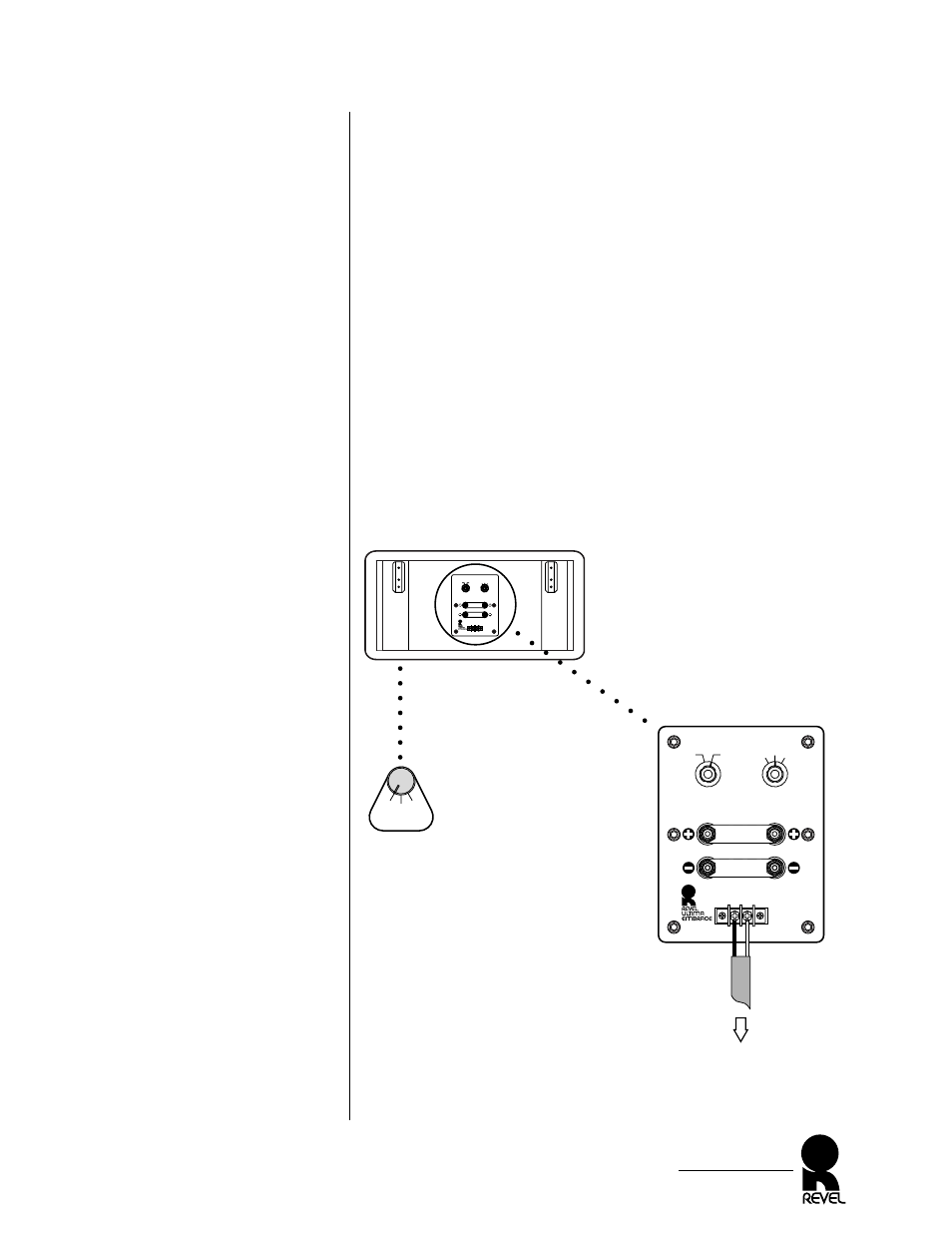

Figure 17. How to connect a
remote control system to the
relay input terminals on the
EMBRACE rear panel.
REMOTE DIPOLE/BIPOLE SWITCHING
EMBRACE surround speakers feature remote dipole/bipole selec-
tion via a compatible interface with popular system integration sys-
tems, as shown in Figure 17. Moreover, most remote systems can
also be set up to customize the mode for the type of selection. For
example, any “movie” mode could automatically switch the
EMBRACE surrounds to dipole mode.
Remote operation is enabled by selecting “REMOTE” on the
EMBRACE front-panel switch (see Figure 17). Energizing the
EMBRACE Remote Dipole/Bipole connector (on the rear panel)
with a voltage from 6.8 to 12 Vdc will engage dipole operation.
Contact your Revel dealer for help in enabling this feature for your
EMBRACE surrounds.
NOTE: The default mode (on the EMBRACE front panel switch) is
set to DIPOLE, and must be set to REMOTE to enable remote
dipole/bipole switching.
EMBRACE
Owner’s Manual
17
EMBRACE Rear
High Frequency
Level (dB) Rear Wall
Proximity
Connect for
Normal Operation
Connect for
Normal Operation
Remove Straps
for Dual Drive
Remote
Dipole /Bipole Chatsworth
California
Made in U.S.A.
Front Rear
0 -1 +1 Normal Near
Rear
Wall
High Frequency
Level (dB) Rear Wall
Proximity
Connect for
Normal Operation
Connect for
Normal Operation
Remote
Dipole /Bipole
Chatsworth
California
Made in U.S.A.
Front Rear
0 -1 +1 Normal Near
Rear
Wall Set MODE Control To
“Remote”
Mode
Control
(on front)
Remote Dipole
Bipole
Connector Panel
To Switch Output (6.8~12 Vdc) On
Multi-Channel Controller System
