Inserting louver, Mounting barndoors – Kino Flo Image 85/45 DMX Series User Manual
Page 7

7
Top and Bottom Door

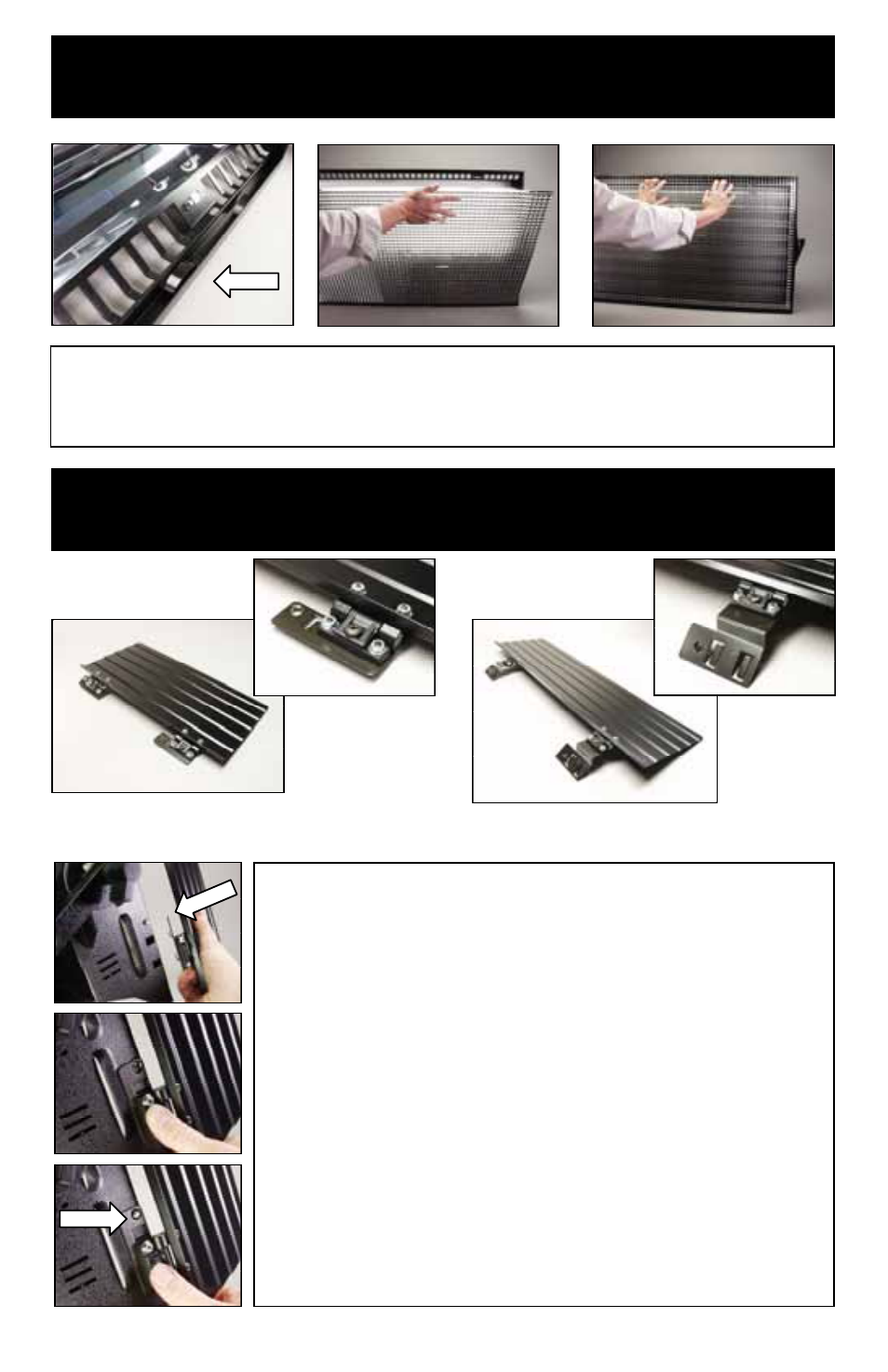

Inserting Louver
Place the long edge of the Louver into the lower channel containing a set
of leaf springs. Press down on the Louver and slip the upper edge of the
louver into the upper channel of the fixture. To remove reverse the procedure.
Mounting Barndoors
1. For the Side Doors, align the hinge bracket tabs
with the two square receptacles on the side of the
fixture.
2. Press the tabs of both brackets into the square
receptacles.
3. Slide the two brackets up until the silver lock pin
snaps into place.
4. To release the Barndoor, press the lock pin down
and slide the bracket in reverse.
Side Door (x2)
