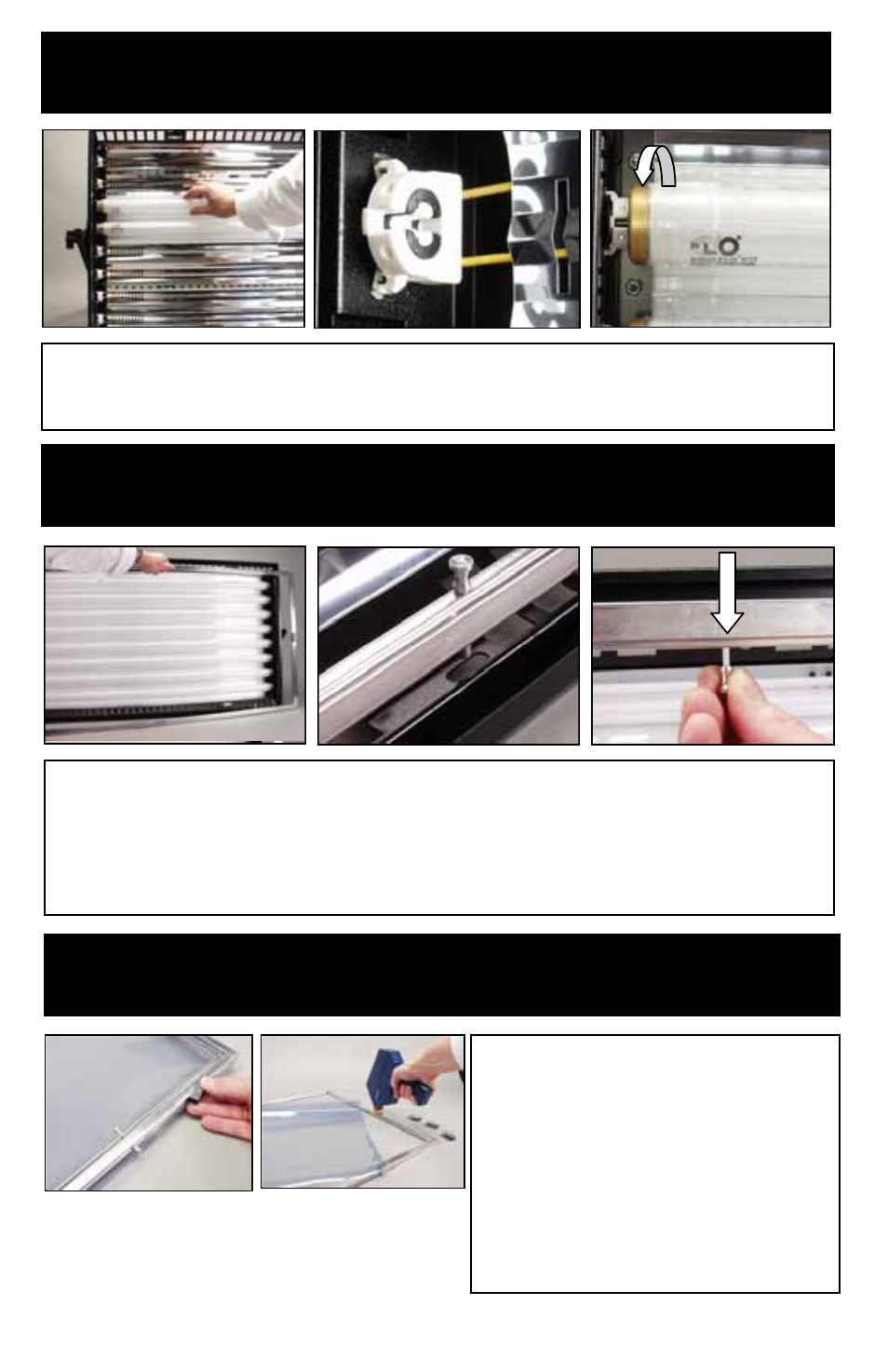

Inserting Lamps
Insert lamps into both lamp holders. Twist ¼ turn to make
electrical contact.
Inserting Gel Frame
The gel frame is secured to the fixture by 4 spring-loaded pins.
Align the pins of the gel frame with the oval receptacle holes on
the edge of the fixture. Pull back the pins and release into the
receptacles to properly secure the gel frame.
Applying Gel to Frame
A) The Gel Frame comes with
Gel Clips. Cut the gel to size and
use the Clips to fasten the gel to
the Frame.
B) Another method is to apply
transfer tape directly to the gel
frame. The clips are not
necessary when taping the gel.
