10
The Image 85 Fixture is used for example purposes throughout these
instructions.
A) Remote Jack: Input for remote hand-held lamp control. Turns lamps on and off
manually without connecting to DMX.
B)
Manual Selector Dial: Turns lamps on and off manually without connecting
DMX Cable to Fixture.
C)
HO/STD Selector Switch: HO setting operates all lamps in fixture at High Output.
STD setting operates all lamps in fixture at Standard light output. (STD is ½ f-stop
lower than HO.)
D)
Power Switch: Has a built-in indicator light, which can detect if AC power is
present in power cord. "O" = OFF position.
E)
Fuse: Provides circuit protection. Note: If Fuse is "blown" or "open" replace with
same type of fuse rating as marked.
F) DMX Address: Sets DMX Address of Fixture.
G) DMX Indicator Lamp: Lights if DMX is present and conforms to DMX512, 1990
H)
Individual Lamp / Fixture Switch: Converts between INDIVIDUAL LAMP and
FIXTURE methods of DMX control.
Pole Operation

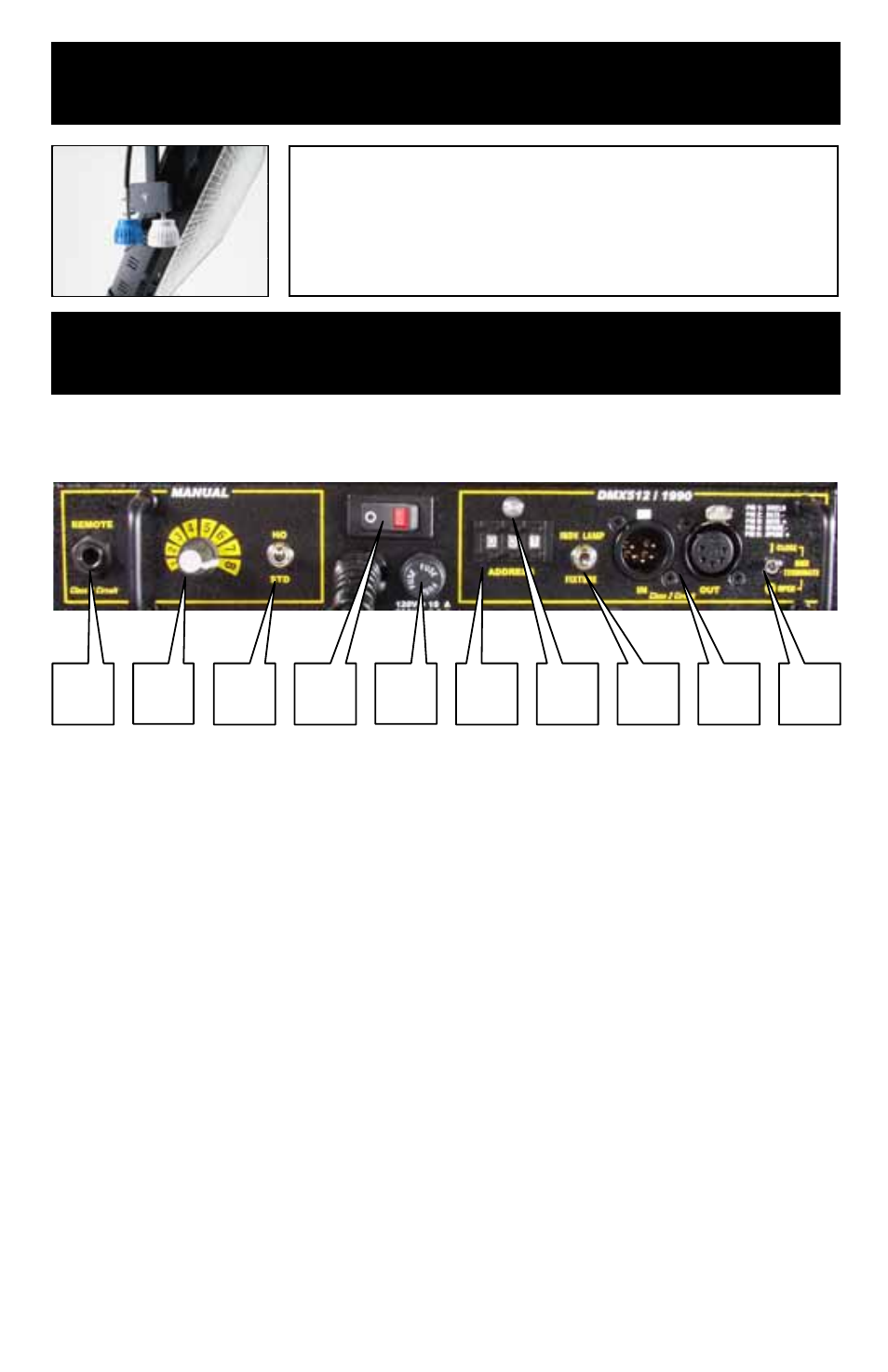

Image Fixture DMX Control Panel
B C A D E F G H I J
The Blue cup alters the Pan (left or right).
The White cup alters the Tilt (up or down).
