Kino Flo Image 85/45 DMX Series - Manual (Page 16)

16
For example, if the DMX Image 85 base address is set at 001, the configuration below
will provide eight lamps individually addressable through DMX512. Address 009 controls
the HO/STD mode.
Image 85 Address
Sequence
DMX Address = 001
Lamp #
DMX
Address
Lamp 1 1
Lamp 2 2
Lamp 3 3
Lamp 4 4
Lamp 5 5
Lamp 6 6
Lamp 7 7
Lamp 8 8
HO/STD 9
Image 45 Address
Sequence
Lamp #
DMX
Address
Lamp 1 1
Lamp 1~2 2
Lamp 1~3 3
Lamp 1~4 4
HO/STD 5

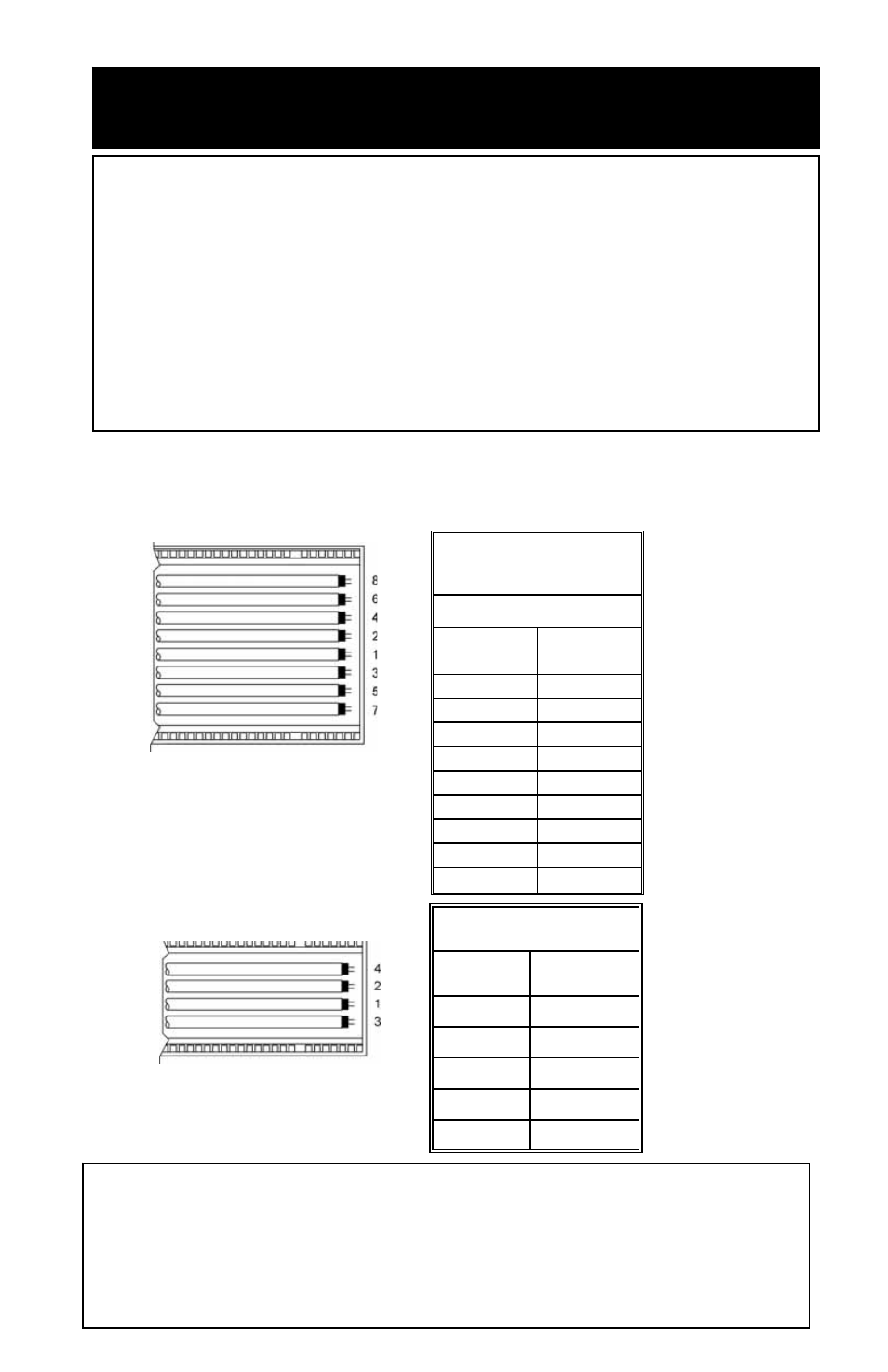

Image 85 Lamp Sequence
Individual Lamp Mode
Setting the unit to Individual Lamp mode allows each lamp within the fixture to
have its own address. Although this option will use up a lot of addresses, it may be
preferable for certain situations. The Individual Lamp mode is useful in achieving light
effects like flickering, chasing or creating light patterns.
After the first DMX address is entered, the DMX Image 85 automatically captures
9 addresses. Lamps are on addresses 1- 8. The 9
th
address controls the HO/STD
mode. For the sake of simplification, it is advisable to select address sequences such
as 10, 20, 30, 40 and so on. If the 9
th
address is not addressed the fixture will default
in the HO setting. Settings of 0%~50% on the dimmer slider on the 9
th
address will
operate lamps in the HO setting. Settings from 50%~100% operate the lamps in
the STD mode and the overall light output of the fixture drops by ½ f-stop.
Image 45 Lamp Sequence
After the first DMX address is entered, the DMX Image 45 automatically captures
5 addresses. Lamps are on addresses 1– 4. The 5
th
address controls the HO/STD
mode. For the sake of simplification, it is advisable to select address sequences such
as 10, 15, 20, 25 and so on. If the 5
th
address is not addressed, the fixture will default
in the HO setting. Settings of 0%~50% on the dimmer slider on the 5
th
address will
operate lamps in the HO setting. Settings from 50%~ 100% operate the lamps in the
STD mode and the overall light output of the fixture drops by ½ f-stop.
