15

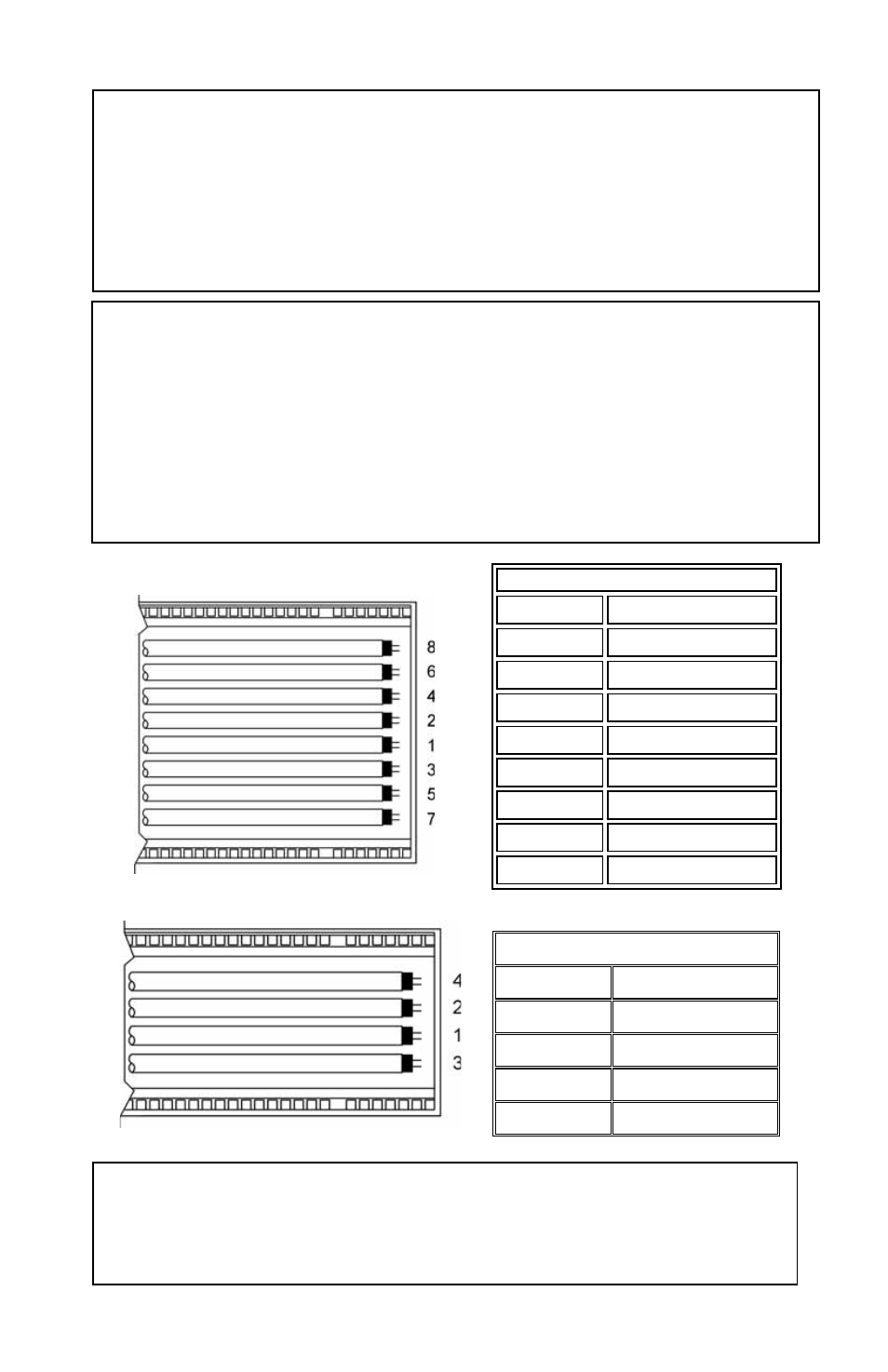

DMX Lamp Sequence
Lamp # Dimmer Level
Lamp 1 6
Lamp 1~2 19
Lamp 1~3 32
Lamp 1~4 45
Lamp 1~5 57
Lamp 1~6 69
Lamp 1~7 82
Lamp 1~8 95
DMX Lamp Sequence
Lamp # Dimmer Level
Lamp 1 12
Lamp 1~2 37
Lamp 1~3 64
Lamp 1~4 83
Image 85 Lamp Sequence
Image 45 Lamp Sequence
Dimmer level - Lamp response
Sliding the fader on the dimmer board from 0% ~ 100% controls the
number of lamps that are on within a fixture. Note: the lamps may
respond ± 4 channel levels, depending on the dimmer board.
IMPORTANT!
The dimmer board/light console should have its channel set to LINEAR
light output response. (LINEAR response is the default setting on most
dimmer boards.)
One of the best applications for the Fixture mode is when lighting
Blue and Green Screens or large Cycloramas.
For example: One row of Image 85 fixtures can be set to Fixture
mode on a common address. When the fader on the dimmer board
is brought up or down, all the Fixtures on that address will have the
same lamps turned on. Assigning the 9
th
address on all the fixtures
renders control over the HO/STD settings.
HO/STD Control: Image 85, assign a second dimmer channel to
the 9
th
address to control the HO/STD mode. Image 45, assign the
5
th
address. Dimmer level 0%~50% operates all the lamps in the
fixture at HO mode, from 50%~100% in the STD mode.
