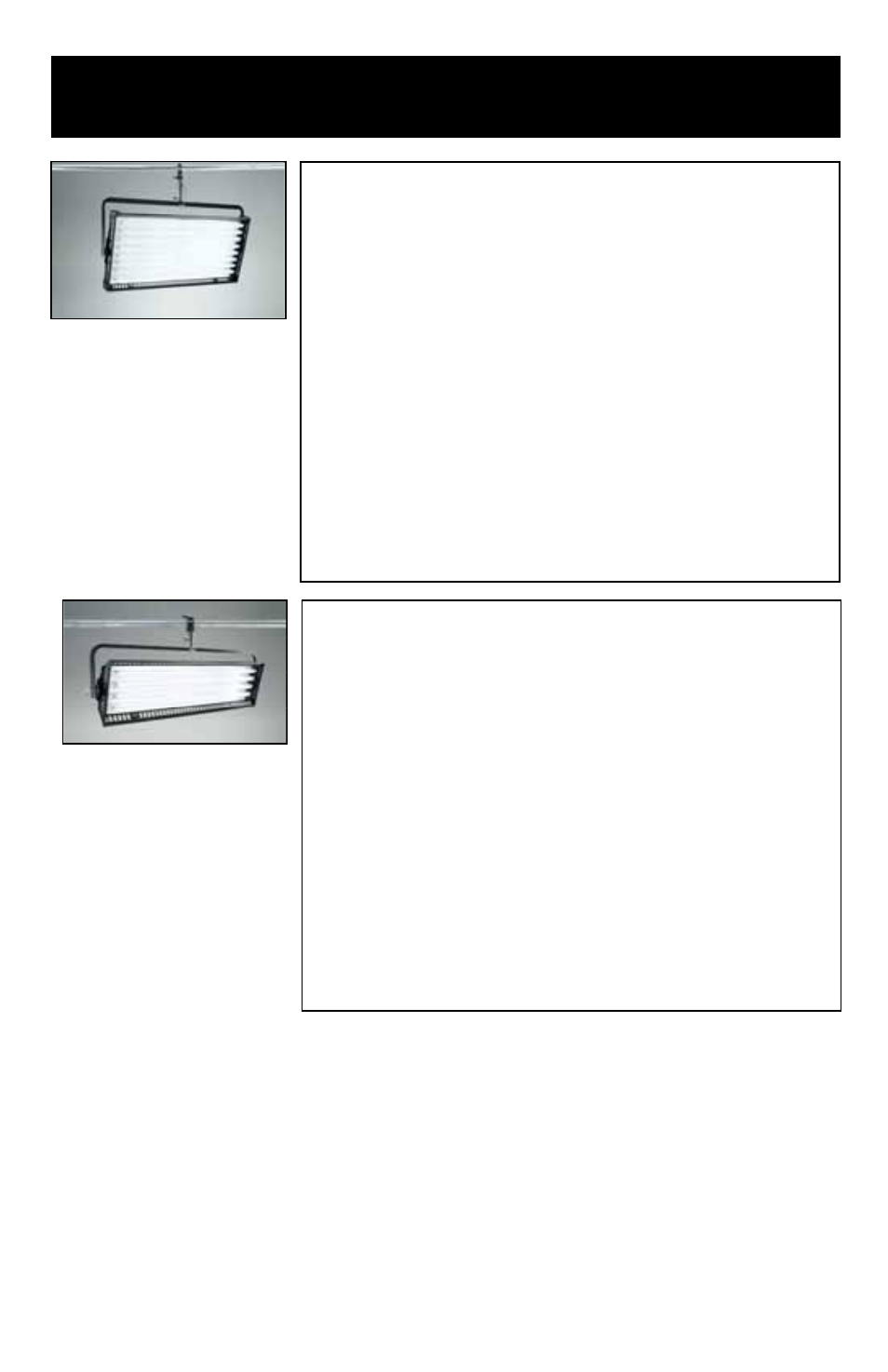

Image 85 Yoke
Image 45 Yoke
Fixture Specifications
IMG-85X
Image 85 DMX Yoke
Power Requirements: 120VAC or 230VAC
Amperage: 8.6 amps at 120VAC,
4.3 amps at 230VAC
Weight w/ lamps: 38lb / 17.1kg
Dimensions: 54 x 28 x 6.5”
(137 x 71 x 16.5cm)
Lamp Select Switch: Rotary 1-8
Power Switch: On/Off (Lighted when On)
Remote Lamp Select: Phono jack input for
remote control
Lamp type: F75T12
IMG-45X
Image 45 DMX Yoke
Power requirements: 120VAC or 230VAC
Amperage: 4.5 amps at 120VAC,
2.3 amps at 230VAC
Weight w/ lamps: 25lb / 11.3kg
Dimensions: 54 x 17 x 6.5”
(137 x 43 x 16.5cm)
Lamp Select Switch: Rotary 1-4
Power Switch: On/Off (Lighted when On)
Remote Lamp Select: Phono jack input for
remote control
Lamp type: F75T12
