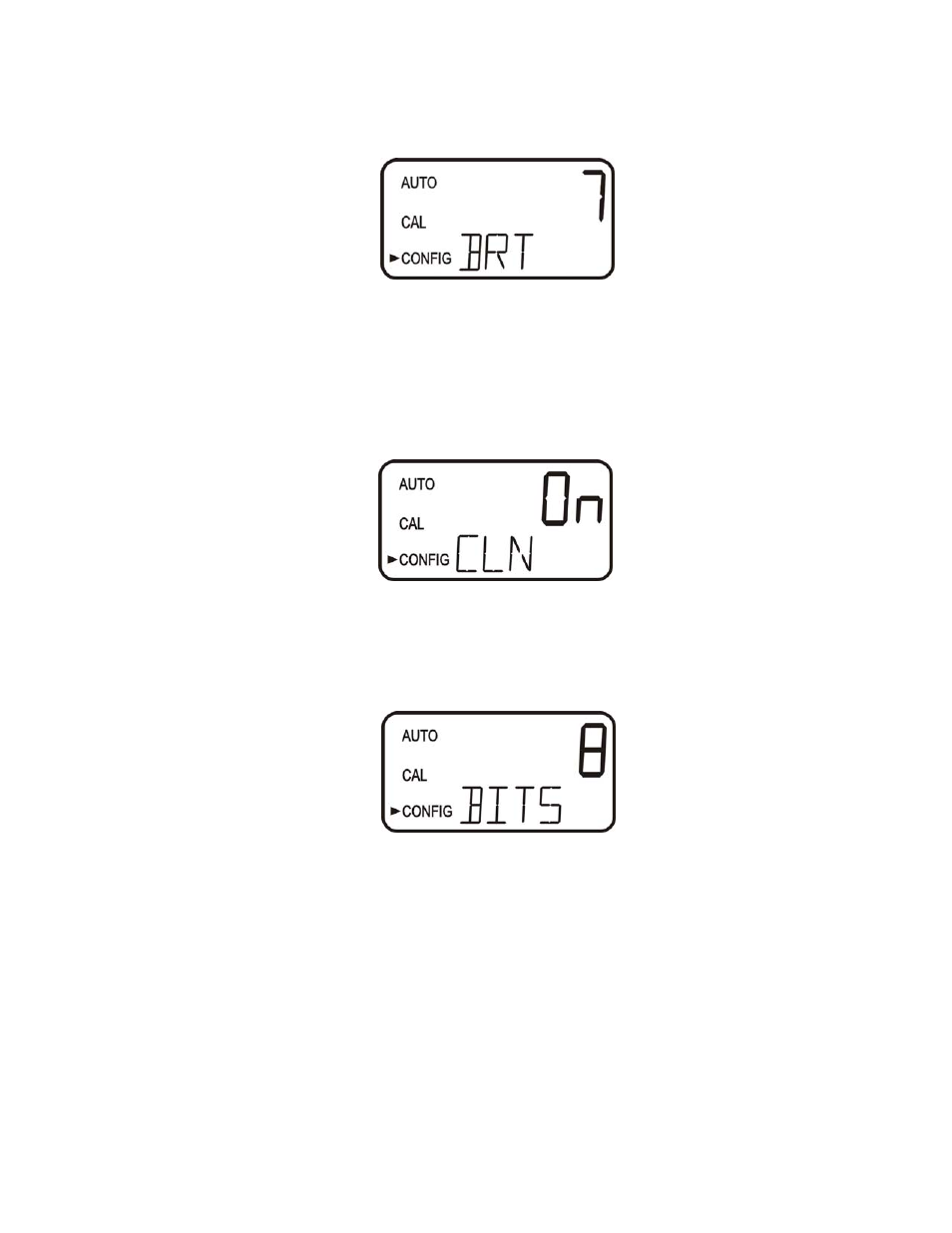

7.9 LCD Backlight Brightness
The LCD backlight brightness may need to be adjusted. This is of particular interest if
multiple instruments are located in the same area and it is desired for the entire group to
have the same appearance. Ten levels are available. The factory brightness is 8.
Change the brightness by pressing the
t or u button. When the desired brightness has
been selected, press the
↵ button.
7.10 Ultrasonic Cleaning
This allows for a selection menu to turn OFF the ultrasonic cleaning function if desired.
The default mode is On. Make a selection using the
t and u buttons then press the ↵
button.
7.11 RS-485 Parameter - Bits
This is the first of three menus to setup the RS-485 parameters. These menus will only
appear if the RS-485 mode is selected. Selections are 7 or 8 bits. The factory selection is 8
bits. Make a selection using the
t and u buttons then press the ↵ button.
AccUView (6/10)
Rev. 4.0 21
