HCO ScoutGuard SG560C
1 Instruction
Page
2
schools, depots, offices, taxies, worksites etc. It can also be used as
trail camera for hunting or monitoring animals by recording the
traces of wild animals. It can be left alone for weeks and months
and it will save event records automatically in digital format.
1.3 Camera Interface
1.3.1 Camera Body Interface
The camera has the following interfaces: a 2.0’’ TFT LCD
display screen, operation panel, USB connector, SD-card slot, TV
output and external DC power connector. Fig.1 shows the front
view of the camera and its function parts. Fig.2 shows the
operation panel and display screen. Fig.3 shows the bottom view of
the camera and its I/O interface.
Take a few moments to familiarize with the camera controls and
displays. It is helpful to bookmark this section and refer to it when
read through the rest of the manual.

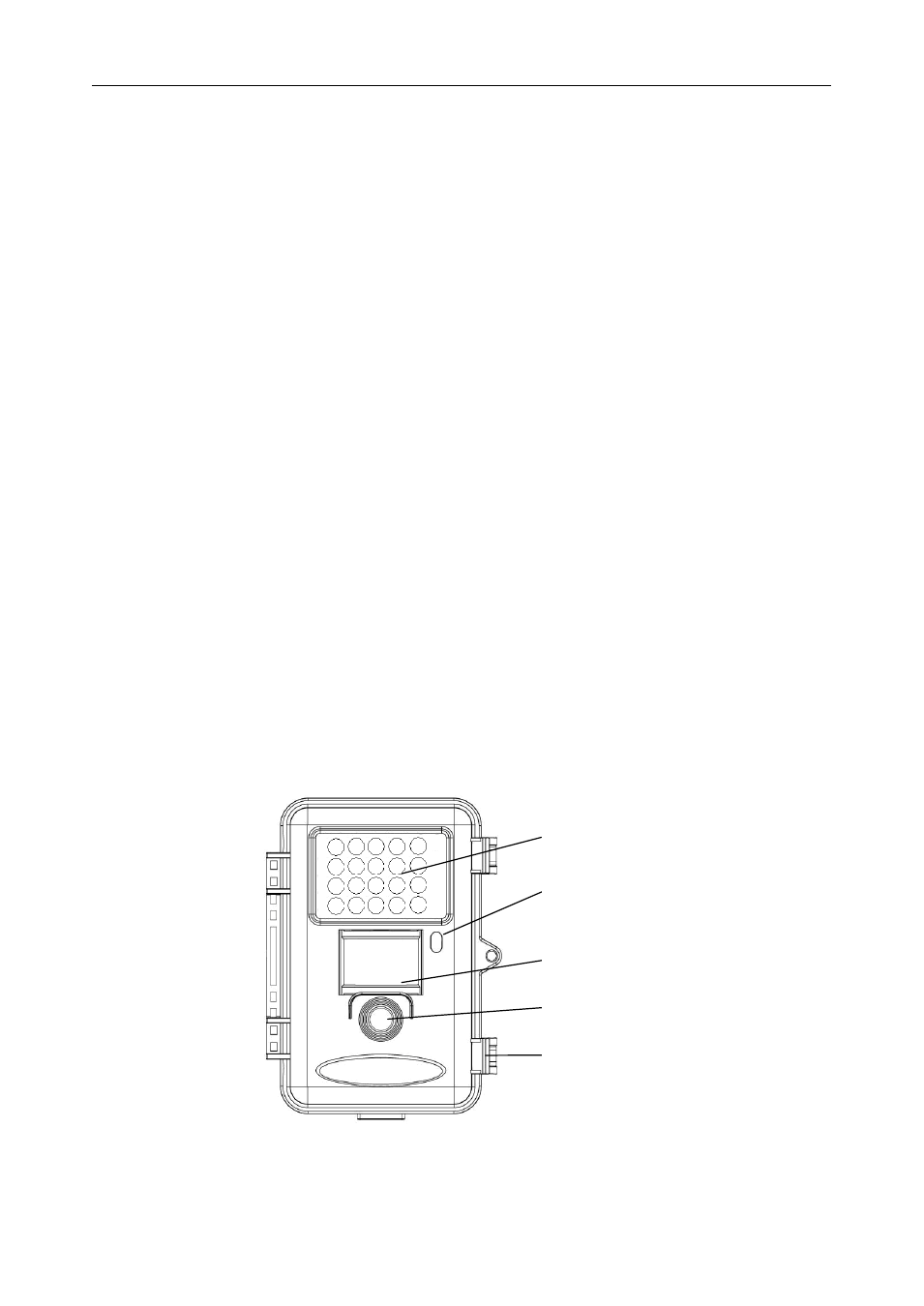

Figure 1: Front view
LED Lights
Indication LED
PIR
Lens
Lock
