E-flite Park 180 Brushless Outrunner Motor, 2200Kv - Manual (Page 2)

Flat Foamy Profile Jet
Weight w/Battery: 2.0 oz
Prop: 3 x 4 Slow Flyer
Battery: 250mAh 2-Cell 7.4V Li-Po
ESC: 10A Brushless
Comments – Extreme speed for fantastic indoor performance.
Accessories and Spare Parts:
See our web site at www.E-fliteRC.com or www.horizonhobby.com for our complete line of brushless motors. We have posted a
specification comparison sheet on our web site so you can compare the different motors we offer.
EFLA110
Power Meter (measures power output in amps, volts, watts, and capacity)
EFLA1005 5A Pro Brushless ESC
EFLA1010 10A Pro Brushless ESC
EFLA248 Bullet Connector Set, Gold, 2mm (3)
EFLM1121 Replacement Mount: Park 180
EFLM1933 Prop Adapter with Setscrew, 1.5mm
EFLM1962 Carbon Fiber Tube, 6”, 7mm OD, 5mm ID: Park 180
Operating Instructions:
1. This brushless motor requires the use of a sensorless brushless speed control. Failure to use the correct speed control may
result in damage to the motor and/or speed control. Please be sure the timing and PWM switching frequency is set
properly on your controller.
2. When mounting the motor, be sure the correct length of screws are used so damage to the inside of the motor will not occur.
We suggest you use the mounting hardware included with your motor. The use of long screws will damage the motor.
3. You may connect the three motor wires directly to the controller with solder or use connectors such as gold plated brushless
bullet connectors (EFLA248), which will also need to be soldered properly to your wires. The three motor wires can be
connected in any order to the three output wires or output port on a sensorless brushless speed control. Be sure to use heat
shrink tubing to properly insulate the wires so the wires will not short. Shorting may damage the motor and speed control.
4. If you add connectors and or you no longer wish to use them, never cut the motor wires. Remove them by properly de-
soldering them. Shortening the motor wires is considered an improper modification of the motor and may cause the motor to
fail.
5. When you connect the motor to the esc, check the rotation direction of the motor. If you find the rotation is reversed,
switching any two motor wires will reverse the direction so the motor rotates properly.
6. Proper cooling of the motor is very important during operation. New technology has brought much higher capacity batteries
with higher discharge rates, which can cause extreme motor temperatures during operation. It is the responsibility of the user
to monitor the temperature and prevent overheating. Overheating of the motor is not covered under any warranty.
7. You can install the propeller on the motor shaft after you have confirmed proper rotation direction. Also consult the instruction
included with your sensorless electronic speed control for proper adjustments and timing.
8. Once the battery is connected to the motor, please use extreme caution. Stay clear of the propeller during operation.
Spinning propellers are very dangerous as the motors produce high amounts of torque.
9. Never disassemble the motor. This will void any warranty.
Installation:

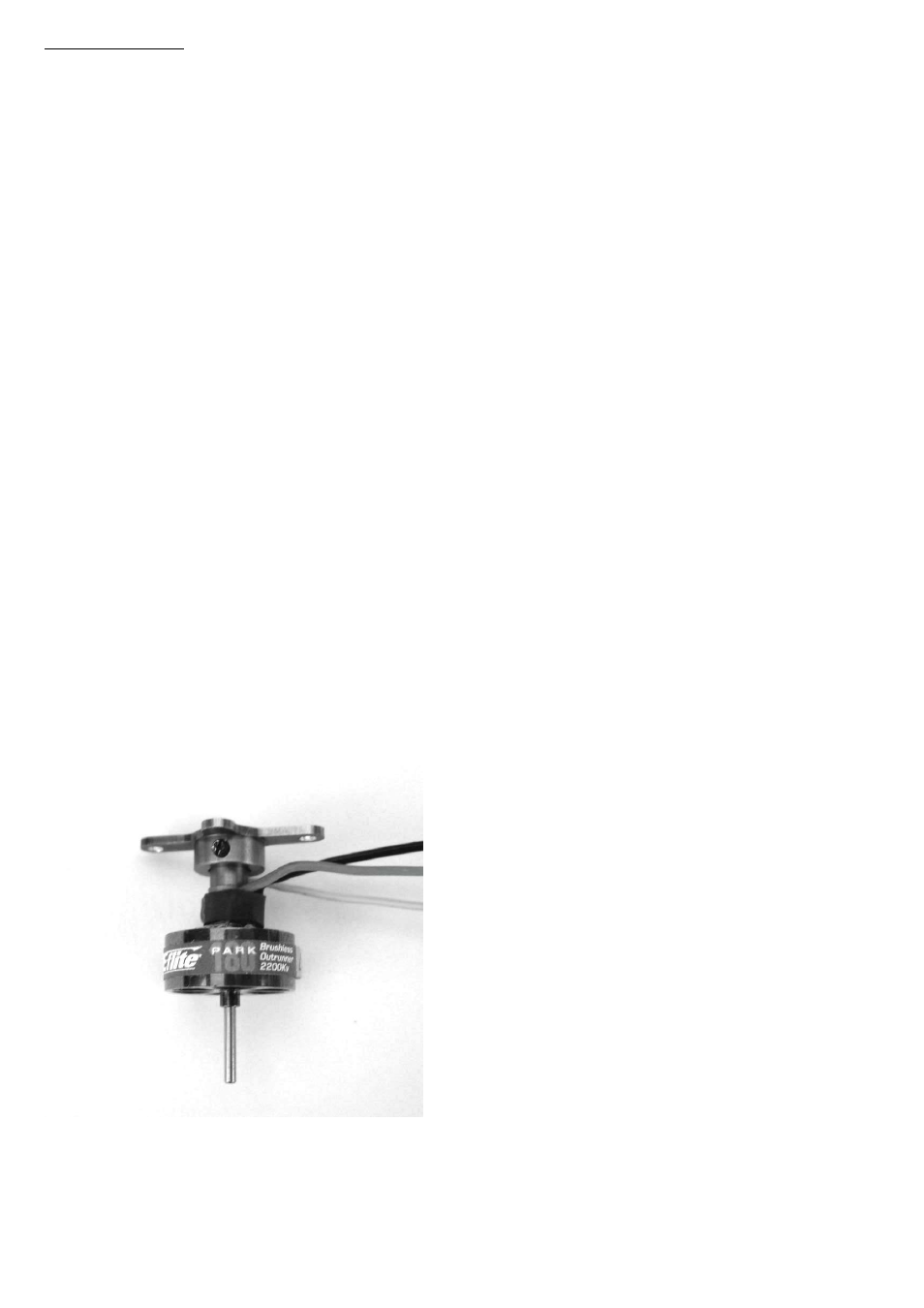

NOTE: Photo shows installation of x-mount onto the motor.
1. Attach the aluminum x-mount to the fixed outer main shaft housing and tighten the set screw to secure the mount to the
motor.
2. Attached the aluminum x-mount and motor to the outside of the firewall using the two wood screws.
