Installation Instructions:
The Delta-V 32 decal is on the top side of the fan unit. Also the center mold line of the fan unit is on the bottom side of the mounting
tabs. This will help you orientate the fan properly before installing into your airplane.

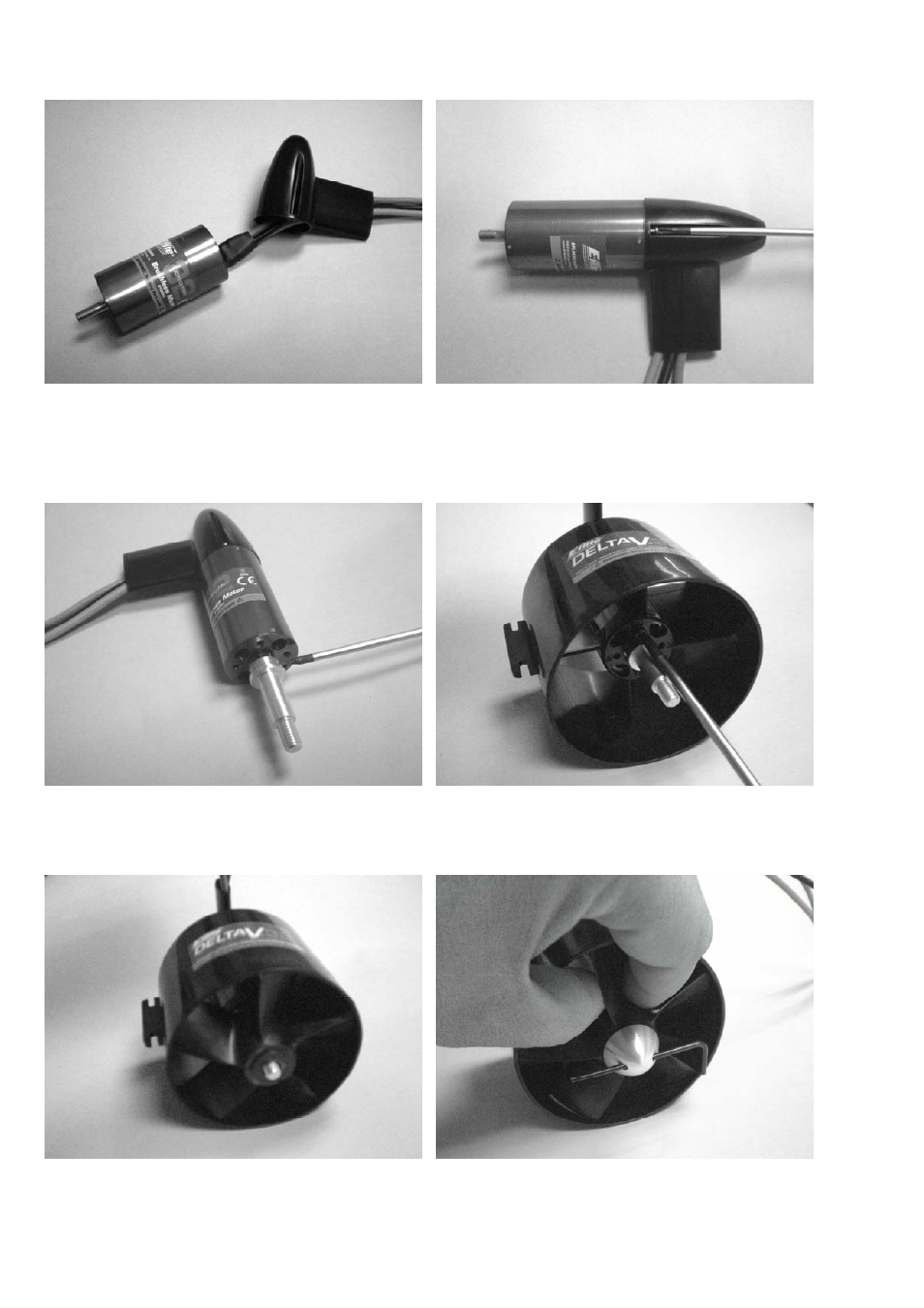

1. Slide the motor wires into the center body fairing as shown. 2. Connect the center body fairing to the back of the motor using the
two 2mm x 5mm screws provided. Note: You may want to trial fit the
center body fairing so you can make sure the wires are accessible to
plug into the ESC when the motor is attached to the fan unit. You
may have to re-position the fairing before attaching to the motor.
3. Slide the threaded shaft onto the motor shaft and tighten 4. Attach the motor to the fan unit using the two 3mm x 5mm screws
both set screws. Use removable blue thread lock.
provided.
5. Install the rotor
6. Screw the spinner onto the threaded shaft and tighten while holding
the spinner in place making sure it is secure. Use an L-wrench or
something similar to help tighten the spinner.
