5 E-flite Rhapsody 25e ARF Assembly Manual

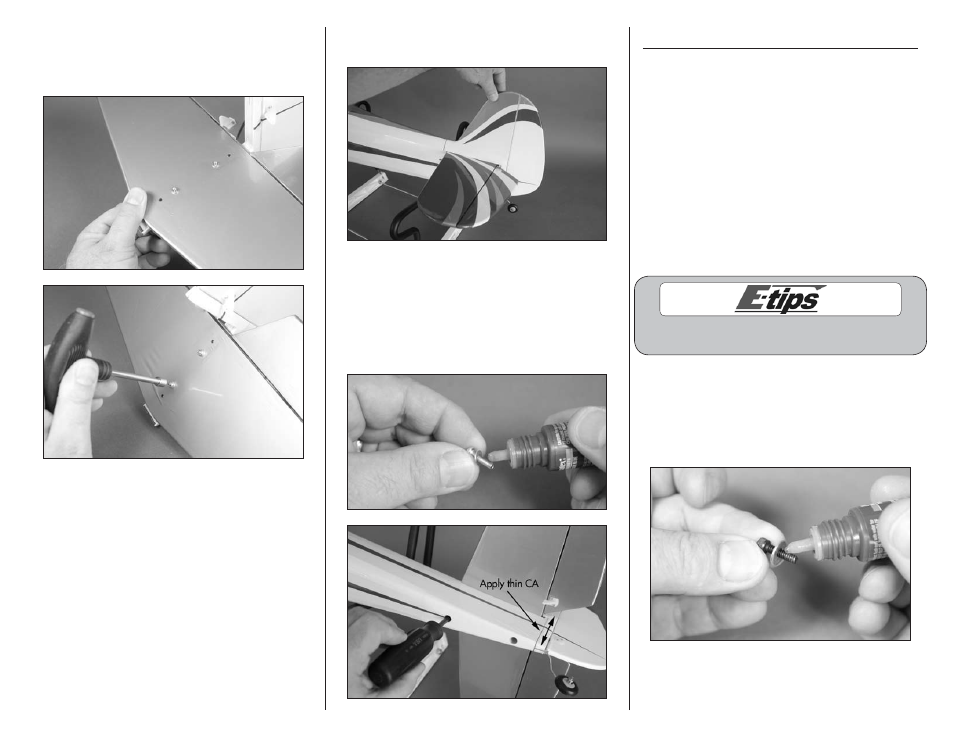

 2. Slide a #4 washer on each of the threaded rods
from the bottom side of the stabilizer. Use two 4-40
lock nuts to secure the fin to the stabilizer. Tighten
the nuts using a 1/4-inch nut driver.
Important: Do not over-tighten the nuts as this
could damage the stabilizer.
 3. Position the assembly at the rear of the fuselage.
The stabilizer will rest on the fuselage as shown.
 4. Slide a #4 washer on a 4-40 x 1/2-inch
machine screw. Apply a small amount of threadlock
on the screw, then use the screw to secure the tail
assembly to the fuselage. You will need to use two
screws and washers and a #1 Phillips screwdriver
to complete this step. Wick thin CA along the joint
between the vertical fin post and fuselage.
Landing Gear Installation
Required Parts
Fuselage Landing gear
4-40 x 3/8-inch socket head screw (2)
Axle with lock nut (2)
#4 washer (2) #6 washer (2)
Wheel pant (left and right)
Main wheel, 2
1 /
2
-inch (63mm) (2)
5/32 wheel collar with setscrew (4)
6-32 x 1/2-inch socked head machine screw (2)
Required Tools and Adhesives
Threadlock Flat file
Ruler Felt-tipped pen
Open end or box wrench: 1/2-inch, 12mm (2)
Hex wrench: 1.5mm, 3/32-inch, 7/64-inch
Make sure to use threadlock on all metal-to-
metal fasteners so they don’t vibrate loose.
 1. Slide a #6 washer on a 6-32 x 1/2-inch socket
head machine screw. Apply a drop of threadlock
on the screw. Use two screws and washers to
secure the landing gear to the fuselage using a
7/64-inch hex wrench or ball driver. Please make
sure the landing gear angles forward.
