12 E-flite Rhapsody 25e ARF Assembly Manual

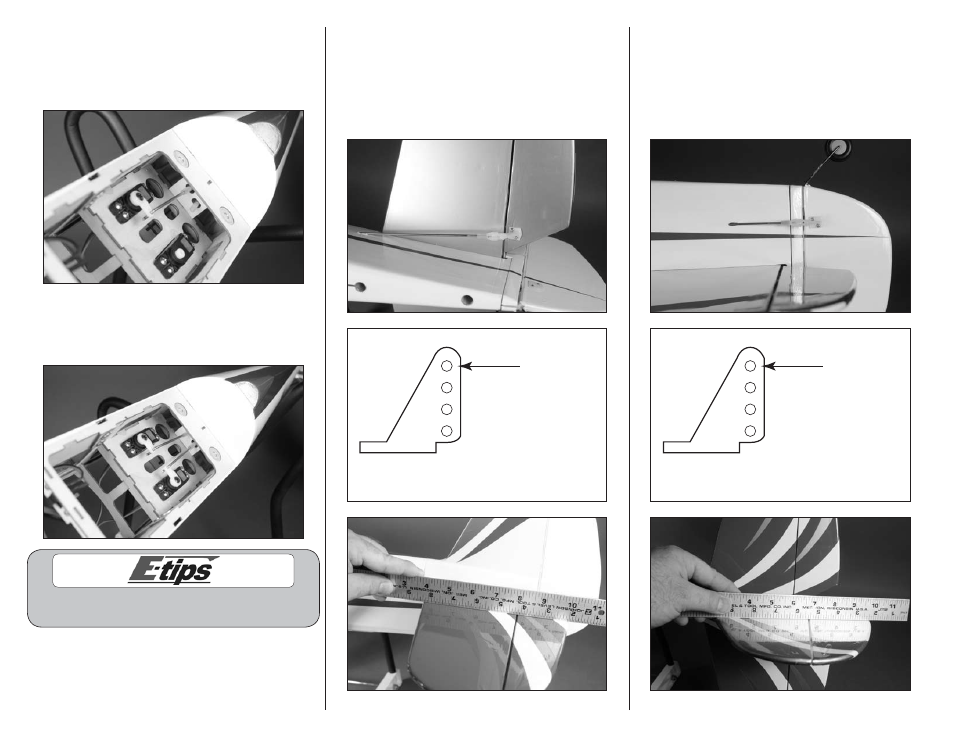

 6. Slide the pushrod wire into the pushrod tube
inside the fuselage. Center the elevator servo using
the radio system. Attach the servo horn to the servo
output using the hardware provided with the servo
and a #1 Phillips screwdriver.
 7. Repeat Steps 4 though 6 to install the rudder
servo horn and the 2-56 x 19 1 /
2
-inch rudder
pushrod wire.
When centering the control surfaces, use a ruler or
straightedge to make sure the surface is in alignment.
 8. Slide a silicone clevis keeper on a clevis. Thread
the clevis on the pushrod wire. With the servo
centered, connect the clevis to the outer hole on the
control horn. Make sure the elevator is centered
when the clevis is connected. Slide the silicone
clevis keeper over the forks of the clevis to keep it
from opening accidentally in flight.
Drawing not to scale
Attach clevis
to outer hole
 9. Slide a silicone clevis keeper on a clevis. Thread
the clevis on the pushrod wire. With the servo
centered, connect the clevis to the outer hole on
the control horn. Make sure the rudder is centered
when the clevis is connected. Slide the silicone
clevis keeper over the forks of the clevis to keep it
from opening accidentally in flight.
Drawing not to scale
Attach clevis
to outer hole
