Top Wing Installation (Ultimate)
Required Parts
Top wing Fuselage
Wing strut (2)
Required Tools and Adhesives
Square Foam-safe CA

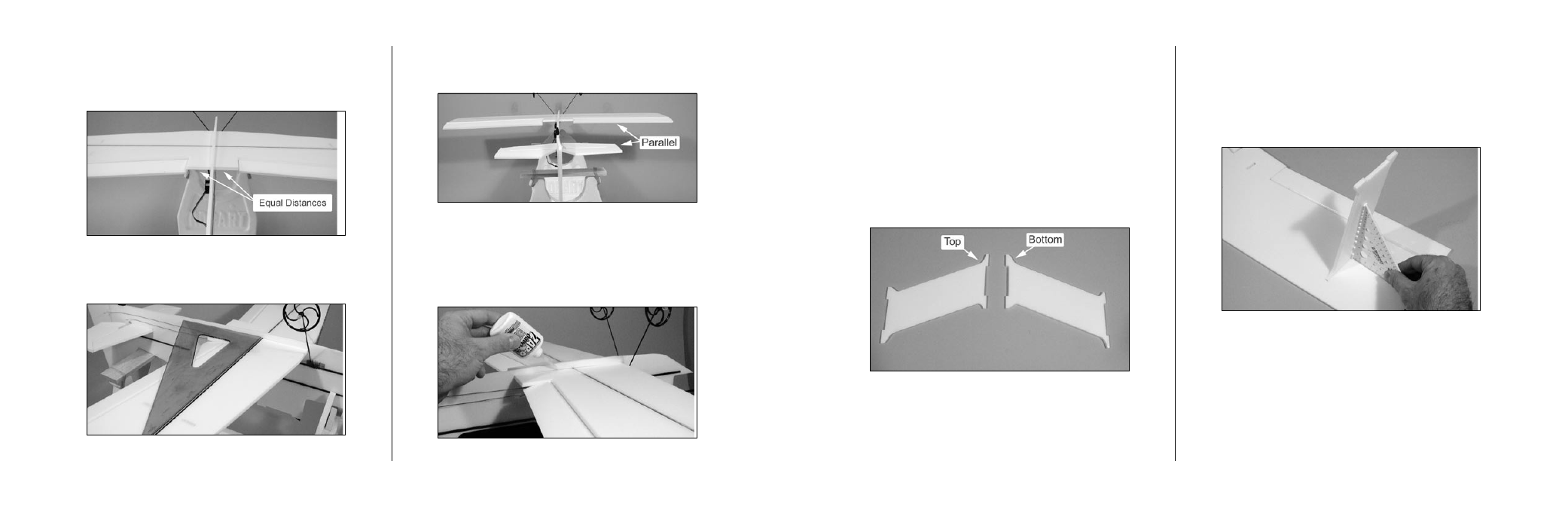

❍ 1. Locate the two wing struts. Note the top and
bottom of each strut as shown.
❍ 2. Check the fit of one of the struts to the top
wing. The strut will angle back toward the
trailing edge. Use a square and foam-safe
CA to glue the strut to the wing. Repeat for
both struts.
20
❍ 2. Center the rear of the wing by measuring the
distance from the fuselage to each side of the
wing center between the ailerons.
❍ 3. Use a square to align the main spar in the
wing to the fuselage.
❍ 4. Check and adjust the wing so it is parallel to
the stabilizer.
❍ 5. Double-check the alignment of the wing
made in Steps 2 through 4. Use foam- safe
CA to glue the wing to the fuselage. Use CA
on both the top and bottom of the wing.
