Wing Installation
Required Parts
Wing Fuselage
Required Tools and Adhesives
Square Foam-safe CA
Note: The installation of the wing for the Tribute
and the bottom wing for the Ultimate follow the
exact same procedure. Installation of the top
wing for the Ultimate is covered in Top Wing
Installation (Ultimate). If you are building the
Tribute, you can skip to Aileron Servo Installation
once the wing has been installed.

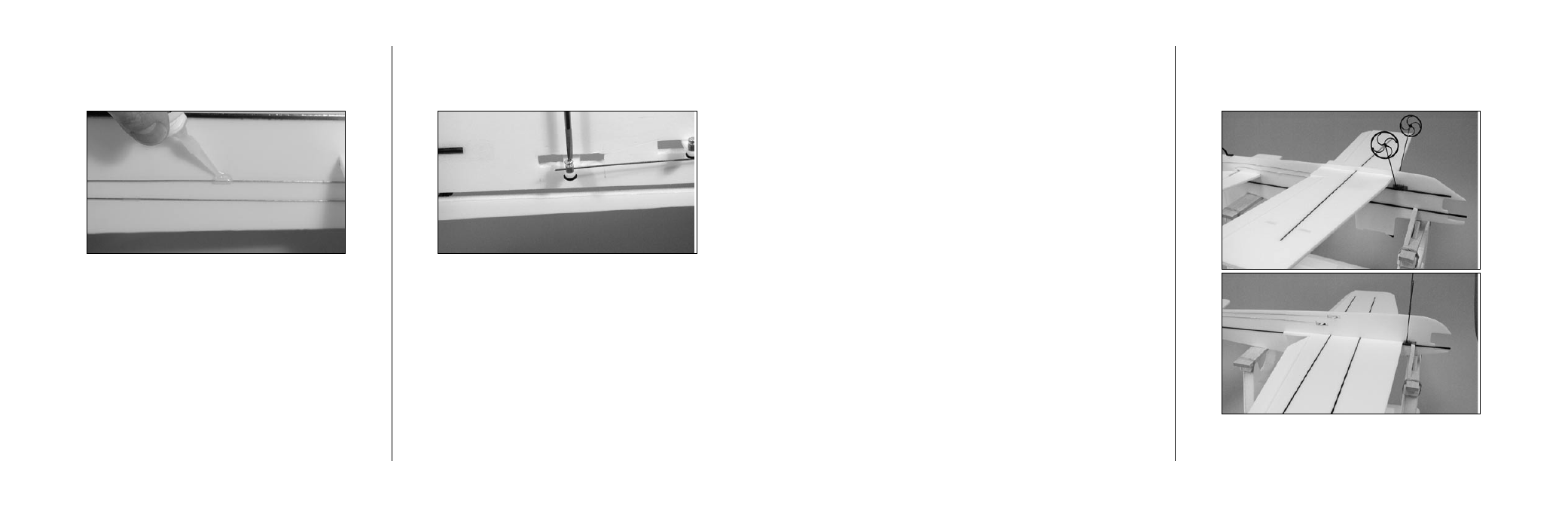

❍ 1. Locate the wing and slide it into position into
the fuselage. Use the wing with the carbon
spar for the Ultimate.
18
❍ 8. Space the pushrod guides evenly between
the rudder and servo. Use foam-safe CA to
glue the guides to the fuselage.
❍ 9. Center the rudder and tighten the screw in
the connector to secure the pushrod. Trim off
any excess wire.
❍ 10. Repeat Steps 3 through 9 for the
elevator pushrod.
