8 E-flite Tribute Fx 3D ARF Assembly Manual
Aileron Servo Installation
Required Parts
Wing Servo w/long servo arm (2)
Control horn (2) Control connector
Connector backplate Linkage wire, 4 1 /
4
in (108mm) (2)
2mm x 4mm machine screw (2)
Required Tools and Adhesives
Hot glue 6-minute epoxy
Drill Drill bit: 1/16 in (1.5mm)
Side cutters Low-tack tape
Threadlock

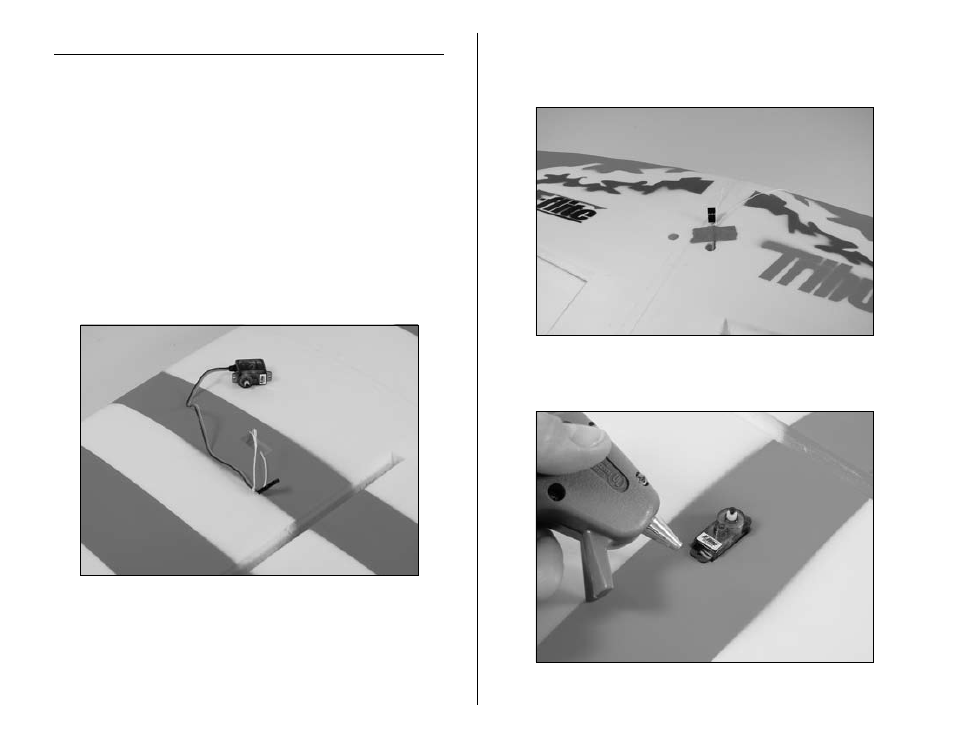

  1. Remove the tape holding the string inside the wing.
Pull enough of the string out of the wing to tie it to the
servo lead.
  2. Use the string to pull the servo lead through the
wing and out the opening at the center section. Use
tape to secure the servo lead so it won't fall back into
the opening.
  3. Use hot glue to secure the servo in the wing. The output
of the servo faces toward the aileron.
