E-flite Tribute Fx 3D ARF Assembly Manual
Landing Gear Installation
Required Parts
Airframe
Tail skid
Main landing gear
Plywood landing gear retainer
Wheel retainer (4)
Wheel pant (2)
Wheel pant strap (2)
2mm x 4mm sheet metal screw (2)
Required Tools and Adhesives
Foam-safe CA
Drill
Drill bit: 1/16 in (1.5mm)

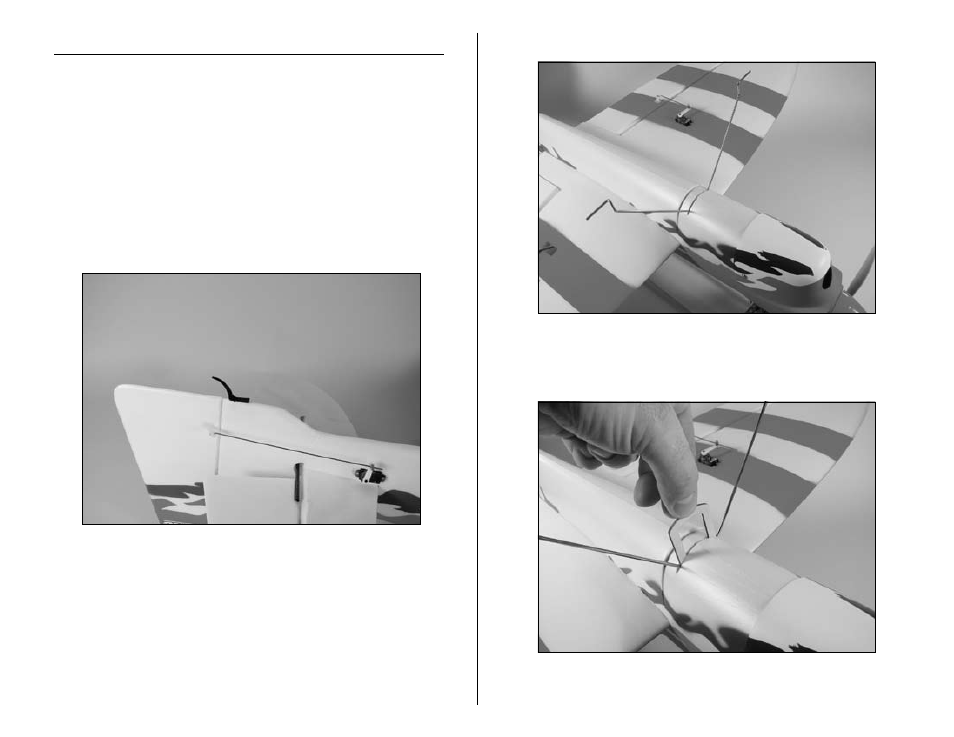

1. Use foam-safe CA to glue the tail skid into the pre-drilled
holes near the rudder.
2. Slide the main landing gear in the slot in the fuselage.
3. If the landing gear is loose, or you choose to
permanently attach the gear, use foam compatible CA
to glue the plywood landing gear retainer into the slot.
