9 E-flite Hurricane 25e PNP/BNF Assembly Manual
EN
Main Gear Installation - BNF/PNP
Required Parts
Wing panel (right and left)
Landing gear assembly (right and left)
Landing gear door (right and left)
Landing gear mount cover (right and left)
2.5mm x12mm self-tapping screw (8)
Required Tools and Adhesives
Phillips screwdriver: #1
If you will be installing the optional retract, skip
to the Optional Retract Installation section of
the manual on Page 10. The retracts can be
installed now, or later in the life of your model.

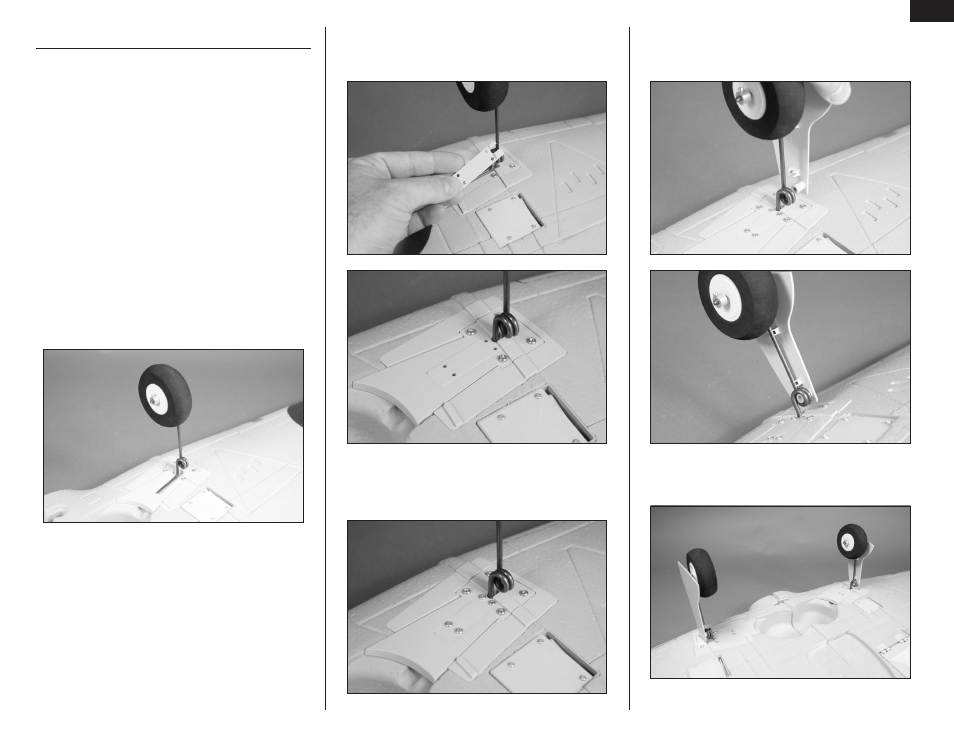

 1. Locate the main landing gear assembly. Fit the
assembly into the wing panel. The coil on the spring
will face to the rear of the wing, and the wheel will
face toward the middle of the wing.
 2. Fit the landing gear mount cover in position.
Note the narrow side of the opening faces to the
front of the wing.
 3. Use four 2.5mm x 12mm self-tapping screws
to secure the landing gear mount cover. Use a #1
Phillips screwdriver to tighten the screws.
 4. Snap the landing gear door to the strut. Note
that the protrusion on the door fits into the coil of the
strut to keep the door from rotating.
 5. Repeat steps 1 through 4 to install the remaining
landing gear assembly.
