16 E-flite Hurricane 25e PNP/BNF Assembly Manual
EN

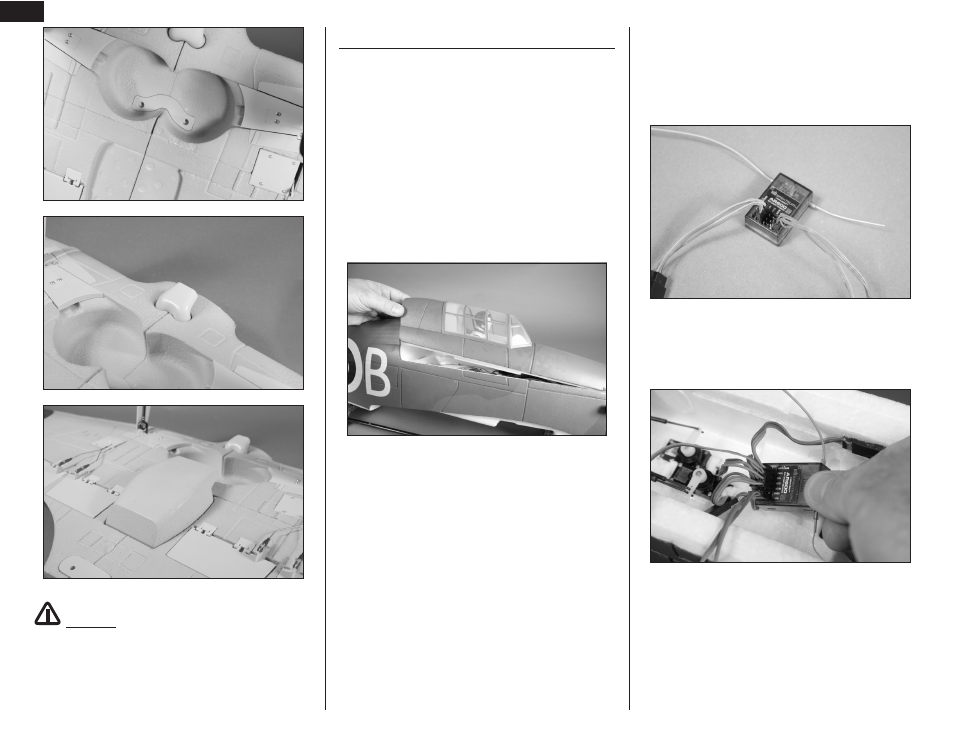

CAUTION: The installation of the foam radiator
scoop and bolt plates on the wing are integral parts
of joining the wing properly. Make sure these items
are glued securely to the wing to prevent wing
failure.
Receiver Installation - PNP
Required Parts
Fuselage assembly Hook and loop tape
Two-sided tape
Y-harness (2)
Receiver Clear tape
Two-sided tape
Optional Parts
Y-harness (included with optional retracts)
 1. Remove the canopy hatch from the fuselage
by lifting the hatch at the rear. The canopy hatch
attaches to the fuselage using a magnet at the rear
and pins at the front.
 2. Locate the two included Y-harnesses. One will
plug into the AIL port of the receiver, the other into
the AUX port. These will be for the flaps and ailerons
of your model. We recommend using a piece of low-
tack tape to identify the flap harness from the outside
of the fuselage when installing the wing.
 3. Plug the leads from the elevator and rudder
servos into their respective ports of the receiver. Also
plug the extension from the speed control into the
THRO port of the receiver.
