14 E-flite Hurricane 25e PNP/BNF Assembly Manual
EN

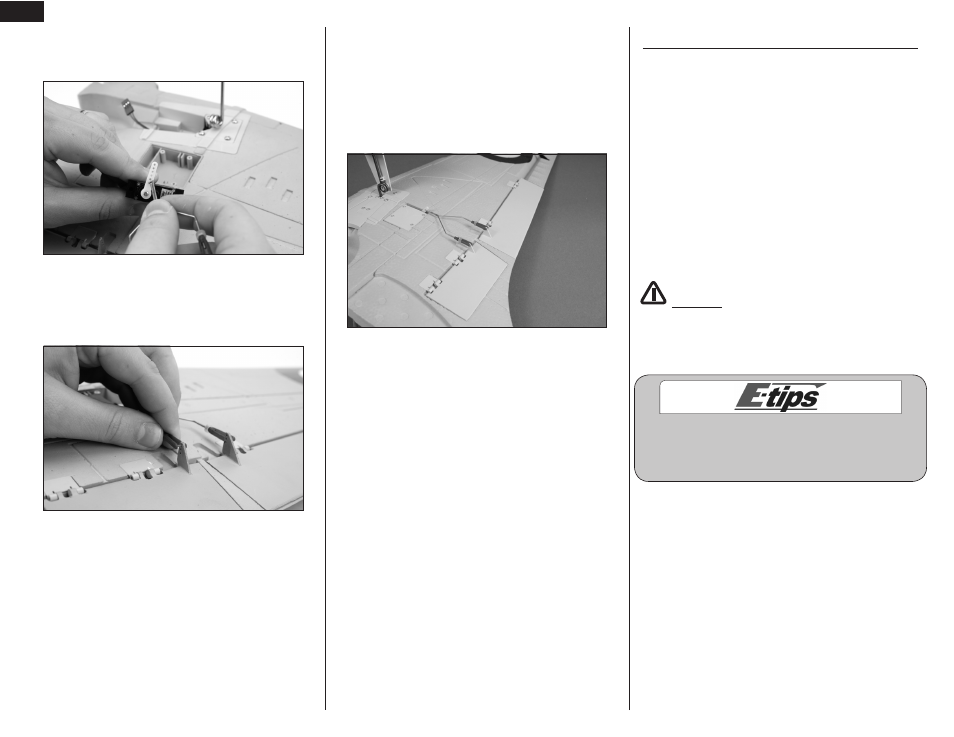

 2. Insert the bend in the flap linkage in the
innermost hole in on the flap servo arm. Remove the
tape from the flaps at this time as well.
 3. Enter the radio programming and set the flap
throw to 100% for both UP and DOWN positions,
and verify that in the UP position, the servo arm
moves towards the trailing edge of the wing.
 4. Move the switch on the radio to the UP flap
position. Thread the clevises onto the pushrods so
and connect them to the outermost hole in the control
horn. Ensure that they are the proper length and
that they are not so long that they bind the flap into
the bottom of the wing, nor are too short that they
prevent the flap from seating against the underside
of the wing.
 5. Repeat steps 1 through 4 to install and adjust
the remaining flap linkage. Start by adjusting the
linkage in the UP position. The Mid and down
position should match those from the first wing
panel. Make sure to slide the silicone tubing over the
forks of the clevises to prevent them from opening
in flight. You will note the inner flap travels slightly
further down than the outer flap. This is normal.
Joining the Wing Panels - BNF/PNP
Required Parts
Rear wing bolt plate
Center wing bolt plate
Forward wing dowel plate
3mm x 10mm countersunk self-tapping screw (2)
Radiator scoop
Intake scoop
Carbon fiber wing tube
Wing panel (right and left)
Required Tools and Adhesives
30-minute epoxy Mixing stick
Mixing cup Epoxy brush
Phillips screwdriver: #1
CAUTION: You must join the wings as shown in
this manual. Failure in joining the wing panels may
result in the loss of your model. Do not fly your
model without properly joining the wings.
Before joining the wing panels, we highly recommend
test fitting all parts before mixing epoxy. If the epoxy
begins to cure before parts are assembled, it will be
difficult to reuse items where epoxy has been applied.
