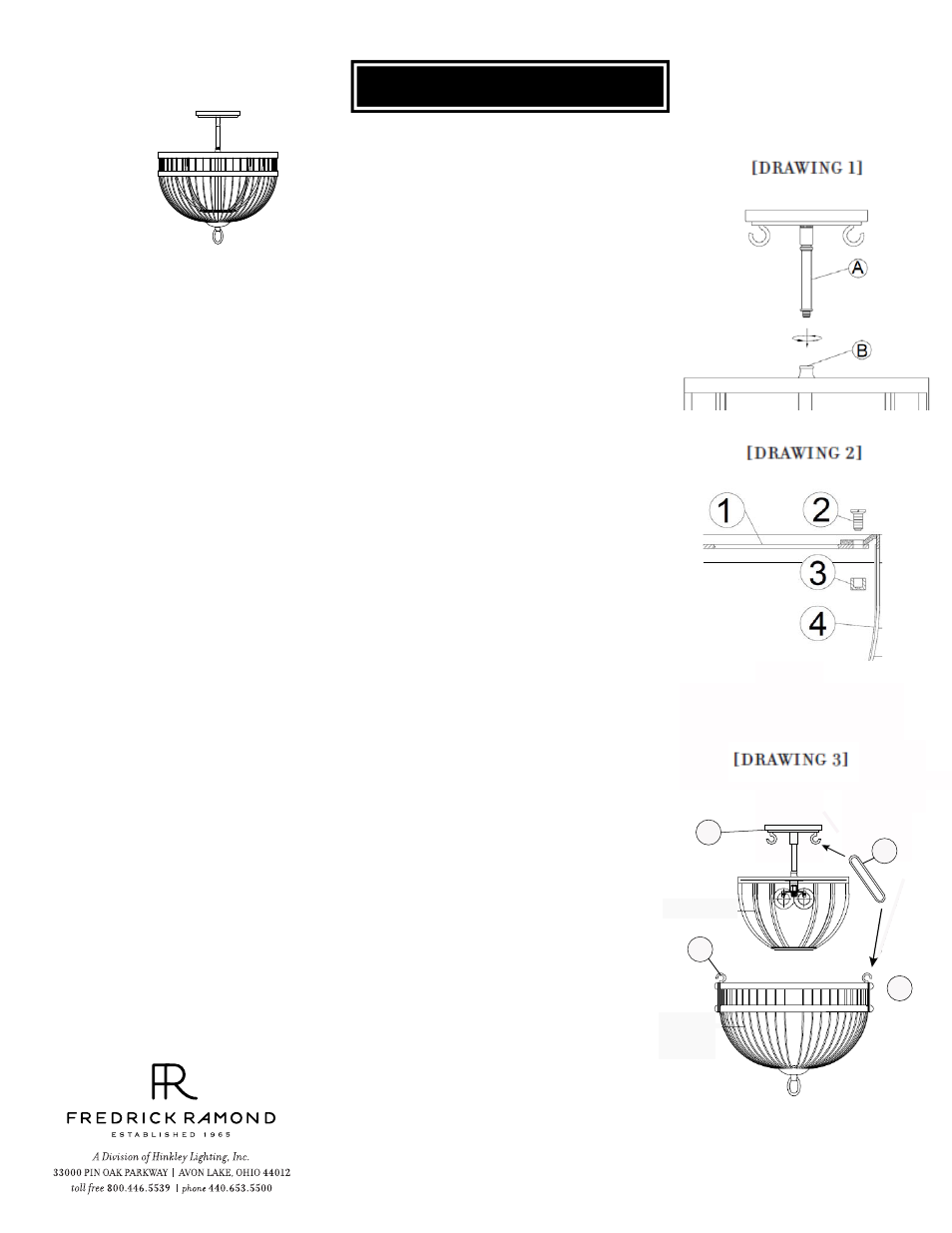

ASSEMBL Y INSTR U CTI O NS

The construction of this fixture will be accomplished by first assembling the main body

of the fixture, making all necessary electrical connections, hanging the fixture from the

ceiling and then installing the fixture shade.

SAFETY WARNING:

Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.

FR42873vbz

AvA

STEP 1

Slide the glass (4) onto the cross bar (1) align screw holes, and slip screw (2)

through the screw holes in the crossbar (1) and shade mounting tab. Then thread

the cap (3) onto screw to secure shade.- See

Drawing 1

.

STEP 2

Refer to Hanging Instruction Sheet [FRIS19-41] to hang fixture. Then refer

back to this sheet to continue fixture installation.

STEP 3

Slide the socket wires up through stem (A) and then thread the cluster assembly

(B) onto fixture rod (A) - See

Drawing 1.

STEP 4

Take the oval rings

and hook them through the corresponding hooks on the

ceiling mount (a), then attach cage (d) by hooking the other end of the oval ring (c)
to the hook (d) on cage (e) . – See Drawing 3.


1

1

(c)

a

d

e

c
