assembly instructions
Family: Whitney Item No. 4610
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To mount fixture, slip center hole of backplate (E) over nipple (C) and hold fixture in
position - see Drawing 1.
2. Thread decorative knob (D) onto end of nipple (C) and tighten to secure fixture.
*** The construction of this fixture will be accomplished by first attaching the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then installing the glass.
start here
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Note: Maximum wattage for 4610 fixture is 60 watts per bulb.

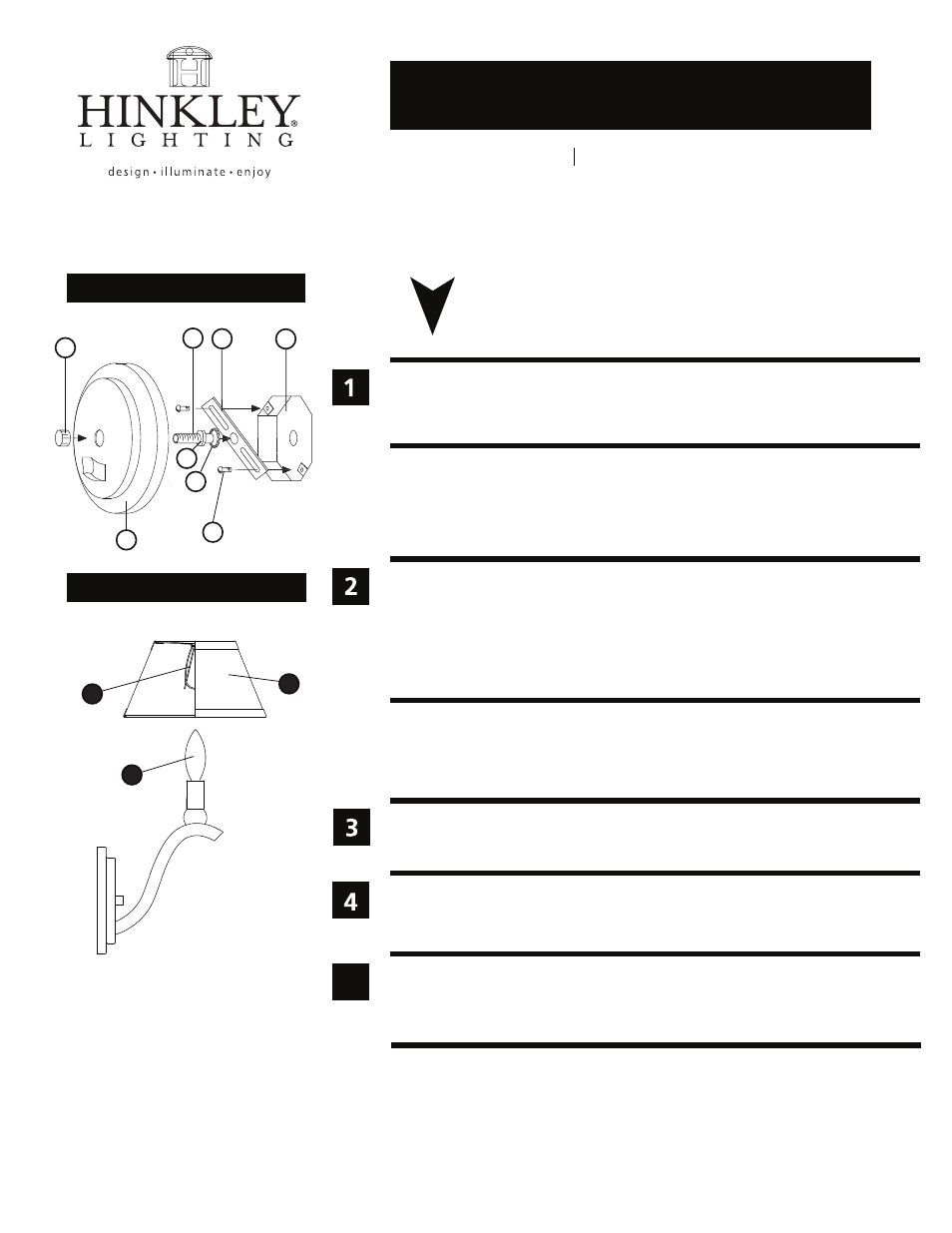

Drawing 1 - Fixture Mounting
Drawing 2 - Glass Installation
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5
01.01.12
1. Prepare mounting strap (A) by threading 1-5/8” nipple into the center hole of the
mounting strap (A), approximately 1/4“.- see Drawing 1.
2. Attach mounting strap (A) to junction box (J) using two 1” screws (B ) provided.
3. Slip lock washer (F1) over nipple (C) and thread hex nut (F) onto nipple (C).
4. Hex nut (F) can be tightened against mounting strap (A) after adjusting nipple (C) to
proper mounting length.
4610
A J
B
F
F1
C
D
E
1. Fixture can be lamped accordingly. Torpedo style candle bulbs recommended.
Flame tip candle bulbs are not recommended, they may cause problems getting the
shade to set level.
2. To install shade (2) slip shade clip (3) over bulb (1) and straighten.
1
2
3
