AR60X Installation Manual
580­00517, rev B 28
4 Radio Link Status Indicators
During normal operation, the following conditions should exist at the radio:
· The power LED should be lit—solid green;
· The fiber LED should be lit—solid green;
· The Link Up LED should be lit—solid green;
· The Link Quality BER voltage should be 3.3V, although dips in voltage are acceptable
during periods of precipitation.
· 10/100Base­T LEDs (each side next to socket opening); left should be green if connected
(link up) and right flashing yellow indicates activity

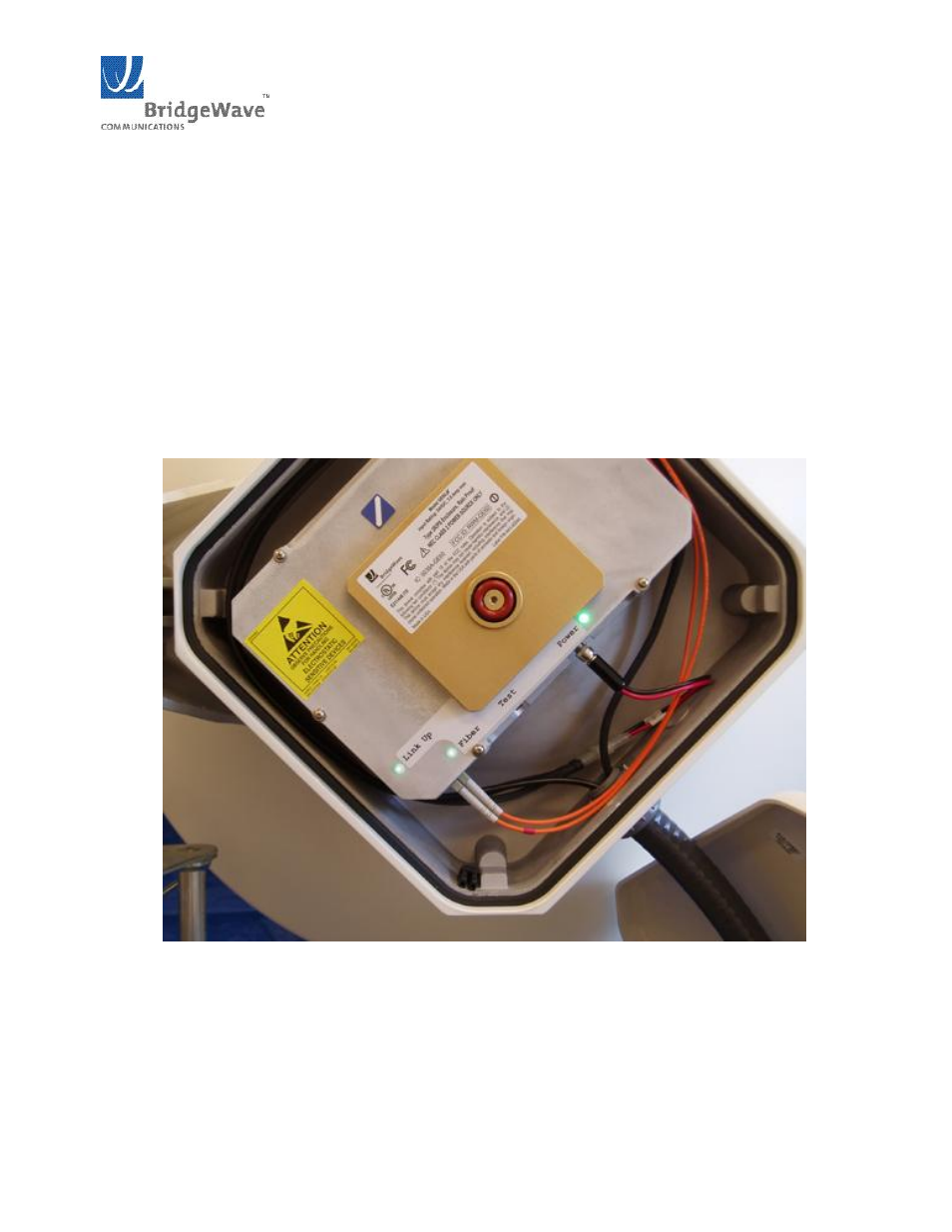

Figure 4­1: Link Up, Fiber and Power LED’s indicating link is up and operating
The radios do not require periodic maintenance. However, each end of the link should be periodically
inspected for visible damage or excessive accumulation of dirt on the antenna’s radome.
