580­00517, rev B 26
3.3
3.0
2.0
1.7
0.3
NO
ERRORS
CORRECTED
ERRORS
UNCORRECTED
ERRORS
Correctable Errors Detected
Uncorrectable Errors Detected
Deframer Unlocked (Link Down)
0 0 Errors
Q
U
AL
V
o
lt
a
g
e
(
V
D
C
)
0.0

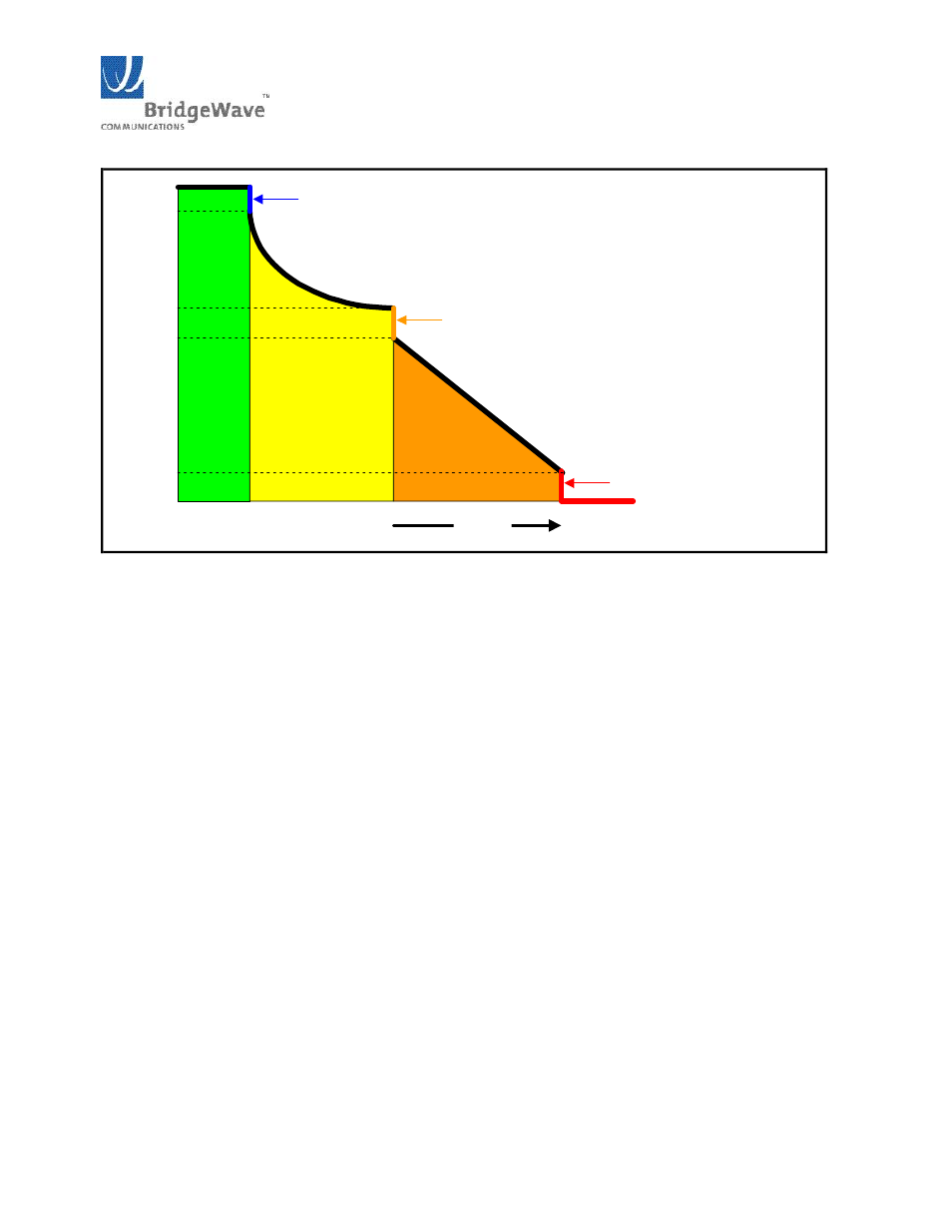

Figure 3­10 Quality Voltage Graph
· Quality Voltages between 3.0V and 3.3V indicate an error­free wireless link.
· Quality Voltages between 1.5V and 3.0V indicate a low rate of errors, that the forward error
correction will correct. The lower the voltage, the more errors are being corrected.
· Quality Voltages between 0.5V and 1.0V indicate excessive errors in the wireless link that can
not be corrected by the FEC. To indicate this change in error performance, the quality voltage
will drop from 1.5V to 1.0V in a single step.
· Quality Voltages below 0.5V indicate an unlocked deframer condition. This will be recognized
as a link­down condition.
