BridgeWave AR60X - Manual (Page 13)

AR60X Installation Manual
7 580­00517, rev B
2.9 Cabling Diagram

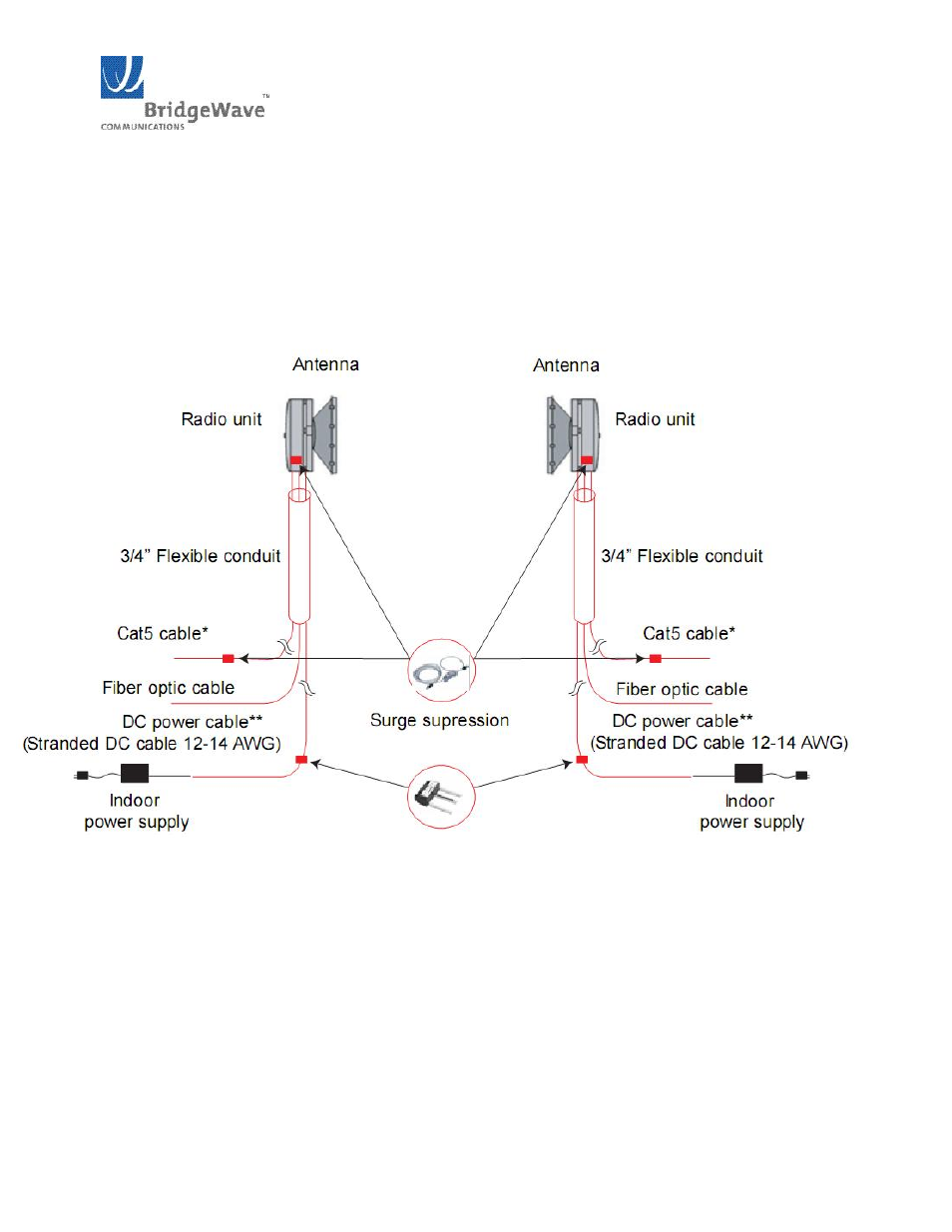

Following is a diagram detailing the equipment and cabling found on a typical installation of
BridgeWave’s 60GHz radio equipment.
