AR60X Installation Manual
17 580­00517, rev B
It is very important that the azimuth bolts are tightened before any
elevation adjustment is done. The very narrow beamwidth of this
antenna (0.6º) makes it necessary to completely tighten the bolts of
the azimuth adjustment while adjusting the elevation and vice
versa.
8. Adjust elevation (up ­ down)

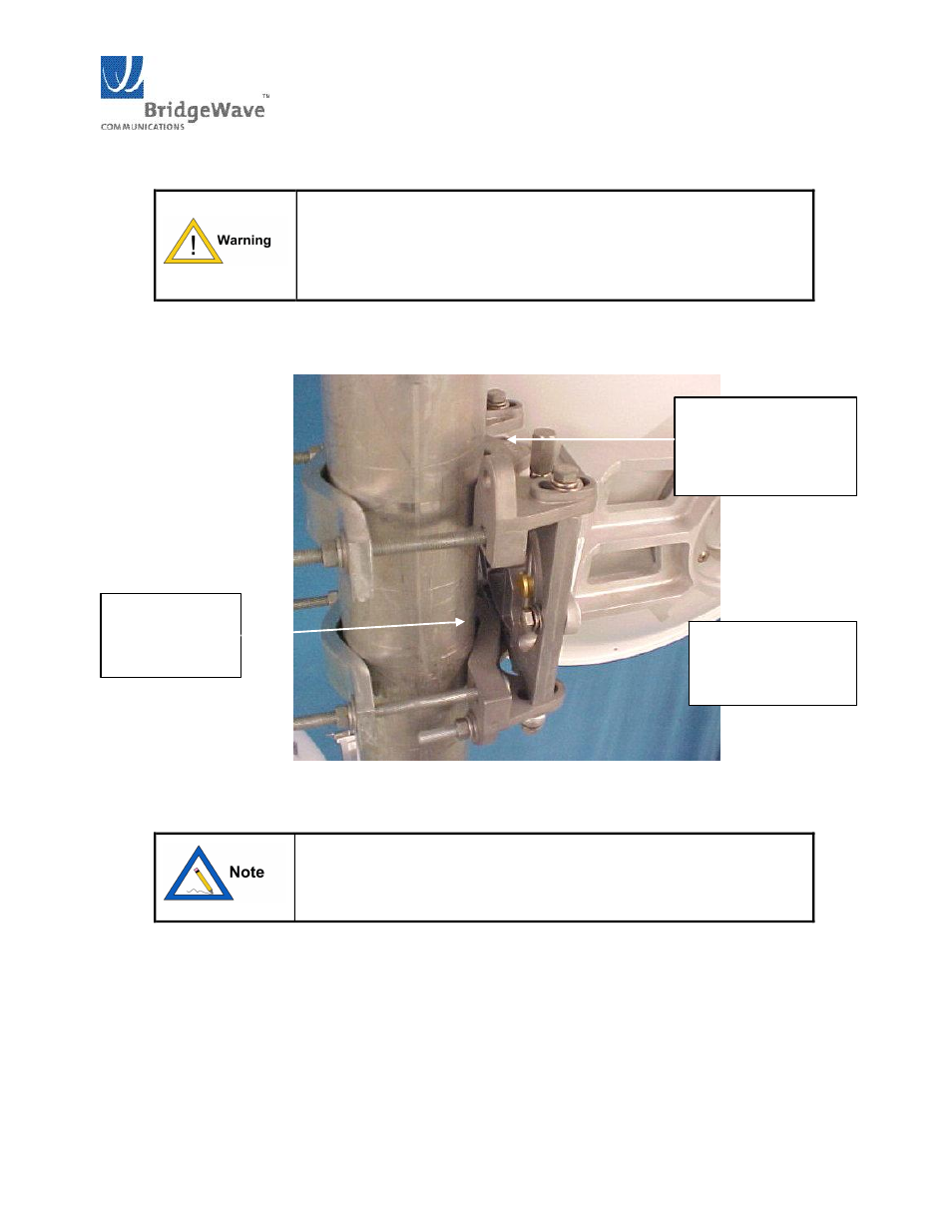

Figure 3­12 Elevation (up/down) adjustment
Begin the alignment process with the antenna in a level attitude.
When adjusting elevation, it is better to start in a low attitude and
raise the antenna to the proper position than to start high and
work towards a low elevation setting.
1. Loosen (2)
antenna
mounting bolts
2. Rotate Elevation
adjust hex nut as
required to set
correct elevation.
3. Tighten all bolts
after the elevation
is set.
