AR60X Installation Manual
580­00517, rev B 20

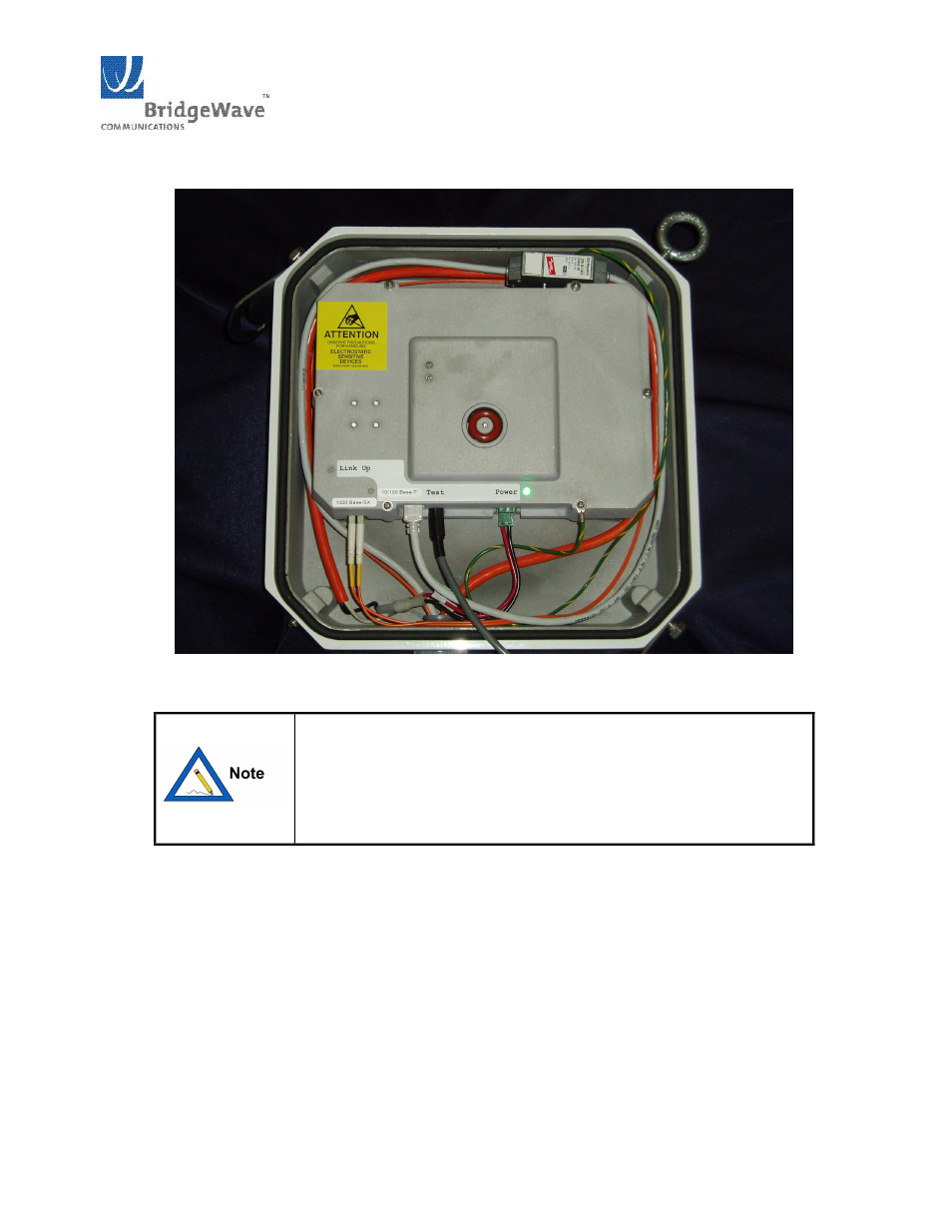

Figure 3­14: Inside view of fiber, power and Cat 5 cable connected
The fiber cable is inserted through the fitting before the conduit is
connected to the fitting. Ensure that the cables do not get pinched
when the conduit is pushed onto the fitting. Both the cables have
been looped around the inside of the enclosure to minimize tension
on the cables when connected to the radio and to maintain proper
bend­radius of the fiber cable.
Ground Cabling
The preferred method for grounding the radio unit is to ground the mast (or wall­mount bracket) to a
ground source, since this provides the largest grounding surface contact possible. If this is not
possible, then use the following procedure:
1. Attach the lug of the ground cable (not provided) with the radio to one of the two #8 holes at the
bottom of the radio using a #8­32 x ½” long bolt, #8 lock washer and #8 flat washers (not
provided).
2. Connect other end of the ground cable to a nearby building exterior ground location.
