Hinkley Lighting PRINCETON 4073BN - Manual

assembly instructions
Item No. 4073
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the main
body of the fixture, making all necessary electrical connections, hanging the fixture
from the ceiling and then installing the fixture shade.
start here
4073
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Note: It will be necessary to determine the length of rods you will require to hang your
fixture at the desired height. After this has been established, please follow the
instructions below.

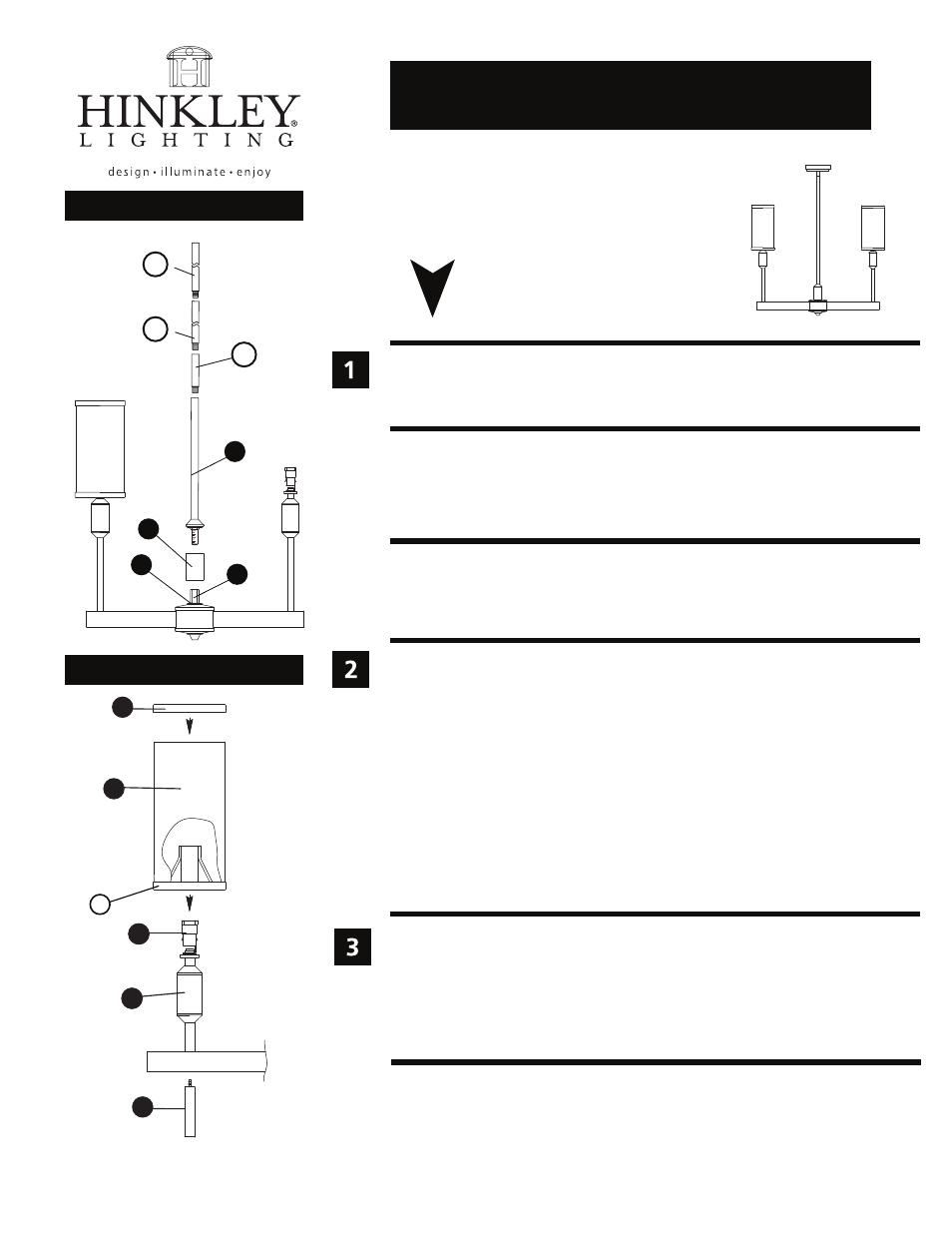

Drawing 1 - Assembly
Drawing 2 - Assembly
1.1.13
3. Slip first rod section (B) along wire and thread into top of main fixture body (A).
4. Slip next section of rod (C) along wire and thread into top of previously installed
rod.
5. Continue adding sections of rod until all necessary length have been attached to
the fixture.
6. Fixture can now be mounted to the ceiling by following mounting instruction sheet
(IS19-81) provided.
1. Slip center tube (2) and slip over upset on top of main body (1) - see Drawing 1.
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
2. Slip center column (3) along wire and thread into coupler (4) located on top of
main body (1) and tighten.
8
2 5
26
7
H
1. To assembly shade first slip candle sleeve, shade harp, and glass (7) over socket (6)
on main body (5) - see Drawing 2.
3
. Fixture should be lamped accordingly at this time.
. Slip ring (8) onto top of glass (7).
4. Thread tail piece (9) into bottom of arm.
9
B
C
A
2
1
4
3
