FR44103
BARCELONA
Bulbs:
75W MED.
Replacement Parts:

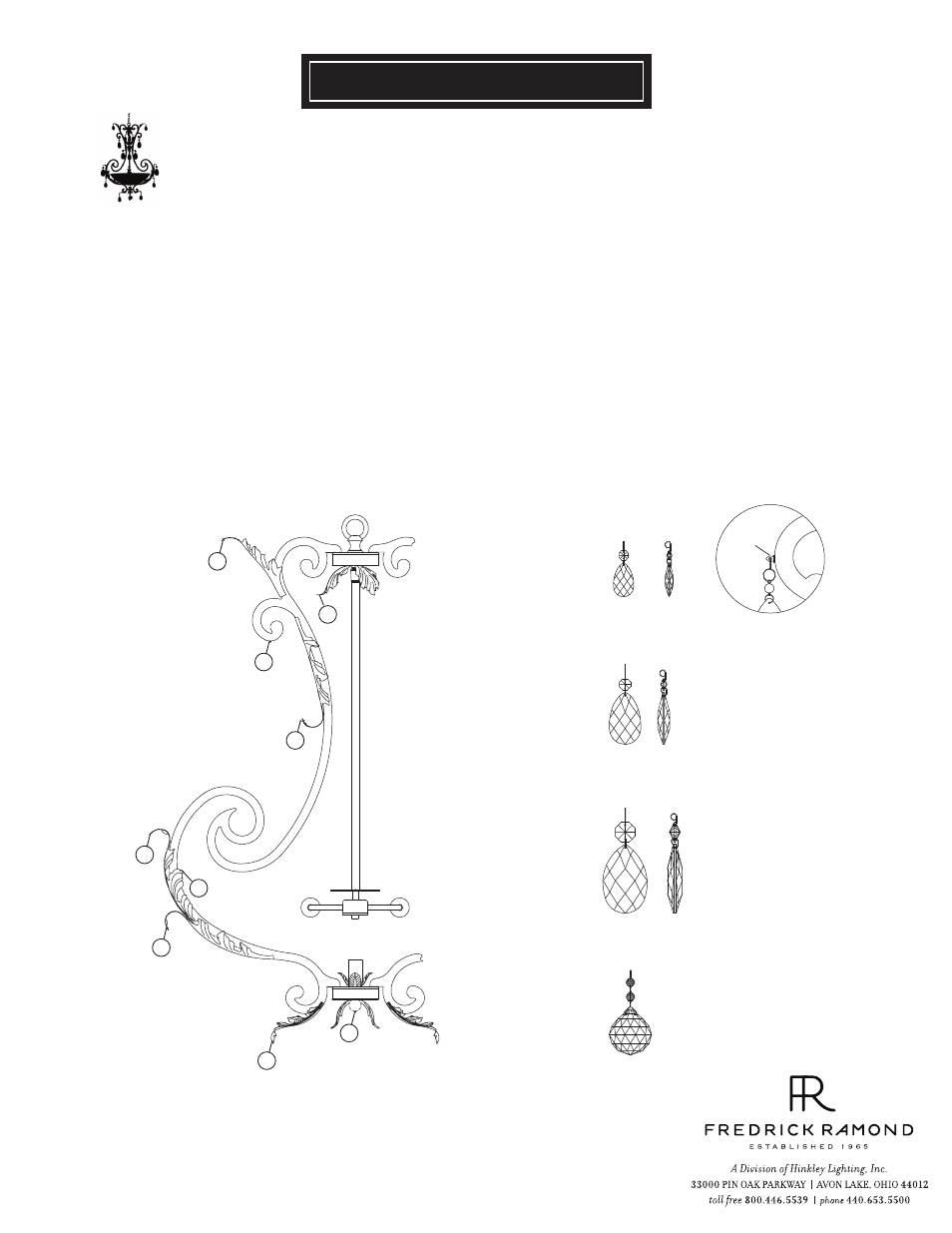

CRYSTAL INSTALLATION INSTRUCTIONS
This Barcelona chandelier use 4 sizes of crystals pendalogues.
STEP 1
1 Starting at the top of the fixture and working your way down, attach medium size pear shape crystal (2) to eyelet (b).
2 Attach large pear shaped crystal (3) to eyelet (c).
3 Attach small pear shaped crystal (1) to eyelet (a).
4 Attach large crystal ball (4) to eyelet (d).
5 Repeat steps 1-4 for remaining arms.
eyelet
crystal 1
crystal 2
crystal 3
crystal 4
crystal 2
b
c
c
c
b
b
d
b
a
