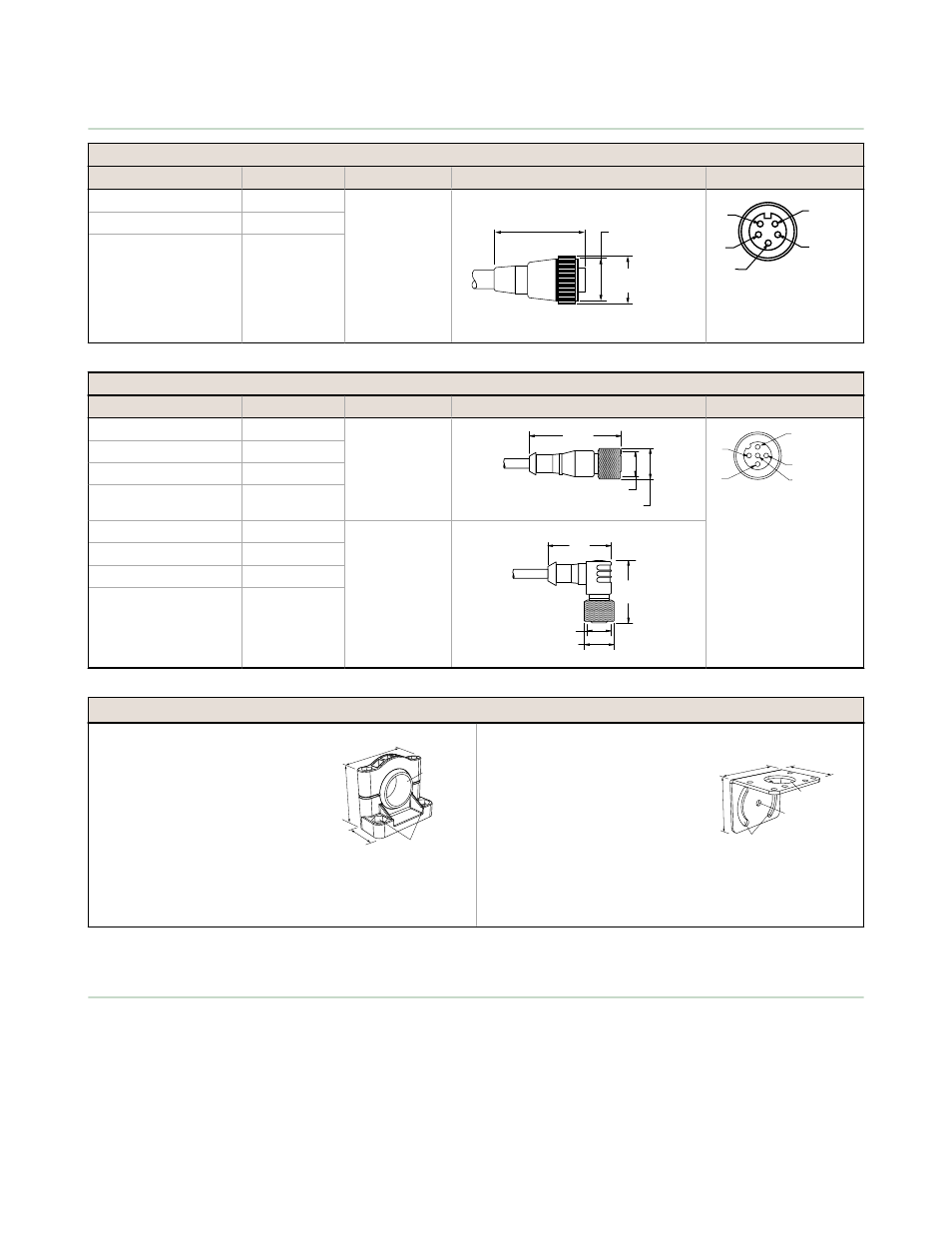

Accessories
5-Pin Mini-Style Cordsets with Shield
Model Length Style Dimensions Pinout (Female)
MBCC2-506 1.83 m (6 ft)
Straight
7/8-16UN-2B
ø 28 mm max.
(1.1")
61 mm max.
(2.4")
4
3 1
5
2
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Yellow
MBCC2-515 4.57 m (15 ft)
MBCC2-530 9.14 m (30 ft)
5-Pin Threaded M12/Euro-Style Cordsets with Shield
Model Length Style Dimensions Pinout
MQDEC2-506 1.83 m (6 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
MQDEC2-515 4.57 m (15 ft)
MQDEC2-530 9.14 m (30 ft)
MQDEC2-550 15.2 m (50 ft)
MQDEC2-506RA 1.83 m (6 ft)
Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDEC2-515RA 4.57 m (15 ft)
MQDEC2-530RA 9.14 m (30 ft)
MQDEC2-550RA 15.2 m (50 ft)
Brackets
SMB30SC
• Swivel bracket with 30 mm
mounting hole for sensor
• Black reinforced
thermoplastic polyester
• Stainless steel mounting and
swivel locking hardware
included
67
58
29
B
A
Hole center spacing: A=ø 50.8
Hole size: A=ø 7.0, B=ø 30.0
SMB30MM
• 12-ga. stainless steel bracket
with curved mounting slots
for versatile orientation
• Clearance for M6 (¼ in)
hardware
• Mounting hole for 30 mm
sensor
70
57
A
B
C
57
Hole center spacing: A = 51, A to B = 25.4
Hole size: A = 42.6 x 7, B = ø 6.4, C = ø 30.1
