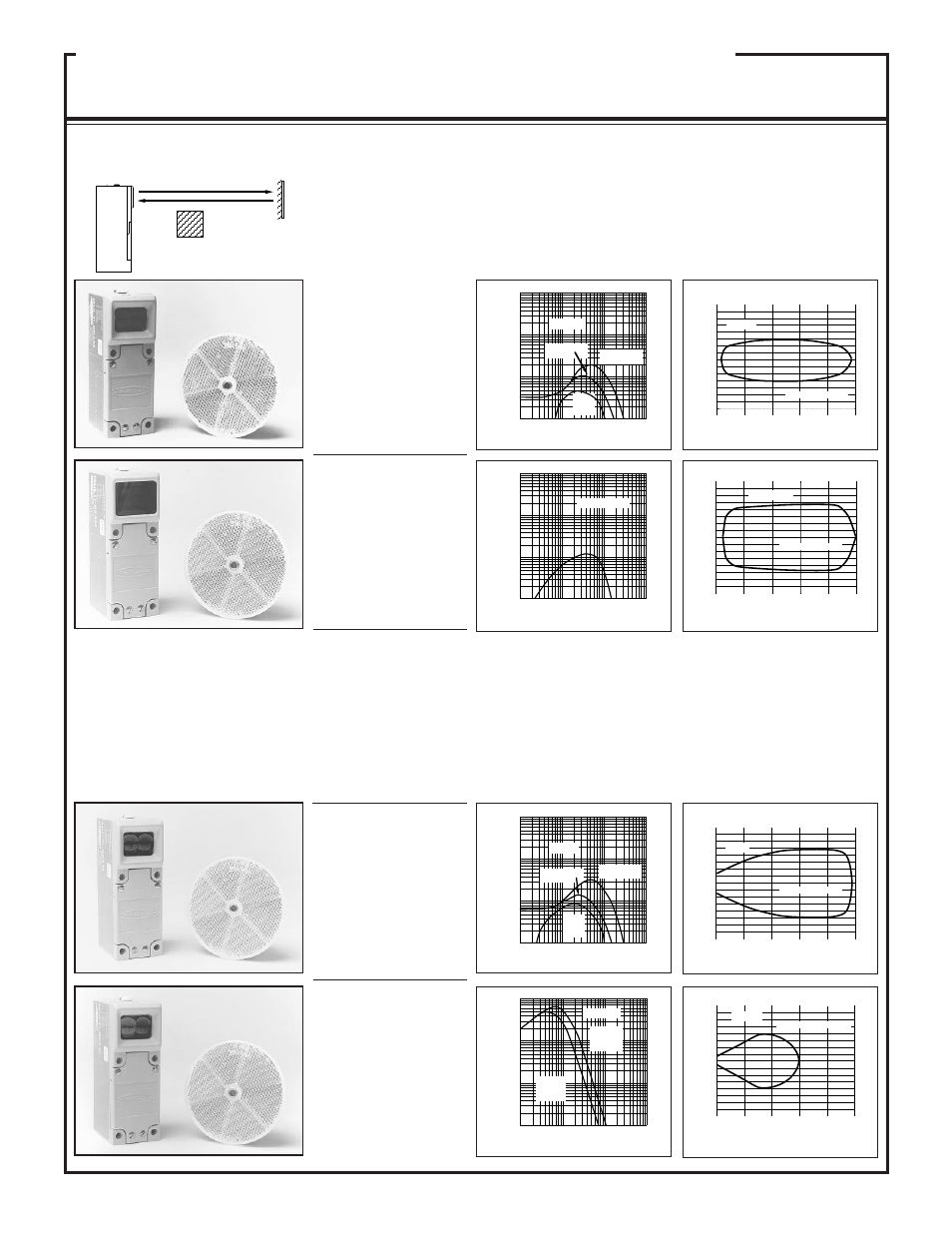

Banner MULTI-BEAM Series - Manual (Page 8)

RETROREFLECTIVE
Mode
SBLV1: visible beam makes alignment very easy, and is the first choice for most retroreflective applications.
Not for use in dirty environments; rather use opposed mode or see SBL1 & SBLX1, below. Do not locate
retroreflector closer than 6 inches (15cm) from sensor.
SBLVAG1: uses anti-glare filter for immunity to direct reflections from shiny objects. Use only with models
BRT-3 or BRT-1.5 retroreflective targets. Use only in clean environments. Do not locate retroreflector closer
than 12 inches (30cm) from sensor.
SBL1: use where invisible beam is advantageous (e.g. security applications or film processing). First choice for
retroreflective sensing in slightly or moderately dirty environments. Do not use when the object to break the
beam has a shiny surface, unless the angle of light to the surface can be predicted.
SBLX1: highest gain available in a retroreflective sensor. Use for all applications requiring more than 30-foot
range where opposed mode sensors cannot be used. Objects must pass at a distance of at least 10 feet from the
sensor to be reliably sensed.
NOTE: for detailed information on
available retroreflective materials, see
the Banner product catalog.
SBLV1
Range: 6 in. to 30 ft.
(0,15 to 9m)
Response: 1ms on/off
Repeatability: 0.3ms
Beam: visible red, 650nm
SBLVAG1
Range: 12 in. to 15 ft.
(0,3 to 4.5m)
Response: 1ms on/off
Repeatability: 0.3ms
Beam: visible red, 650nm
SBL1
Range: 1 in. to 30 ft.
(2,5cm to 9m)
Response: 1ms on/off
Repeatability: 0.3ms
Beam: infrared, 940nm
SBLX1
Range: 10 to 75 ft. (3 to
22m) with one BRT-3 target;
10 to 100 ft. (3 to 30m) with
three BRT-3 targets
Response: 10ms on/off
Repeatability: 1.5ms
Beam: infrared, 880nm
MULTI-BEAM
3- & 4-wire Scanner Blocks
10
1
DISTANCE
100
1000
.1 FT 1 FT 10 FT 100 FT
with BRT-3 3"
reflector
with BRT-1 1"
reflector
with
BRT-T
tape
SBLV1 E
X
C
E
S
S
G
A
I
N
I
10
1
DISTANCE
100
1000
.1 FT 1 FT 10 FT 100 FT
E
X
C
E
S
S
G
A
I
N
I
SBLVAG1
10
1
DISTANCE
100
1000
.1 FT 1 FT 10 FT 100 FT
with BRT-3 3"
reflector
with BRT-1 1"
reflector
with
BRT-T
tape
SBL1 E
X
C
E
S
S
G
A
I
N
I
10
1
DISTANCE
100
1000
1 FT
with one
BRT-3 3"
reflector
SBLX1
with three
BRT-3 3"
reflectors
10 FT 100 FT 1000 FT
E
X
C
E
S
S
G
A
I
N
I
0
0
2
4
6
2
4
6
6 12 18 24 32
I
N
C
H
E
S
SBLV1
DISTANCE TO REFLECTOR--FEET
with BRT-3 reflector
0
0
1
2
3
1
2
3
3 6 9 12 15
I
N
C
H
E
S
SBLVAG1
DISTANCE TO REFLECTOR--FEET
with BRT-3 reflector
0
0
2
4
6
2
4
6
6 12 18 24 32
I
N
C
H
E
S
SBL1
DISTANCE TO REFLECTOR--FEET
with BRT-3 reflector
0
0
10
20
30
10
20
30
25 50 75 100 125
I
N
C
H
E
S
SBLX1
DISTANCE TO REFLECTOR--FEET
with one BRT-3 reflector
OBJECT
RETRO
TARGET
8
Models Excess Gain Sensing Mode Beam Pattern
