Banner MULTI-BEAM Series - Manual (Page 31)

MBCC-412
RF1-2NPS
MBC-4

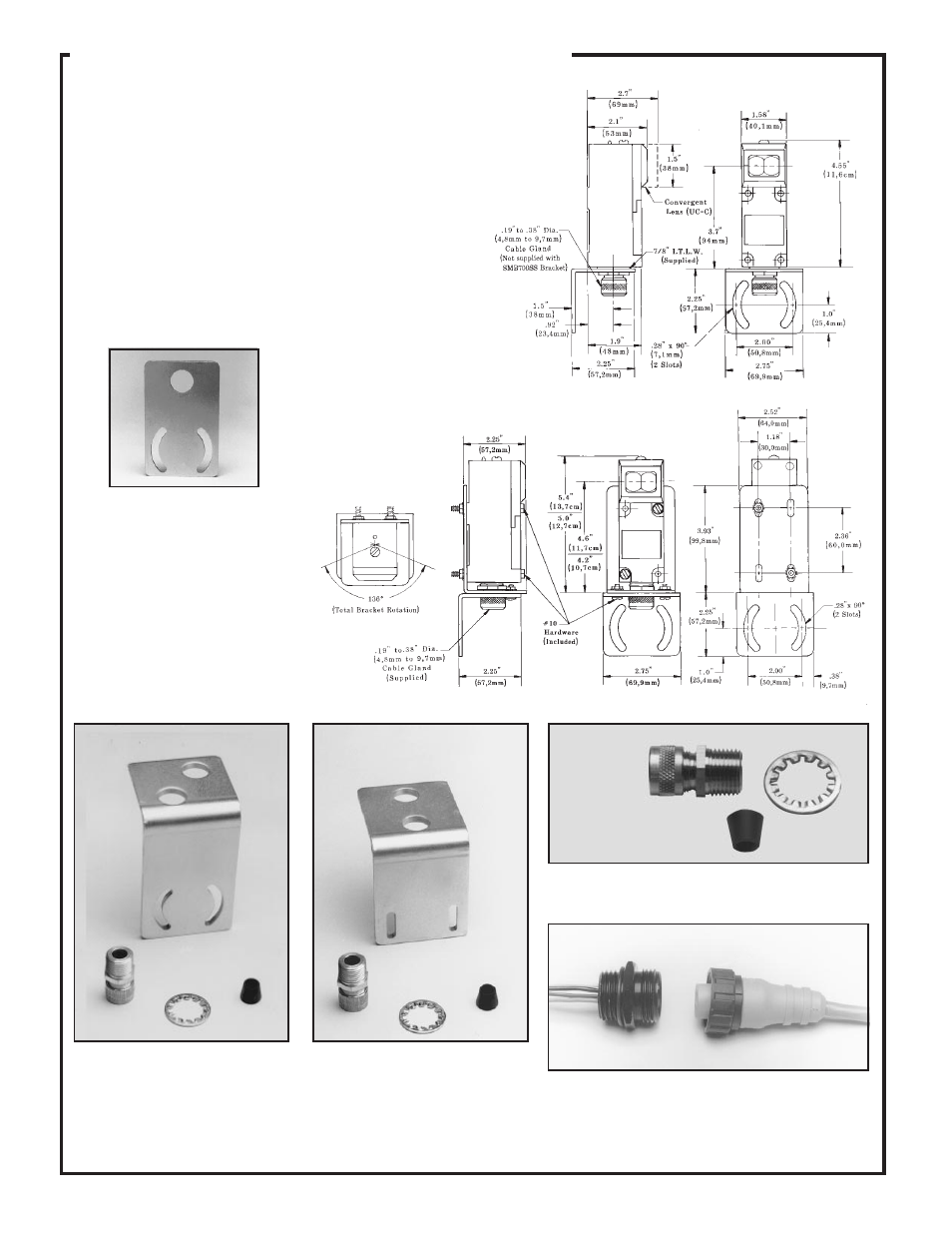

Model SMB700 (right) is a general-purpose two-axis mount-
ing bracket that is supplied with a cable gland assembly which
is used to attach the MULTI-BEAM wiring base to the bracket.
The gland assembly is threaded through the bracket and into the
conduit entrance at the base of the scanner block. A large lock-
washer is supplied to hold the scanner block firmly in place. The
bracket is 11-gauge zinc plated steel.
Mounting Brackets
Cable gland assembly for MULTI-BEAMs. Includes cord
grips for .1 to .4 inch diameter cable. Bracket lockwasher
is also included.
MBC-4 is a 4-pin male industrial-duty connector that
threads into the base of all MULTI-BEAMs. MBCC-412
is a 12-foot long (3,6m) "SJT" type cable. It is interchange-
able with standard industry types of several different manu-
facturers.
Heavy-duty 1/4-inch (6mm) zinc plated
steel bracket that allows the MULTI-
BEAM to retrofit to installations of
MICRO-SWITCH models MLS8 or
MLS9 sensors. Includes cable gland
and lockwasher. Heavy duty 1/4-inch (6mm) zinc plated
steel bracket that allows the MULTI-
BEAM to retrofit to installations of
PHOTOSWITCH series 42RLU and
42RLP sensors. Includes cable gland
and lockwasher.
31
SMB700
SMBLS
MULTI-BEAM Accessories
SMB700P
Model SMBLS (right) is a two-part
bracket assembly which allows adjust-
ment in three directions. It consists of
two 11-gauge zinc plated steel right-
angle brackets which fasten together so
that they rotate relative to each other.
The MULTI-BEAM wiring base at-
taches to the upper bracket and slots are
provided for vertical adjustment. The
bottom bracket is a modified version of
the SMB700. Assembly hardware and a
cable gland are included.
Model SMB700SS is an 11-gauge stainless steel version of the
SMB700. It is sold alone, without the cable gland assembly and
lockwasher.
Model SMB700F (photo, below) is a flat, single-axis version
of the SMB-700. It is sold without hardware.
SMB700M
