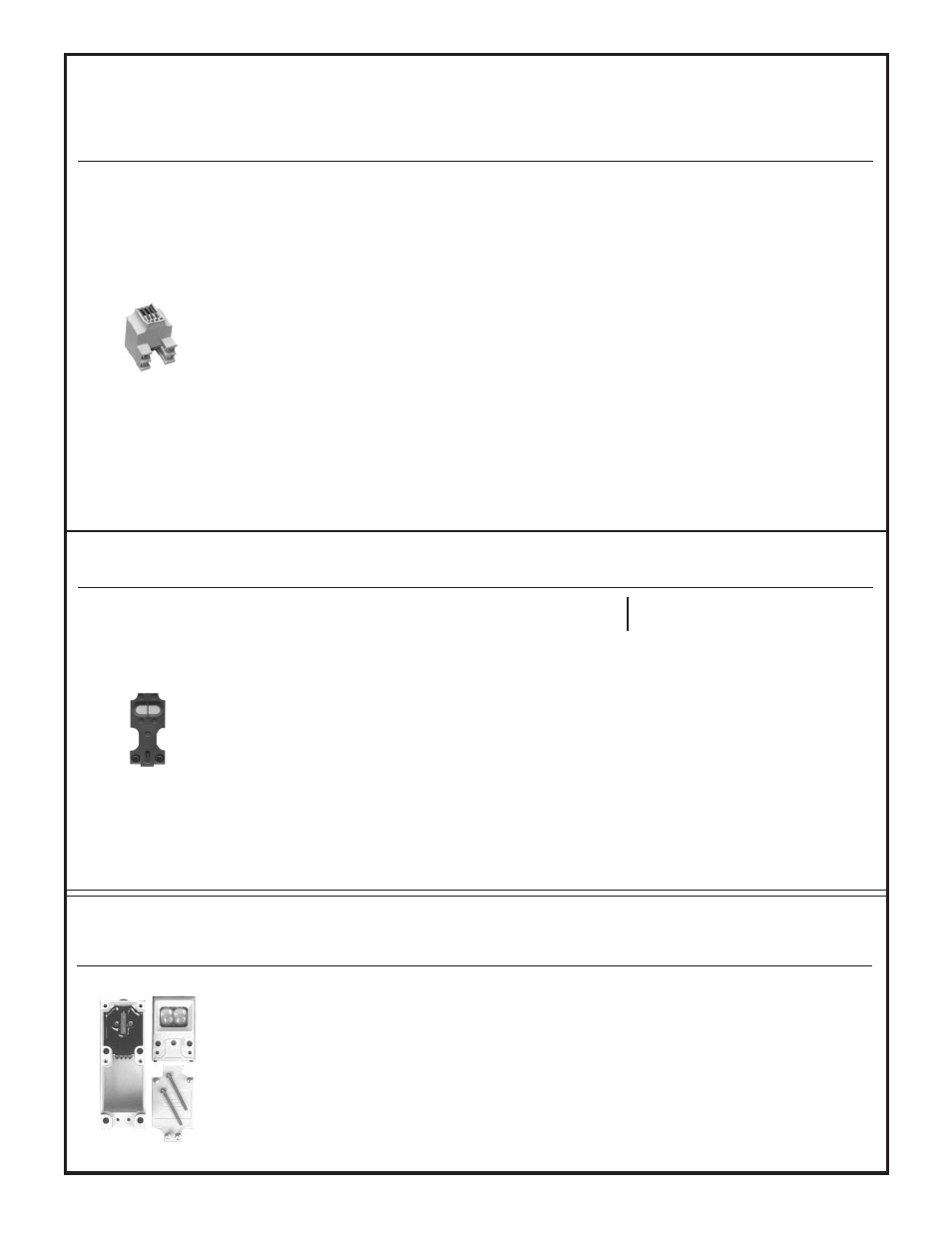

Logic Modules Model Timing Logic Function Time Range(s) Page
LM1 ON/OFF (no timing function), light operate only NOTE for items below: other p. 21
LM3 ON/OFF (no timing function), light or dark operate time ranges available (p. 23) p. 21
LM5 ON-delay .15 to 15 seconds p. 22
LM5R OFF-delay .15 to 15 seconds p. 22
LM5-14 ON & OFF delay .15 to 15 seconds (both delays) p. 22
LM5T Limit timer (time-limited ON/OFF) .15 to 15 seconds p. 22
LM4-2 One-shot, retriggerable .01 to 1 second p. 21
LM4-2NR One-shot, non-retriggerable .01 to 1 second p. 22
LM8-1 Delayed one-shot .15 to 15 seconds (both times) p. 23
LM8A ON-delay one-shot .15 to 15 seconds (both times) p. 23
LM6-1 Rate sensor 60 to 1200 pulses per minute p. 22
LM8 Repeat cycle timer .15 to 15 seconds (both times) p. 23
LM2 Alternate action, divide by 2 p. 21
LM10 Alternate action, divide by 10 p. 23
LMT Test module p. 23
3- and 4-wire Systems
(pages 6 through 23)
2-wire Systems
(pages 24 through 29)
Agency
Power Blocks Model Input Voltage Output Configuration Approvals Page
PBT 10 to 30V dc SPST NPN (sink), 250mA maximum UL & CSA p. 15
PBT2 10 to 30V dc SPDT NPN (sink), 250mA each output p. 15
PBP 10 to 30V dc SPST PNP (source), 250mA maximum UL & CSA p. 15
PBT-1 10 to 30V dc No output: for powering emitters UL & CSA p. 16
PBT48 44 to 52V dc SPST NPN (sink), 250mA maximum p. 15
PBP48 44 to 52V dc SPST PNP (source), 250mA maximum p. 15
PBT48-1 44 to 52V dc No output: for powering emitters p. 16
PBD-2 11 to 13V ac (50/60Hz) SPST SCR, 3/4 amp maximum p. 17
PBD 22 to 28V ac (50/60Hz) SPST SCR, 3/4 amp maximum UL & CSA p. 17
PBD-1 22 to 28V ac (50/60Hz) No output: for powering emitters p. 19
PBA 105 to 130V ac (50/60Hz) SPST SCR, 3/4 amp maximum UL & CSA p. 17
PBAQ 105 to 130V ac (50/60Hz) SPST SCR, normally closed, 3/4 amp max. UL & CSA p. 19
PBAT 105 to 130V ac (50/60Hz) SPST isolated transistor, 100mA max. (ac or dc) UL & CSA p. 18
PBO 105 to 130V ac (50/60Hz) SPST isolated transistor, 50mA max. (dc only) UL & CSA p. 18
PBAM 105 to 130V ac (50/60Hz) Voltage source: 8V dc at 8ma max. UL & CSA p. 18
PBA-1 105 to 130V ac (50/60Hz) No output: for powering emitters UL & CSA p. 19
PBB 210 to 250V ac (50/60Hz) SPST SCR, 3/4 amp maximum UL & CSA p. 17
PBBT 210 to 250V ac (50/60Hz) SPST isolated transistor, 100mA max. (ac or dc) UL & CSA p. 18
PBOB 210 to 250V ac (50/60Hz) SPST isolated transistor, 50mA max. (dc only) UL & CSA p. 18
PBB-1 210 to 250V ac (50/60Hz) No output: for powering emitters UL & CSA p. 19
Scanner Blocks Model Sensing Mode Range Response Page
SBE & 2SBR Opposed 150 feet 10 milliseconds p. 25
2SBL1 Retroreflective 30 feet 10 milliseconds p. 25
2SBD1 Diffuse (proximity): short range 12 inches 10 milliseconds p. 26
2SBDX1 Diffuse (proximity): long range 30 inches 10 milliseconds p. 26
2SBC1 Convergent beam 1.5-inch focus 10 milliseconds p. 25
2SBC1-4 Convergent beam 4-inch focus 10 milliseconds p. 25
2SBF1 Fiberoptic see specs 10 milliseconds p. 26
5
