Banner MINI-BEAM Series User Manual

Page 5

Right-Angle Reflectors

RAR-300SM

•

Side mount reflector

•

Profile dimension of 14 mm (0.56 inches) in the direction
of the scan

RAR-300FM

•

Front mount reflector that attaches directly to the
threaded barrel of most MINI-BEAMs

•

Profile dimension of 34 mm (1.35 inches) in the direction
of the scan

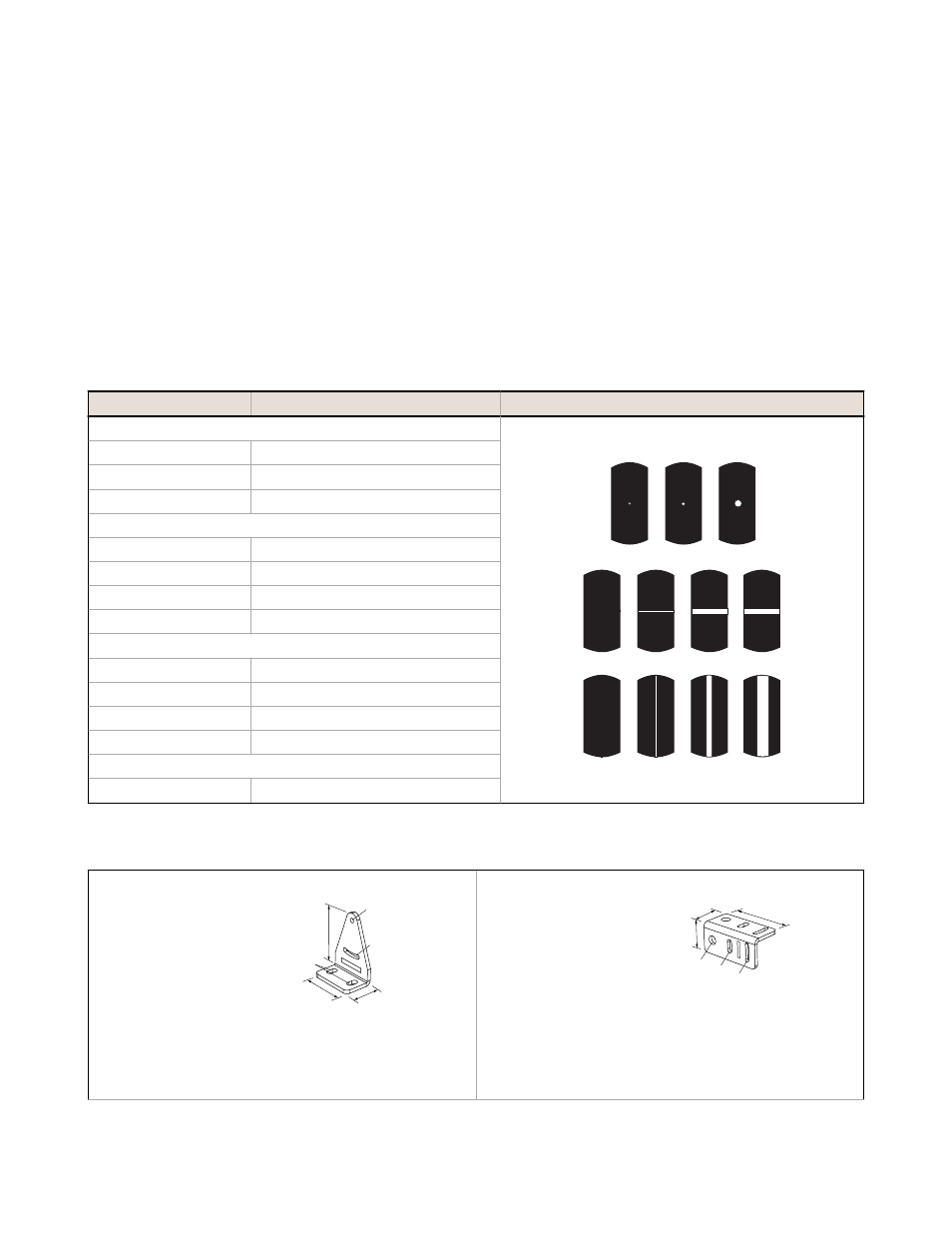

Apertures

Opposed mode MINI-BEAM sensors may be fitted with apertures which narrow or shape the effective beam of the sensor

to more closely match the size or profile of the object to be sensed. A common example is the use of “line” or “slit” type

aperture when wire or thread is be sensed. Each model contains 20 apertures.

Model

Description

Circular

AP31-020

0.5 mm dia.

AP31-040

1.0 mm dia.

AP31-100

2.5 mm dia.

Horizontal Slot

AP31-020H

0.5 x 6.4 mm

AP31-040H

1.0 x 6.4 mm

AP31-100H

2.5 x 6.4 mm

AP31-200H

5.1 x 6.4 mm

Vertical Slot

AP31-020V

0.5 x 12.7 mm

AP31-040V

1.0 x 12.7 mm

AP31-100V

2.5 x 12.7 mm

AP31-200V

5.1 x 12.7 mm

Kit

AP31-DVHX2

2 of each aperture

Brackets

SMB312S

•

Stainless steel 2-

axis, side-mount

bracket

A = 4.3 x 7.5, B = diam. 3,

C = 3 x 15.3

SMB312B

•

Stainless steel 2-

axis, bottom-mount

bracket

•

Includes mounting

foot

A = diam. 6.9, B = 4.3 x

10.5, C = 3.1 x 15.2

MINI-BEAM SM31E/R Opposed Mode Sensors

P/N 03560 Rev. D
