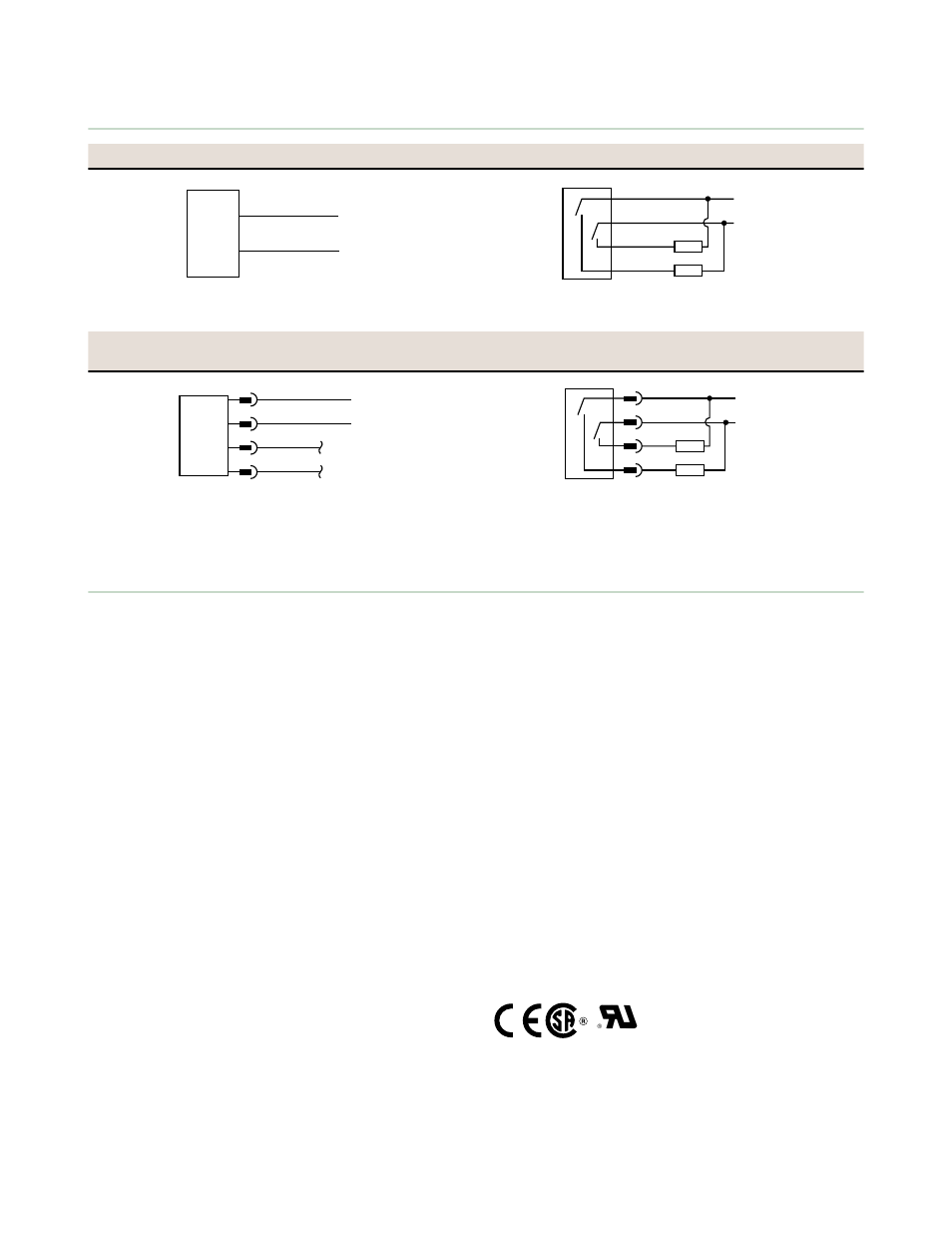

Wiring Diagrams

Emitters with Attached Cable

All Other Models with Attached Cable

–

10-30V dc

–

Load

10-30V dc

Emitters with Quick Disconnect (4-pin Euro-Style)

All Other Models with Quick Disconnect (4-pin Euro-

Style)

–

10-30V dc

–

Load

10-30V dc

The output type for all models is Bipolar NPN/PNP; load 150 mA max., each output.

Specifications

Supply Voltage and Current

10 to 30 V dc (10% maximum ripple) at less than 25 mA (exclusive of

load)

Supply Protection Circuitry

Protected against reverse polarity and transient voltages

Output Configuration

Bipolar: One current sourcing (PNP) and one current sinking (NPN)

open-collector transistor

Output Rating

150 mA maximum each output at 25 °C, derated to 100 mA at 70 °C

(derate ≈1 mA per °C)
Off-state leakage current: < 1 microamp
Output saturation voltage (PNP output): < 1 volt at 10 mA and < 2

volts at 150 mA
Output saturation voltage (NPN output): < 200 millivolts at 10 mA and

< 1 volt at 150 mA

Output Protection Circuitry

Protected against false pulse on power-up and continuous overload or

short-circuit of outputs

Output Response Time

Sensors will respond to either a “light” or a “dark” signal of 1

millisecond or longer duration, 500 Hz max. 0.3 millisecond response

modification is available. See note below.
(100 millisecond delay on power-up; outputs do not conduct during this

time.)
To order dc MINI-BEAMs with 0.3 millisecond on/off response, add the

suffix “MHS” to the model numbers (e.g, SM31EMHS & SM31RMHS).

This modification reduces sensing range (and excess gain).

Adjustments

LIGHT/DARK OPERATE select switch, and 15-turn slotted brass screw

GAIN (sensitivity) adjustment potentiometer (clutched at both ends of

travel). Both controls are located on rear panel of sensor and protected

by a gasketed, clear acrylic cover.

Indicators

Exclusive, patented Alignment Indicating Device system (AID

™

, US

patent #4356393) lights a rear-panel mounted red LED indicator

whenever the sensor sees a “light” condition, with a superimposed

pulse rate proportional to the light signal strength (the stronger the

signal, the faster the pulse rate).

Construction

Reinforced thermoplastic polyester housing, totally encapsulated, o-

ring sealing, acrylic lenses, and stainless steel screws.

Environmental Rating

Meets NEMA standards 1, 2, 3, 3S, 4, 4X, 6, 12, and 13; IEC IP67

Connections

PVC-jacketed 4-conductor 2 m (6.5 ft) or 9 m (30 ft) cables, or 4-pin

Euro-style quick disconnect (QD) fitting are available. QD cables are

ordered separately.

Operating Temperature

Temperature: −20 °C to +70 °C (−4 °F to +158 °F)
Maximum relative humidity: 90% at 50 °C (non-condensing)

Application Notes

The NPN (current sinking) output of dc MINI-BEAM sensors is directly

compatible as an input to Banner logic modules, including all non-

amplified MAXI-AMP and MICRO-AMP modules. MINI-BEAMs are TTL

compatible.

Certifications

MINI-BEAM SM31E/R Opposed Mode Sensors

P/N 03560 Rev. D
