MINI-BEAM Model Modifications
Model Suffix Modification Description Example of Model Number
W/30 9 meter (30 ft) cable
All MINI-BEAM sensors may be ordered with an integral 9 m
(30 ft) cable in place of the standard 2 m (6.5 ft) cable
SM31E W/30
MHS
Modified for High
Speed
Standard dc MINI-BEAM sensors with 1 millisecond output
response may be modified for 0.3 millisecond (300 μs)
response.
NOTE: Faster response comes at the expense of lower
excess gain. Also, the operating temperature range becomes
−20 °C to +50 °C (−4 °F to +122 °F)
SM31EMHS
NOTE: Emitter and receiver
must both have MHS
modification
QDP
Pigtail Quick
Disconnect
All MINI-BEAMs may be built with a 150 mm (6 inch) long
integral cable terminated with the appropriate QD connector. SM31EQDP

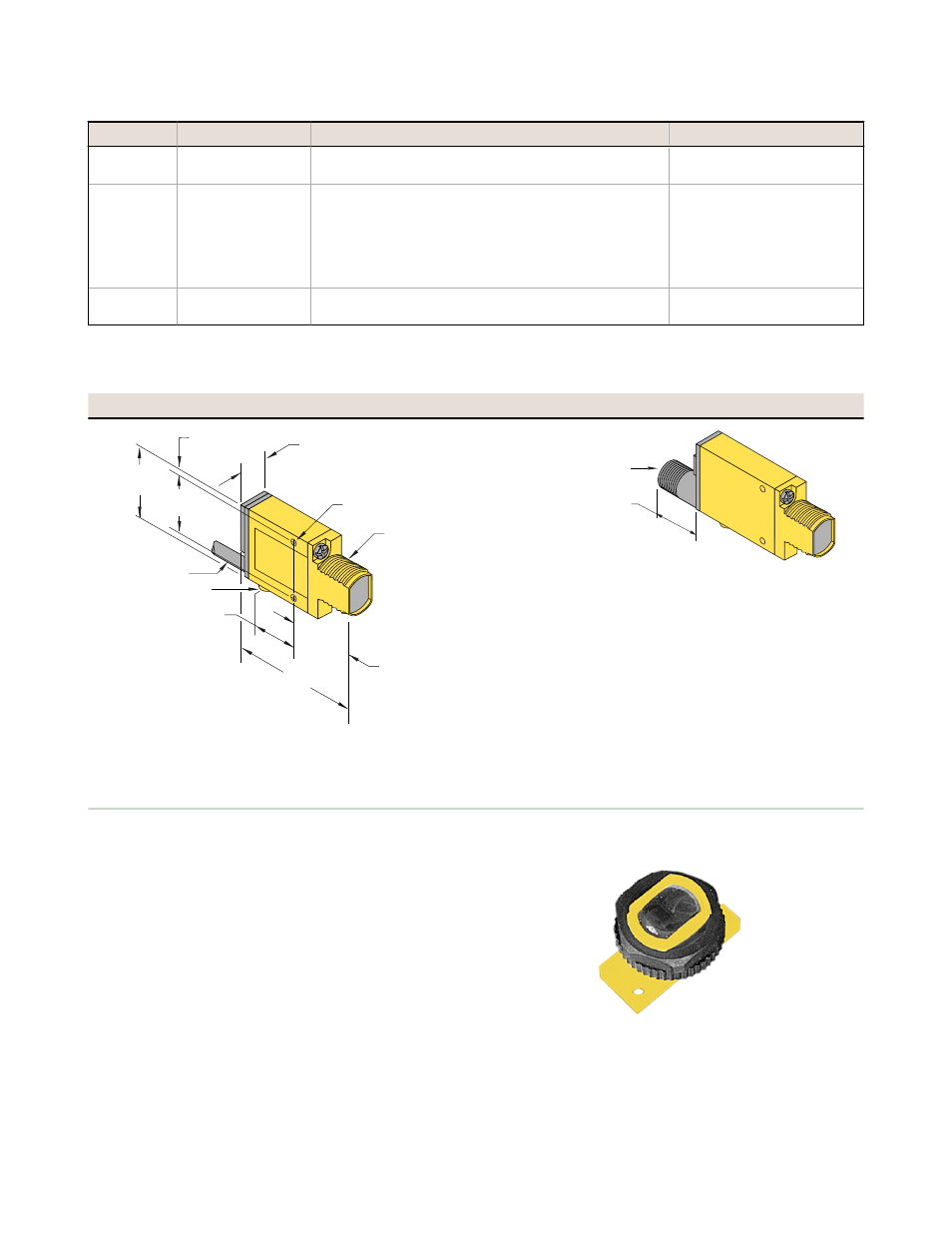

Dimensions
MINI-BEAM with Integral Cable MINI-BEAM with Quick Disconnect
3.2 mm (0.13”)
12.2 mm (0.48”)
3 mm dia Clearance (2)
M18 Ч 1 Ч 15 mm Thread
(Mounting nut supplied)
27.4 mm (1.08”)
53.3 mm (2.10”)
19.1 mm (0.75”)
Mounting peg
(6.3 mm dia × 2.5 mm)
2 m (6.5’) Cable
30.7 mm
(1.21”)
24.1 mm
(0.95”)
20.0 mm
(0.79”)
12 mm Thread
Quick-disconnect
Accessories
Replacement Lens Assemblies
UC-300E
• Replacement lens for the E/R models
UC-300EL
• Replacement lens for the EL/RL models
• Or extends the range of the E/R models
MINI-BEAM SM31E/R Opposed Mode Sensors
