Q45BB6LL Series – Laser Retroreflective Sensors
P/N 38244 rev. B
7
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

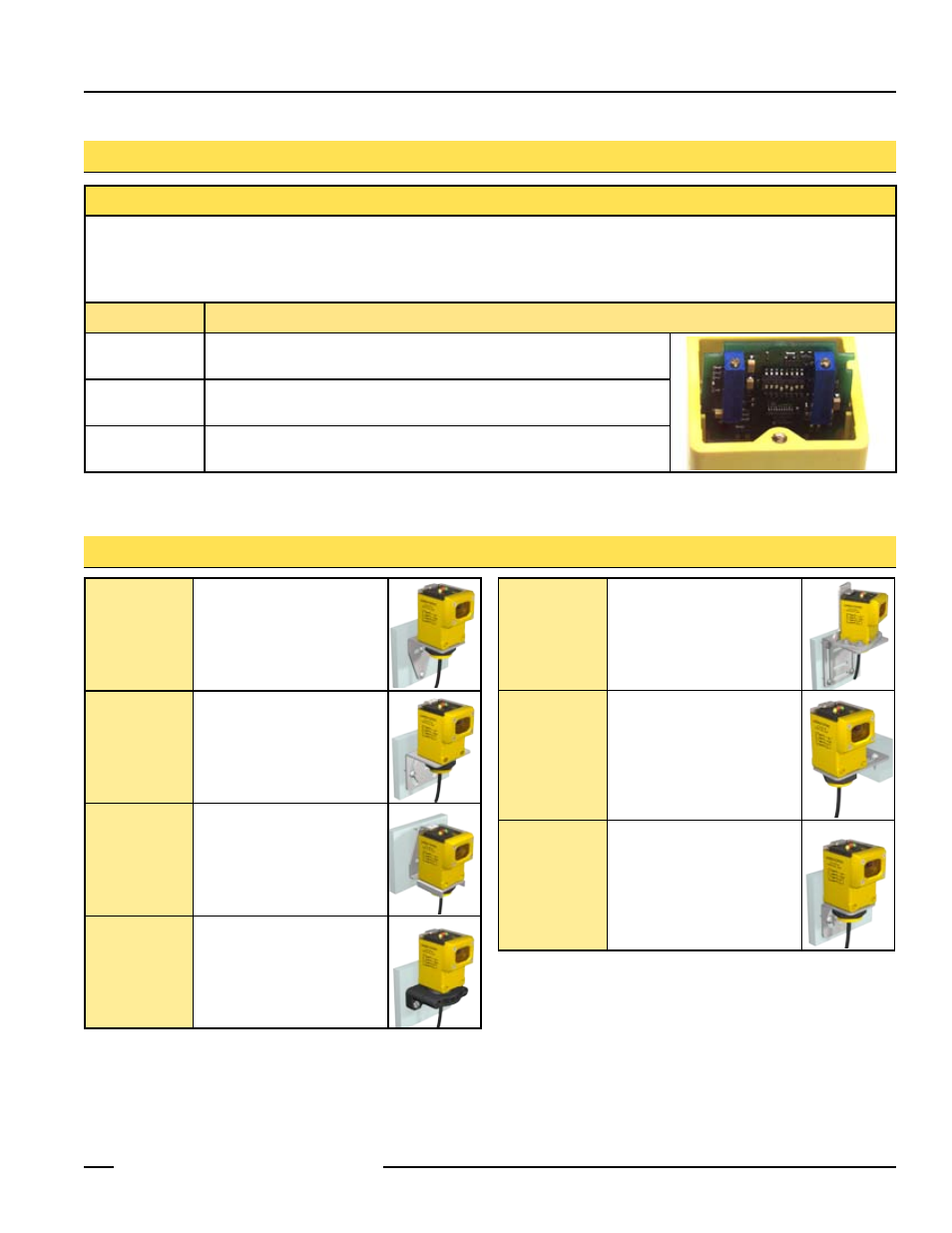

SMB30A
• Right-angle mounting bracket
with curved slot for versatile
orientation
• 12-ga. stainless steel
• Clearance for M6 (¼")
hardware
SMB30MM
• 30 mm bracket with curved
mounting slots for versatile
orientation
• 12-ga. stainless steel
• Clearance for M6 (¼")
hardware
SMB30Q
• 30 mm right-angle flanged
mounting bracket
• Stainless steel
SMB30SC
• 30 mm swivel bracket
• Black reinforced thermoplastic
polyester
• Includes stainless steel
mounting and swivel locking
hardware
Mounting Brackets
SMB30UR
• 2-piece universal swivel
bracket for limit-switch style
sensors
• 300 series stainless steel
• Includes stainless steel swivel
locking hardware
SMBAMS30P
• Flat SMBAMS series bracket
with 30 mm hole for mounting
sensors
• 12-ga. 300 series stainless
steel
• Articulation slots for 90+° of
rotation
SMBAMS30RA
• Right-angle SMBAMS series
bracket with 30 mm hole for
mounting sensors
• 12-ga. 300 series stainless
steel
• Articulation slots for 90+° of
rotation
Accessories, continued
Output Timing Logic and Signal Strength Display Modules
Q45 sensors easily accept the addition of output timing logic and signal strength display functions. Display modules have a seven-element display
which gives a more precise indication of excess gain than does the AID™ system LED that is standard on Q45 sensors. The modules listed below
may be used with all Q45BB6 Series sensors. See the data sheet packed with the module for more information.
Model Logic and/or Display Function
45LM58 Programmable output timing logic
45LM58D Programmable output timing logic plus signal strength display
45LMD Signal strength display only (no timing function)
