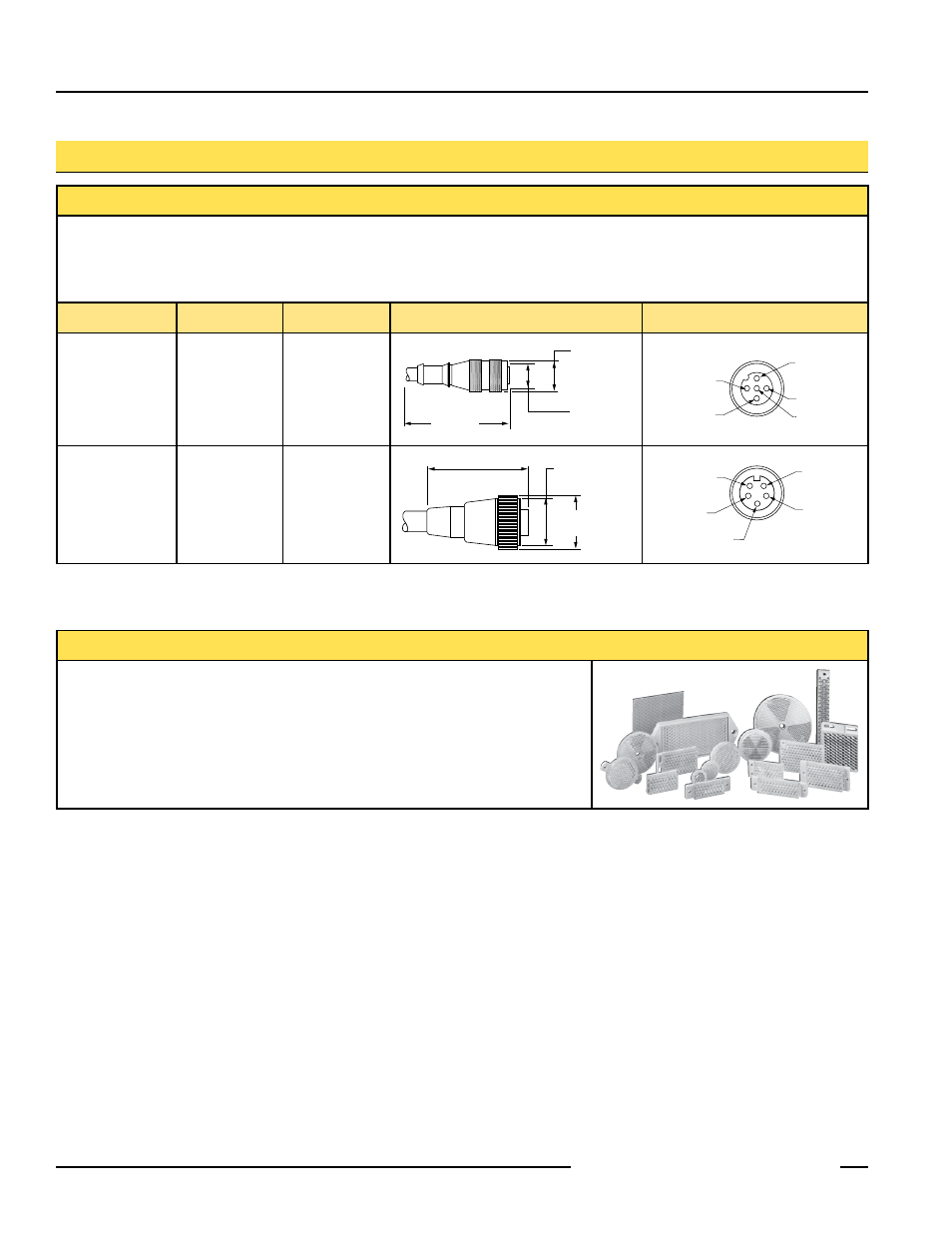

Accessories
Contact factory for right-angle connectors.
Quick-Disconnect (QD) Cables
Cable: PVC jacket; polyurethane connector body; nylon coupling nut (Mini), chrome-plated brass coupling nut (Euro)
Conductors: 18 AWG (Mini), 22 or 20 AWG (Euro) high-flex stranded, PVC insulation, gold plated contacts
Temperature: –40° to +80° C (–40° to +176° F) (Mini); –40° to +90° (–40° to +194° F) (Euro)
Voltage Rating: 250V ac/300V dc
Style Model Length Dimensions Pinout
5-Pin
Euro-Style
Straight
MQDC1-506
MQDC1-515
MQDC1-530 2 m (6.5')
5 m (15')
9 m (30')
5-Pin
Mini-Style
Straight
MBCC-506
MBCC-51
MBCC-530 2 m (6.5')
4 m (12')
9 m (30')
M12 x 1
ø15 mm
(0.6")
44 mm max.
(1.7")
White Wire
Blue Wire
Black Wire
Brown Wire
Gray Wire
7/8-16UN-2B
ø28 mm max.
(1.1")
61 mm max.
(2.4") Black Wire
Blue Wire Brown Wire
Yellow Wire
White Wire
Retroreflective Targets
Banner offers a wide selection of high-quality retroreflective targets. See the Accessories
section of your current Banner Photoelectric Sensors catalog for complete information.
NOTE: Polarized sensors require corner cube type retroreflective targets only. Non-polarized
sensors may use any retroreflective target.
