Q45BB6LL Series – Laser Retroreflective Sensors
P/N 38244 rev. B
5
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

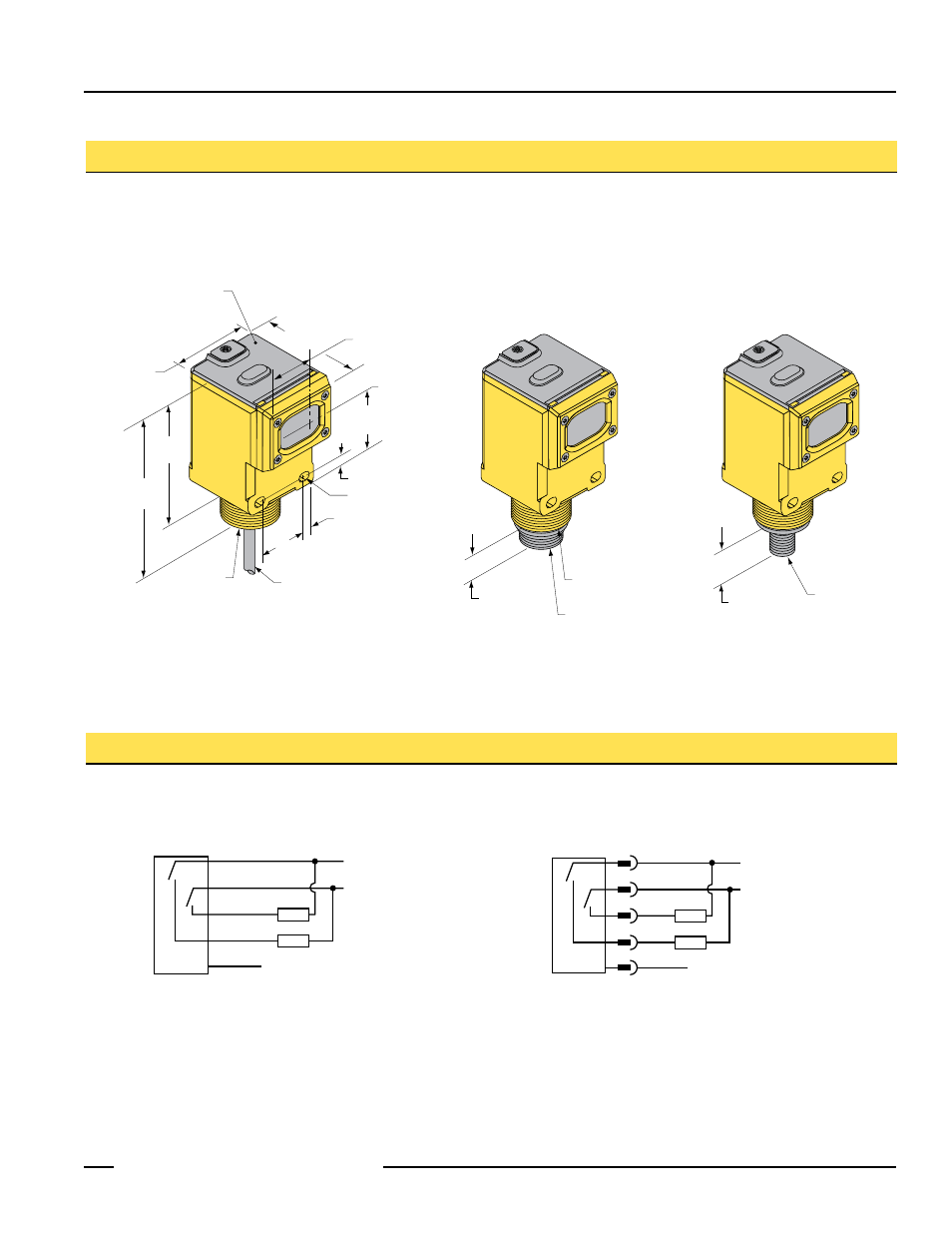

Dimensions
Hookups
Cabled Models 5-Pin Mini-Style
Quick-Disconnect Models
5-Pin Euro-Style
Quick-Disconnect Models
External Thread
M30 X 1.5
Mini-style QD Connector
14 mm (0.6")
15 mm (0.6")
Euro-style
QD Connector
54.1 mm
(2.13")
44.5 mm
(1.75")
69.0 mm
(2.72")
87.6 mm
(3.45")
Internal Thread
(1/2–14NPSM)
External Thread
M30 X 1.5
30.0 mm
(1.18")
ø 6.1 (0.24")
2m (6.5') Cable
7.1 mm
(0.28")
4.5 mm (#10) Screw
Clearance (2)
50.8 mm
(2.00")
6.4 mm (0.25")
Lens Centerline
Emitter Axis
28.6 mm (1.13")
Transparent Cover (Gasketed)
View: Sensing Status
Output Load Status
Power
Open to Access:
Sensitivity (Gain) Adjustment
Timing Adjustments
Light/Dark Operate Switch
bn
wh
bu
+
–
bk
Load
Load
10-30V dc
Beam Inhibit: Connect to +V
ye
bn
wh
bu
+
–
bk
ye or gy
Load
Load
10-30V dc
Beam Inhibit: Connect to +V
Cabled Models Mini- or Euro-Style
Quick-Disconnect Models
