Banner D12 Series - Manual (Page 12)

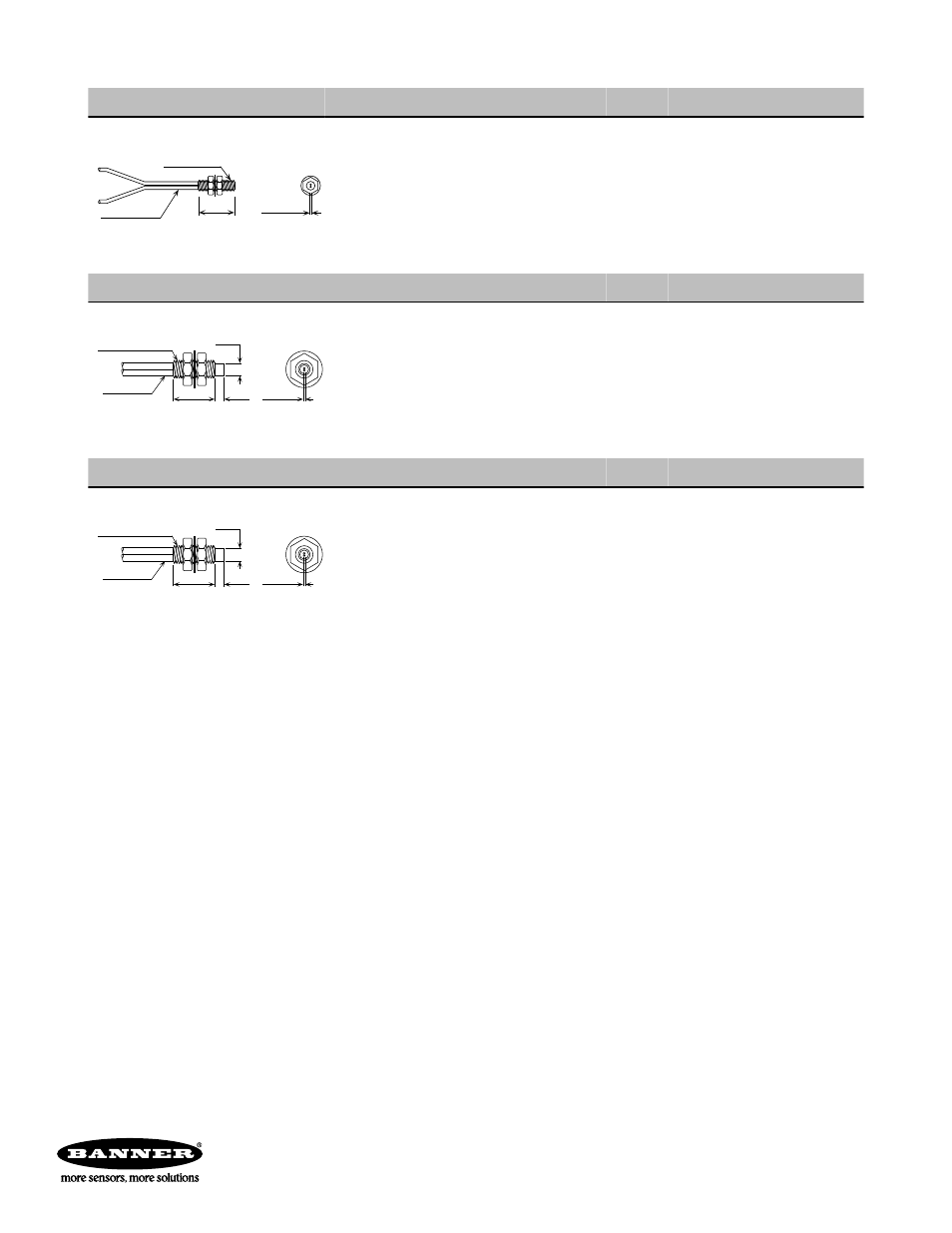

PBT26U Features Sensors Range
2X ø 0.5 mm polyethylene
M3 x 0.5
11.0 mm
(.43”) (.02”)
nickel plated brass
• Fiber diameter: 0.5 mm
• Bifurcated fiber
• 12 mm bend radius
• Thread
DF-G1 80 mm
D10D 150 mm
D10B 38 mm
D10A 25 mm
D12E 25 mm
PBT46U Features Sensors Range
14.0 mm
M6 x 0.75 ø 4.0 mm
3.0 mm
(.16”)
(.12”) (.55”)
polyethylene
nickel plated brass
Fiber
Diameter
• Fiber diameter: 1.0 mm
• Bifurcated fiber
• 25 mm bend radius
• Thread
DF-G1 220 mm
D10D 300 mm
D10B 100 mm
D10A 85 mm
D12E 95 mm
PBT66U Features Sensors Range
14.0 mm
M6 x 0.75 ø 4.0 mm
3.0 mm
(.16”)
(.12”) (.55”)
polyethylene
nickel plated brass
Fiber
Diameter
• Fiber diameter: 1.5 mm
• Bifurcated fiber
• 38 mm bend radius
• Thread
• Long range
DF-G1 310 mm
D10D 475 mm
D10B 200 mm
D10A 170 mm
D12E 190 mm
Banner Engineering Corp Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of
shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture which, at the time it is returned
to the factory, is found to have been defective during the warranty period. This warranty does not cover damage or liability for misuse,
abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (IN-
CLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND
WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL
BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPEN-
SES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM ANY
PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WAR-
RANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or
liabilities relating to any product previously manufactured by Banner Engineering Corp.
D12 Expert Series - TEACH-Mode Fiber Optic Sensors
www.bannerengineering.com - tel: 763-544-3164
