Banner D12 Series - Manual (Page 11)

Plastic Fiber - Opposed Mode

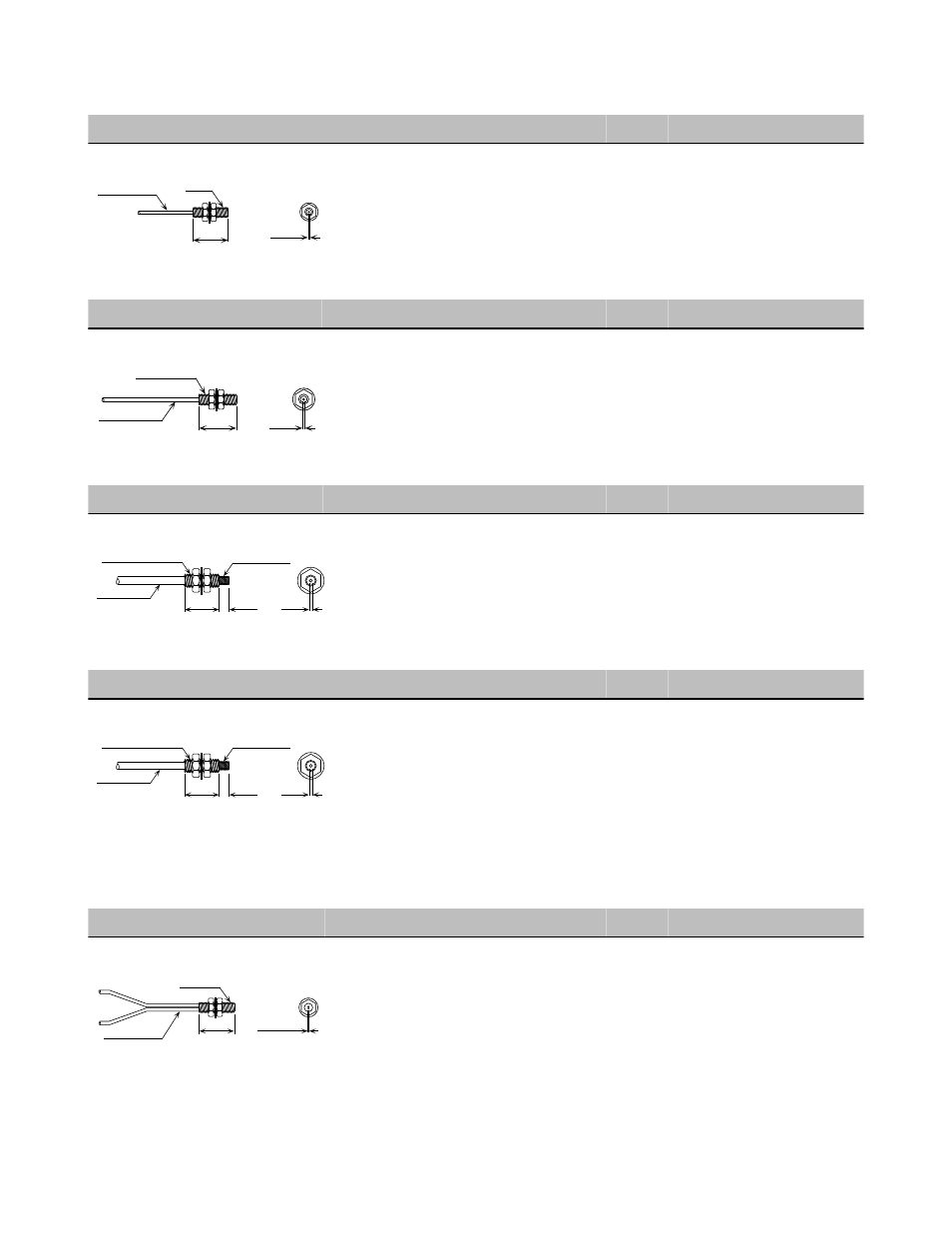

PIT16U Features Sensors Range
M2.5 x 0.45
10.0 mm ø 0.25 mm
polyethylene
(.39”) (.010”)
stainless steel
• Fiber diameter: 0.25 mm
• Individual fiber pair
• 8 mm bend radius
• Thread
DF-G1 58 mm
D10D 90 mm
D10B 20 mm
D10A 15 mm
D12E 18 mm
PIT26U Features Sensors Range
M3 x 0.5
11.0 mm ø 0.5 mm
polyethylene
(.43”) (.02”)
nickel plated brass
• Fiber diameter: 0.5 mm
• Individual fiber pair
• 12 mm bend radius
• Thread
DF-G1 220 mm
D10D 400 mm
D10B 95 mm
D10A 75 mm
D12E 84 mm
PIT46U Features Sensors Range
polyethylene
M4 x 0.7
3.0 mm Fiber
M2.5 x 0.45
(.12”) Diameter
nickel plated brass
11.0 mm
(.43”)
• Fiber diameter: 1.0 mm
• Individual fiber pair
• 25 mm bend radius
• Thread
DF-G1 820 mm
D10D 1200 mm
D10B 320 mm
D10A 300 mm
D12E 315 mm
PIT66U Features Sensors Range
polyethylene
M4 x 0.7
3.0 mm Fiber
M2.5 x 0.45
(.12”) Diameter
nickel plated brass
11.0 mm
(.43”)
• Fiber diameter: 1.5 mm
• Individual fiber pair
• 38 mm bend radius
• Thread
• Long range
DF-G1 1320 mm
D10D 2400 mm
D10B 600 mm
D10A 525 mm
D12E 660 mm
Plastic Fiber - Diffuse Mode
Based on a 90% reflectance white test card.
PBT16U Features Sensors Range
2X ø 0.25 mm
polyethylene
M3 x 0.5
11.0 mm
(.43”) (.010”)
stainless steel
• Fiber diameter: 0.25 mm
• Bifurcated fiber
• 8 mm bend radius
• Thread
DF-G1 12 mm
D10D 30 mm
D10B 7 mm
D10A 5 mm
D12E 3.8 mm
