Q45VR3 Series
page 8
Banner Engineering Corp. • Minneapolis, U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

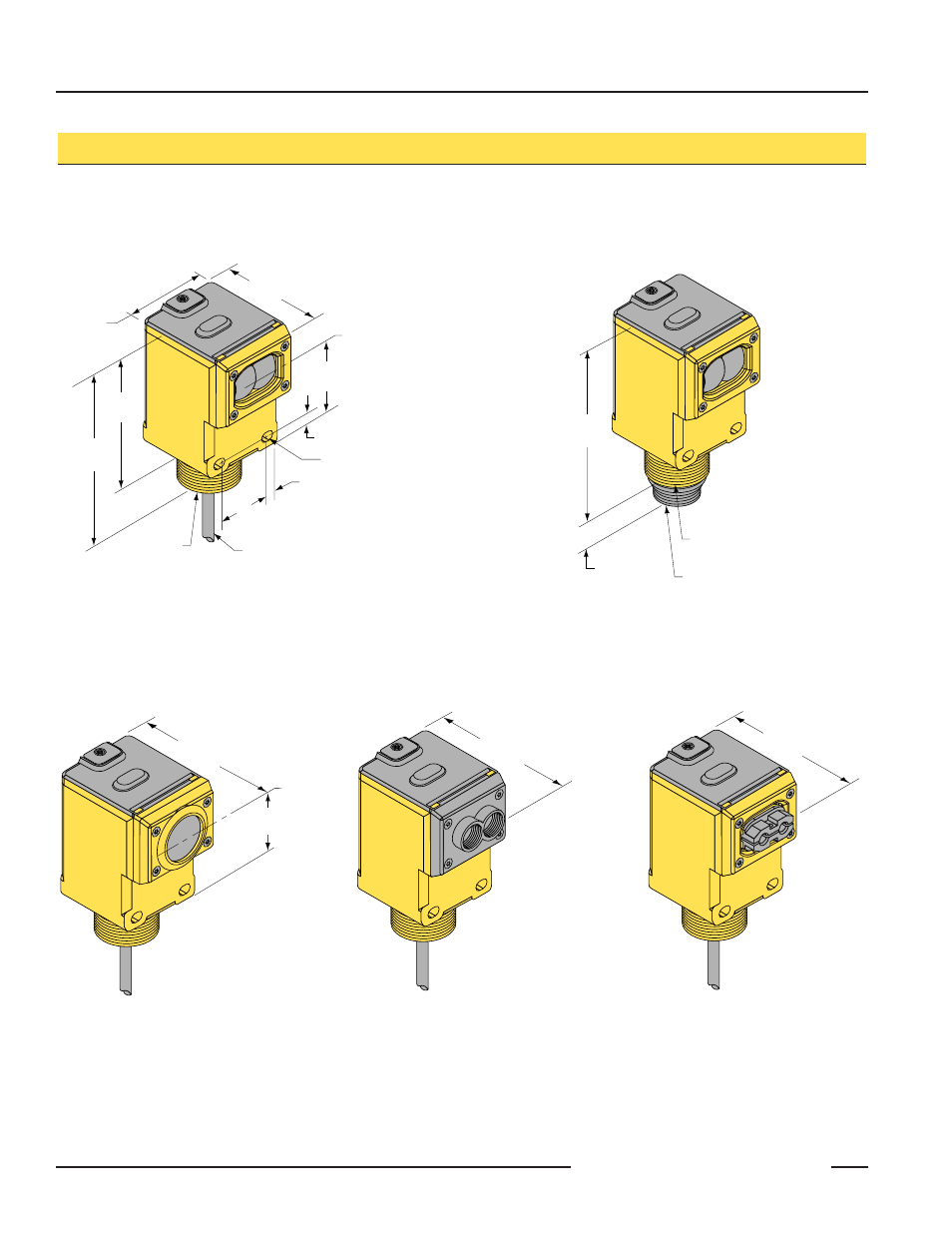

Q45VR3 Series Dimensions
54.1 mm*
(2.13")
44.5 mm
(1.75")
69.0 mm
(2.72")
87.6 mm
(3.45")
Internal Thread
(1/2–14NPSM)
External Thread
M30 X 1.5
30.0 mm
(1.18")
ø 6.1 (0.24")
2m (6.5') Cable
7.1 mm
(0.28")
4.5 mm (#10) Screw
Clearance (2)
50.8 mm
(2.00")
6.4 mm (0.25")
Lens Centerline
Mounting Nut is Supplied
*57.9 mm (2.28") for LP models
Q45VR3 Series Sensors – Opposed, Retro, and Diffuse Sensing Modes
(model suffix E, R, D, DL, DX, LP & LV)
Convergent Sensing Mode
(model suffix CV & CV4)
Glass Fiber Optic
(model suffix F and FV)
Cabled
87.6 mm
(3.45")
External Thread
M30 X 1.5
Mini-style QD Connector
14 mm (0.6")
61.7 mm
(2.43")
50.8 mm
(2.00")
Lens
Centerline
60.5 mm
(2.38")
59.8 mm
(2.35")
Quick-Disconnect
Plastic Fiber Optic
(model suffix FP)
