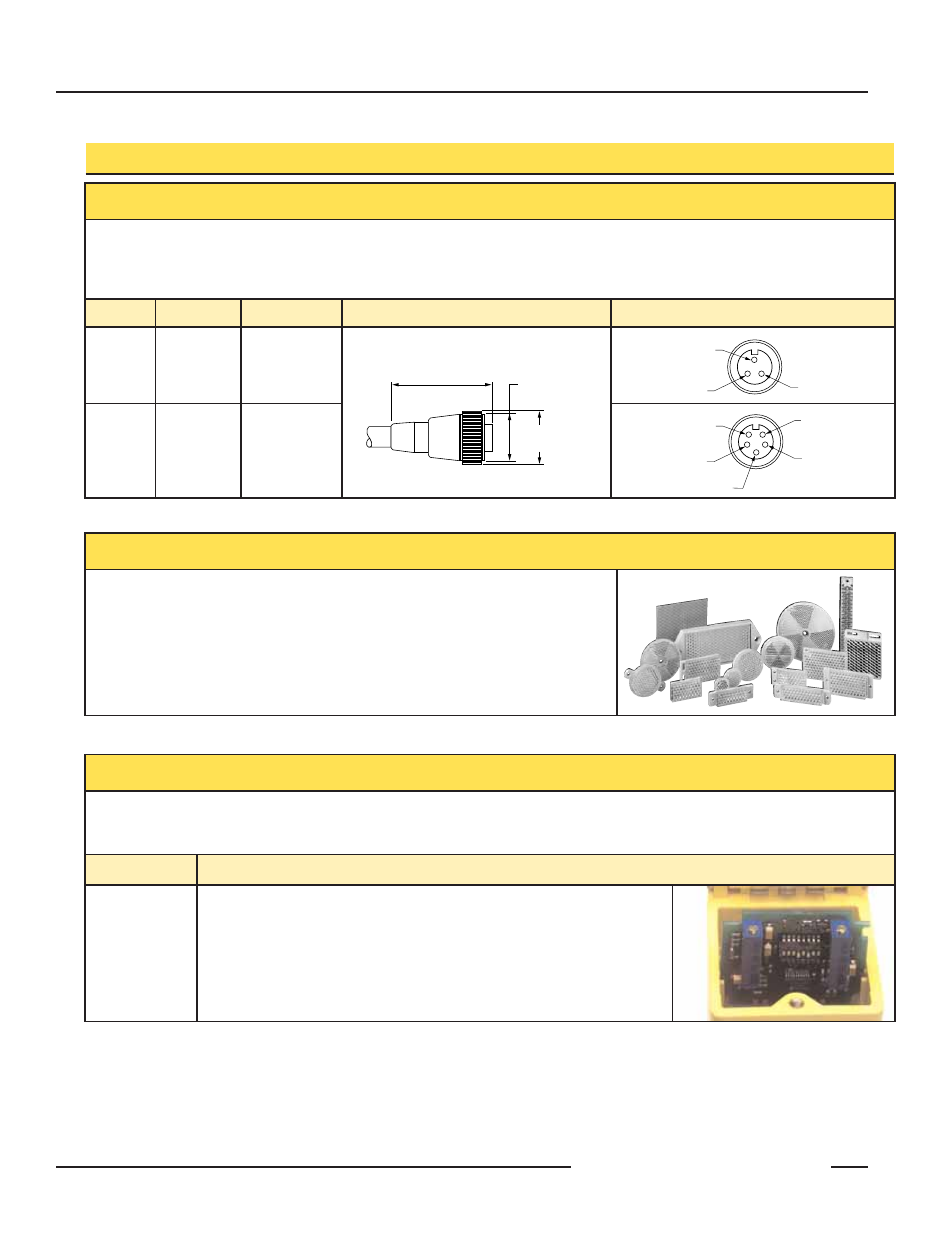

Mini-Style Quick-Disconnect Cables
Cable: PVC jacket, polyurethane connector body, nylon coupling nut
Conductors: 18 AWG high-flex stranded, PVC insulation, gold plated contacts
Temperature: -40° to +80°C (-40 to +176°F)
Voltage Rating: 250V ac/300V dc
Black Wire
Blue Wire
Brown Wire
Yellow Wire
White Wire
3-Pin
Female
Pin-out
Straight
MBCC-306
MBCC-312
MBCC-330
2 m (6.5')
4 m (12')
9 m (30')
7/8-16UN-2B
ø28 mm max.
(1.1")
61 mm max.
(2.4")
5-Pin
Female
Pin-out
Straight
Style
MBCC-506
MBCC-512
MBCC-530
Brown Wire
Blue Wire
Black Wire
2 m (6.5')
4 m (12')
9 m (30')
Model
Length
Dimensions
Pin-Out (Female View)
Accessories
Retroreflective Targets
Banner offers a wide selection of high-qualitity retroreflective targets. See the Accessories
section of your current Banner Photoelectric Sensors catalog for complete information.
NOTE: Polarized sensors require corner cube type retroreflective targets only. Non-polarized
sensors may use any retroreflective target.
45LM58
45LM58D
45LMD
Programmable output timing logic
Programmable output timing logic plus signal strength display
Signal strength display only (no timing function)
Q45 sensors easily accept the addition of output timing logic and signal strength display functions. Display modules have a seven-element dis-
play which gives a “finer” indication of excess gain than does the AID™ system LED that is standard on Q45 sensors. The modules listed
below may be used with all Q45VR3 sensors. See the data sheet packed with the module for more information.
Model
Logic and/or Display Function
Output Timing Logic and Signal Strength Display Modules
