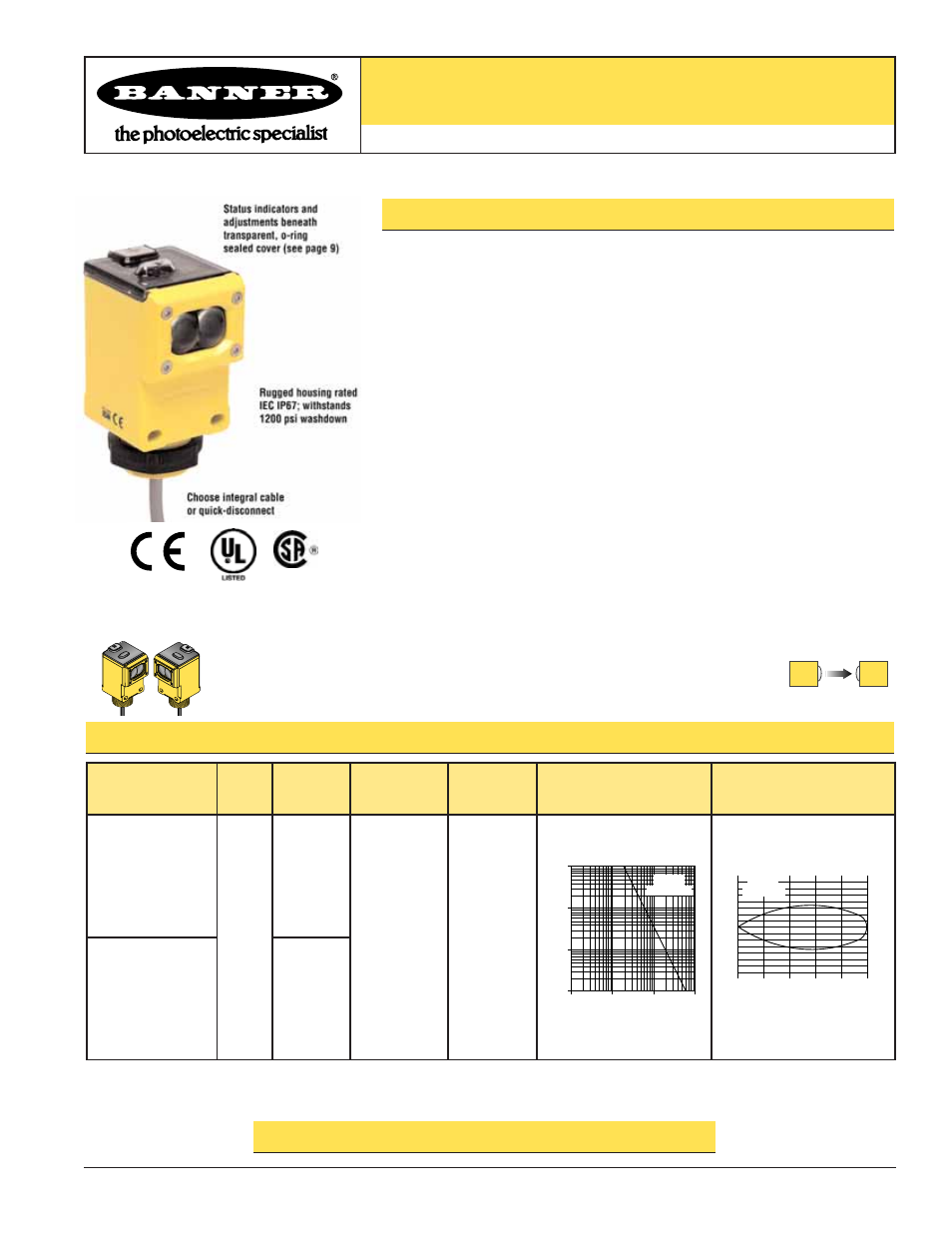

Q45VR3 Series Sensors
Universal voltage photoelectric sensors with electromechanical relay output
Printed in USA
12/12
P/N 53997 rev. C
* 9 m (30') cables are available by adding suffix “W/30” to the model number of any cabled sensor (e.g., Q453E W/30)
A model with a QD connector requires a mating cable; see page 10.
Q45VR3 Series Features
•
Advanced one-piece photoelectric sensors with outstanding optical perform-
ance and extremely rugged design
•
Universal supply voltage: 12 to 250V dc or 24 to 250V ac
•
Electromechanical relay for economical, high-capacity switching and immunity
to electrical noise
•
Full line includes opposed, diffuse, retroreflective, convergent, and glass and
plastic fiber optic sensing modes
•
Switchable light/dark operate
•
Versatile plug-in modules available for output timing logic and/or signal
strength display
•
Highly visible Power, Signal (AID™ System), and Output indicator LEDs
•
Choice of prewired 2 m (6.5') or 9 m (30') unterminated cable or Mini-style
quick-disconnect fitting
•
Versatile mounting options
•
Designed to withstand 1200 psi washdown; exceeds its NEMA 6P and IEC IP67
rating
IMPORTANT: SEE SAFETY USE WARNING ON BACK PAGE
Q45VR3 Series Opposed-Mode Emitter (E) and Receiver (R) Models
Q453E Emitter
Q45VR3R Receiver
Models
Range
Cable*
Supply
Voltage
Output
Type
Excess Gain
60 m
(200')
2-wire
2m (6.5')
5-wire
2m (6.5')
Universal
12 - 250V dc
or
24 - 250V ac
SPDT
Electro-
mechanical
Relay
Because of their extremely high excess gain, these opposed-mode sensors are an
excellent option for sensing in contaminated or dirty areas, and are also the best
choice for long-range sensing.
Infrared, 880 nm
Q453EQ Emitter
Q45VR3RQ Receiver
3-Pin Mini-
style QD
5-Pin Mini-
style QD
Beam Pattern
1
10
100
1.0 m
3.3 ft
10 m
33 ft
100 m
330 ft
0.1 m
0.33 ft
E
X
C
E
S
S
G
A
I
N
DISTANCE
1000
Q45E/R
Opposed Mode
48 m
160 ft
60 m
200 ft
36 m
120 ft
24 m
80 ft
12 m
40 ft
0
0
0.5 m
1.0 m
1.5 m
0.5 m
1.0 m
1.5 m
0
20 in
40 in
60 in
20 in
40 in
60 in
DISTANCE
Q45E/R
Opposed Mode
Effective Beam: 13 mm
