5.2 Large maintenance
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
36 ￭￭￭￭￭￭￭￭
6.1246.120 Multi-Mode-Electrode pro
1 2 3
4

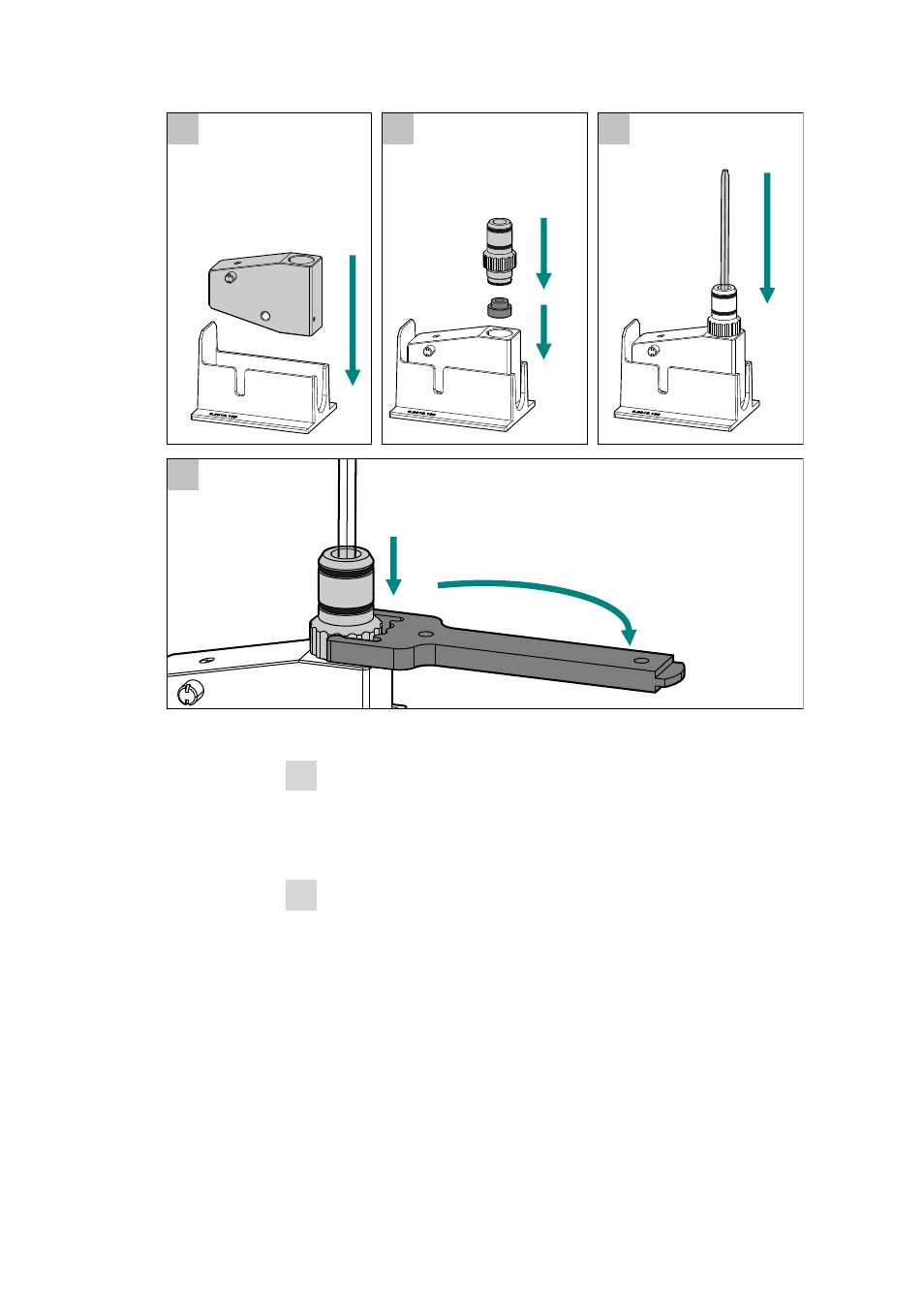

Figure 11 MME pro – Mounting the capillary
1 Placing the MME pro into the electrode stand
￭ Place the electrode stand into the drip pan.
￭ Place the MME pro into the electrode stand.
The thread for the capillary retaining screw is pointing upwards.
2 Inserting the silicone seal
￭ Insert the silicone seal. Use the capillary retaining screw to push it
into position.
￭ Place the capillary retaining screw loosely into the opening.
