2 Overview
6.1246.120 Multi-Mode-Electrode pro
￭￭￭￭￭￭￭￭ 5
2 Overview
2.1 Construction of the MME pro
4
5
6
7
9 11
8
12
13
15
1
3
14
2
1
10

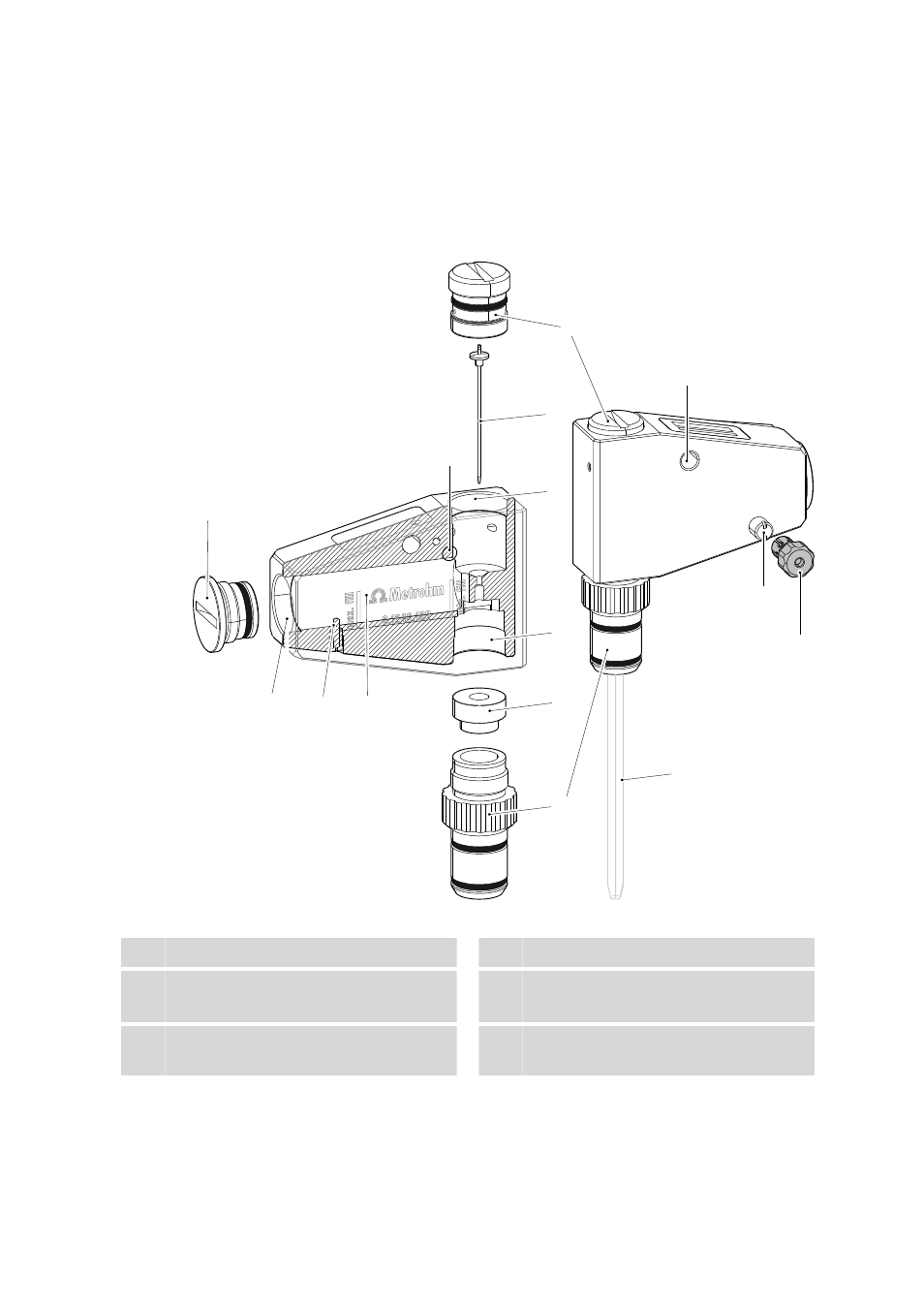

Figure 1 MME pro – Construction
1 Needle holder (6.1247.140) 2 Needle (6.1247.020)
3 Thread
For the needle holder (1-
1 ).
4 Thread
For the capillary retaining screw (1-
6 ).
5 Silicone seal (6.1247.150) 6 Capillary retaining screw (6.1247.120)
For the capillary.
